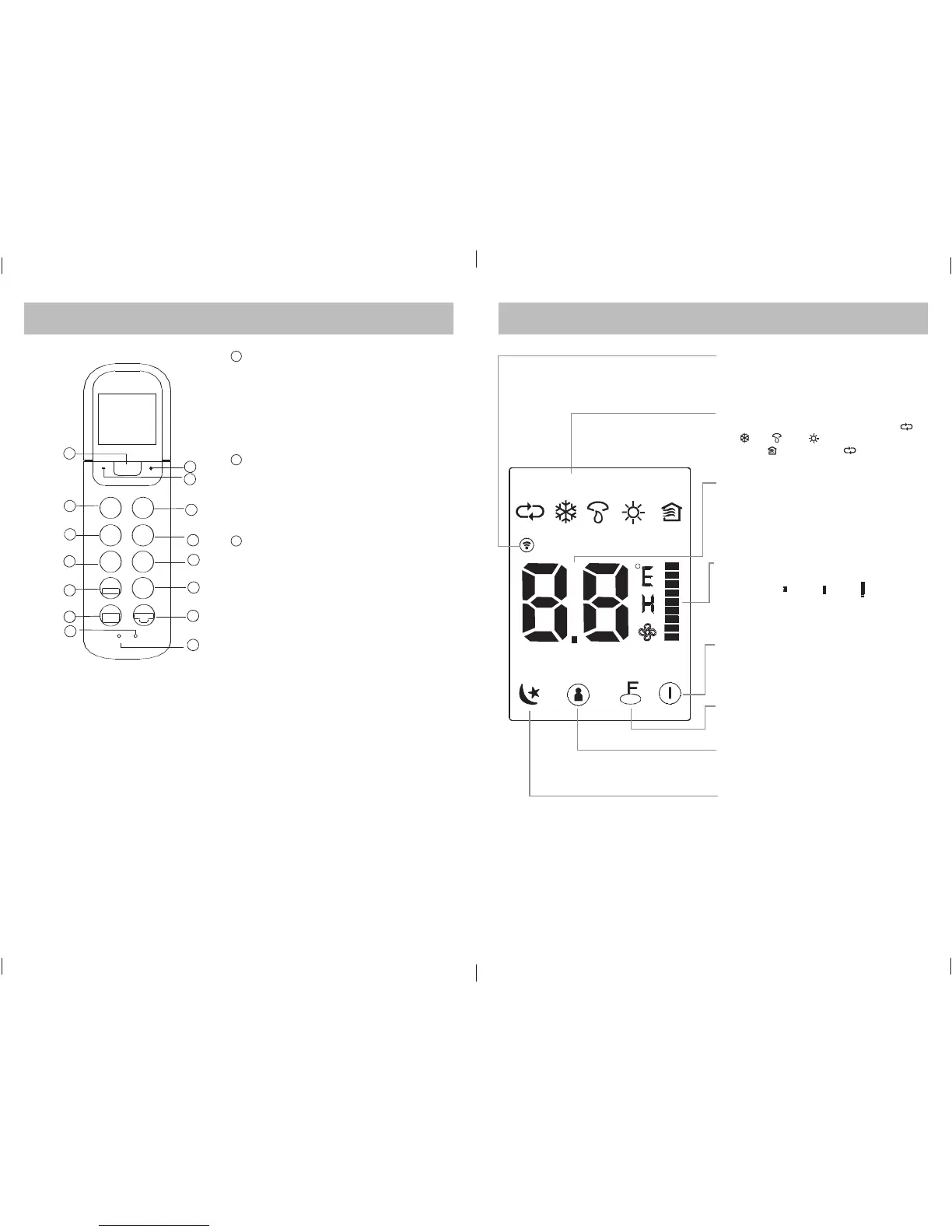

FUNCTION BUTTONS (continued) INDICATORS ON LCD
TIMER OFF Button
Press this button to initiate the auto-off time sequence.
Each press will increase the auto-timed setting in 30 minute
increments.When the setting time displays 10H, each press
will increase the auto-timed setting in 60 minute increments.
To cancel the auto-timed program, simply adjust the auto-off
time to 0:0
LED/FOLLOW ME Button
Disable/Active indoor screen Display. When pressing for
more than 2 seconds, the FOLLOW ME function will be
activated. Pressing for more than 2 seconds again will
disable it.
LOCK Button
When you press the recessed LOCK button, all current
settings are locked in and the remote controller does not
accept any operation except that of the LOCK. Press again to
cancel the LOCK mode.
NOTE:
• Button designs shown may be slightly different from
the actual one you purchased depending on individual
models.
• All the functions described above are related to the
indoor unit. If the indoor unit does not have this feature,
then nothing will happen when that button on the remote
controller is pressed.
Transmission Indicator
This transmission indicator lights when remote controller
transmits signals to the indoor unit.
Mode display
Displays the current operation mode. Including auto ( ),
cool (
), dry ( ), heat ( ) (Not applicable to cooling only
models), fan (
) and back to auto ( ).
Temp./Timer display
Displays the temperature setting (17ºC~30ºC). When you
set the operating mode to FAN, no temperature setting is
displayed. In the TIMER mode, display shows the ON and
OFF settings of the TIMER.
Fan speed display
Displays the selected fan speed, AUTO (no display) and three
fan speed levels “
” (LOW) “ ” (MED) “ ”(HIGH) can be
indicated. The fan speed is AUTO when the operating mode
is either AUTO or DRY.
ON/OFF display
Displayed by pressing the ON/OFF button once.
Press the ON/OFF button again to remove.
Lock Display
Displayed when LOCK mode is activated.
FOLLOW ME Display
Displayed when FOLLOW ME function is activated.
Sleep Display
Displayed under sleeping operation.
Press the SLEEP button again to remove.
NOTE:
All indicators shown in the fi gure are for the purpose of clear
presentation. During the actual operation only the relative
functional signs are shown on the display window.
1
2
4
5
3
9
10
8
6
7
11
12
13
14
15
TU RBO
SELF
CLE AN
SLEEP
FRESH
SHO RT
CUT
TI MER
ON
TIMER
OFF
LO CK
RESET
LE D
FO L LOW
ME
FAN
SPEED
DIRE CT
SWING
MODE
TEMP
ON/ OF F
13
14
15
auto cool dry heat fan
sleep follow me lock run
SET TEMP. T IMER ONOFF
