Lennox MCA018S4S-1P User Manual

37

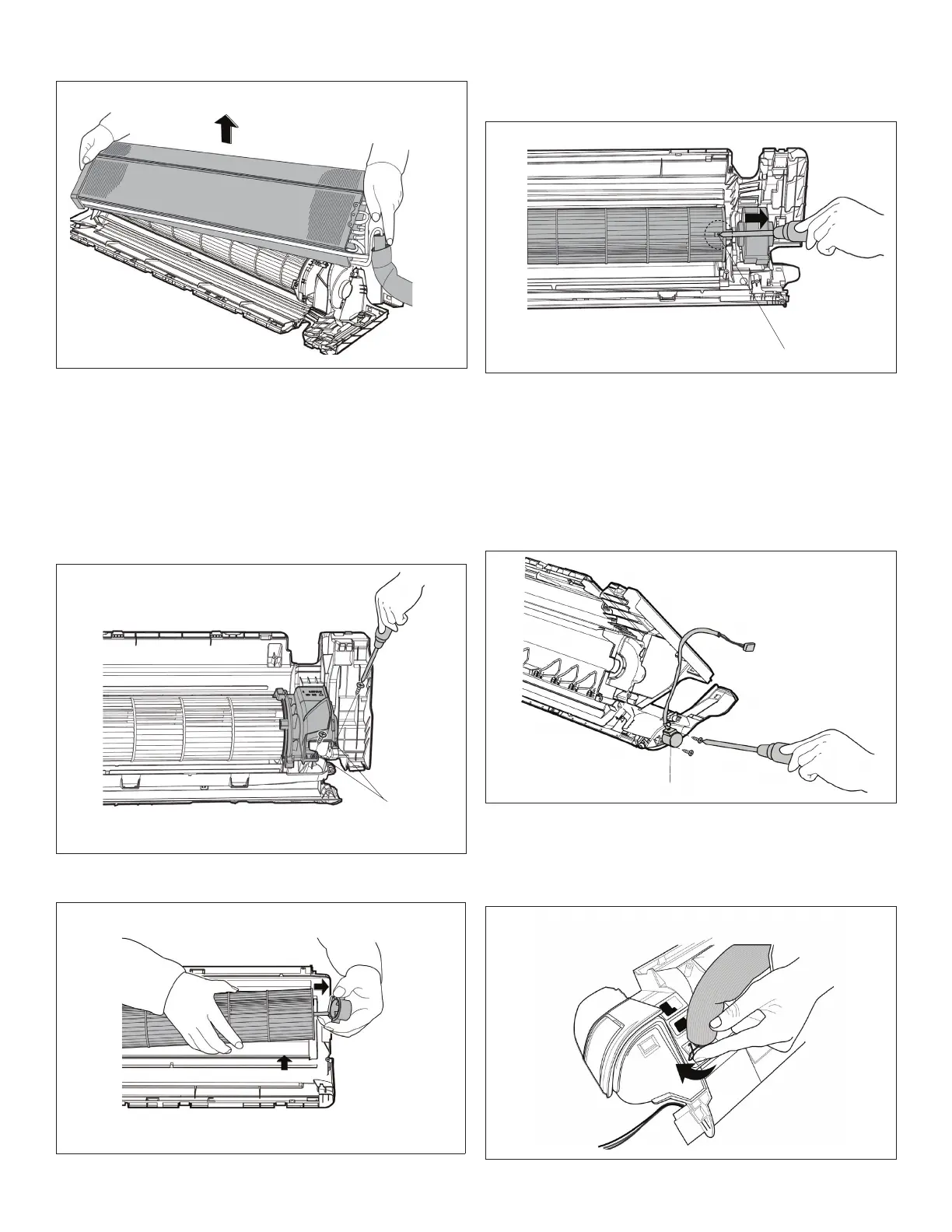

Step 5. Pullouttheevaporator.
18.1.4. Fan Motor and Fan
NOTE: Remove the front panel and electrical parts
(see “Front Panel” on page 32, “Electrical
Parts” on page 34 Electrical parts and “18.1.3.
Evaporator” on page 36) before disassembling
fan motor and fan.
Step 1. Removethetwoscrewsandremovethexing
boardofthefanmotor.
Screws
Step 2. Removethebearingsleeve.
Step 3. Removethexingscrew.
Step 4. Pulloutthefanmotorandfanassemblyfromthe
side.
Fixing Screw
18.1.5. Step Motor
NOTE: Remove the front panel and electrical parts (see
both “Front Panel” on page 32 and “Electrical
Parts” on page 34 Electrical parts) before
disassembling step motor.
Step 1. Removethetwoscrews,thenremovethe
steppingmotor.
Stepping Motor
18.1.6. Drain Hose
Step 1. Rotatethexedwireclockwiseindicatedin
imaginebelow.
