Direct Sunlight, Rain, Snow and Ice Protection
• If the outdoor unit is subjected to prolong exposure to
direct sunlight with temperatures over 100°F (38°C) a
canopy is recommended as illustrated in “Figure 19.
Outdoor Unit on Pedestal and Protective Canopy” or
“Figure 24. Dog House-Style Shelter” on page 16
IMPORTANT
The construction of a canopy or shade is necessary
because of an ambient limit control set to 122°F (50°C)
to protect the electronics. If the outdoor unit is placed in
direct sunlight it is possible that the limit may activate and
shut down the unit.
• Place unit away from overhanging roof lines which
would allow water or ice to drop on, or in front of, coil
or into unit. Construct a canopy as illustrated in “Figure
19. Outdoor Unit on Pedestal and Protective Canopy”
• The unit base should be elevated above the depth of
average snows as illustrated in “Figure 20. Outdoor
Unit on Brackets above Snow Line”
• In heavy snow areas, do not place the unit where drift-
ing will occur as illustrated in “Figure 21. Outdoor Unit
Air Flow Obstructed by Snow”
• Carefully consider how to manage defrost water dis-
posal to prevent ice from blocking walkways or creat-
ing a safety hazard near the outdoor unit as illustrated
in “Figure 22. Avoid Defrost Water Ice Hazard”
12 in
305 mm
Air Inlet
Air Outlet
24 in
610 mm
Side View
Front View
Protective canopy
Protective canopy
Pedestal
(stand)
Pedestal
(stand)

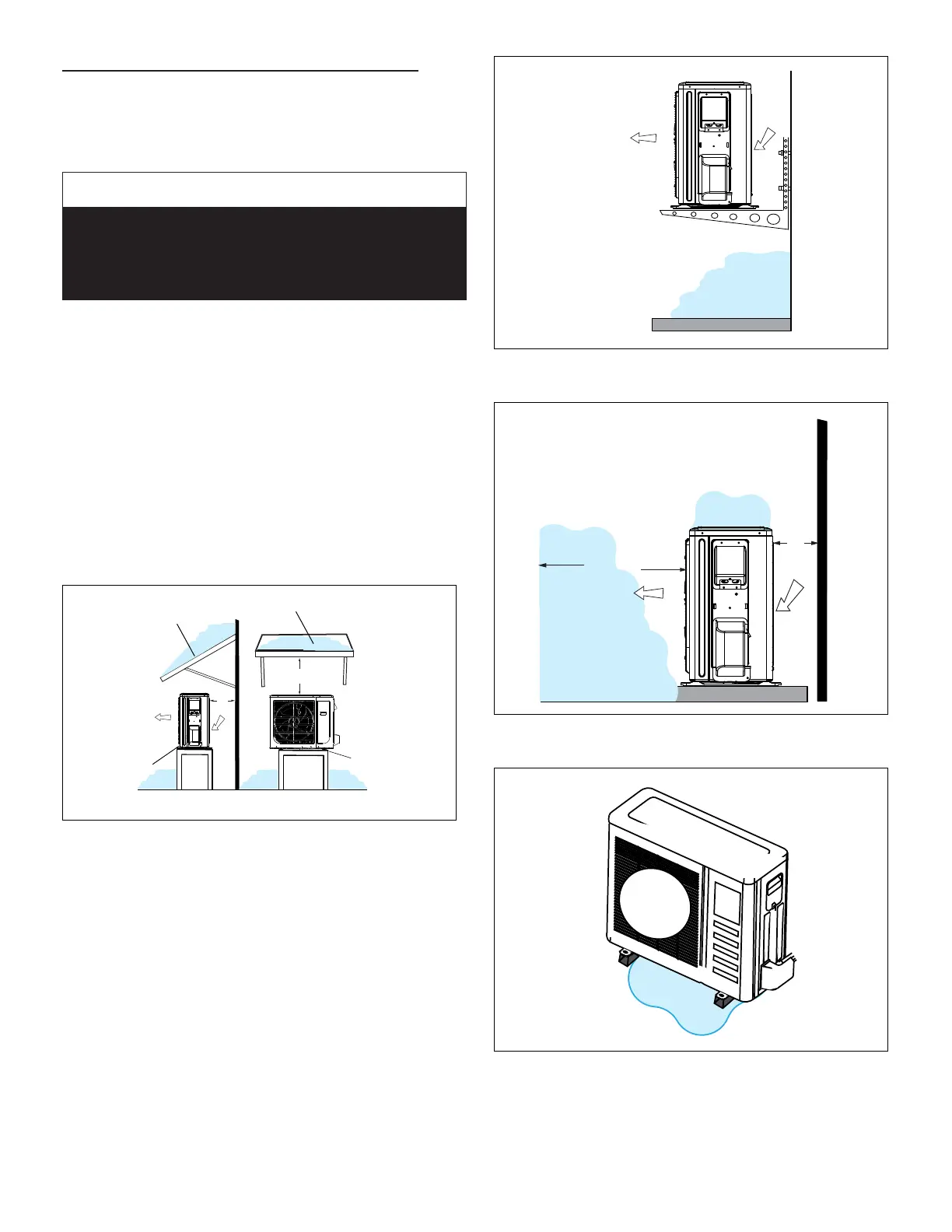

Figure 19. Outdoor Unit on Pedestal and Protective
Canopy
Figure 20. Outdoor Unit on Brackets above Snow
Line
Air Outlet
Air Inlet
12 in
305 mm
79 in
2007 mm
Figure 21. Outdoor Unit Air Flow Obstructed by
Snow
Figure 22. Avoid Defrost Water Ice Hazard
