8. Rotate the hinged control panel assembly out.
ROTATE OUT THE
CONTROL PANEL
ASSEMBLY

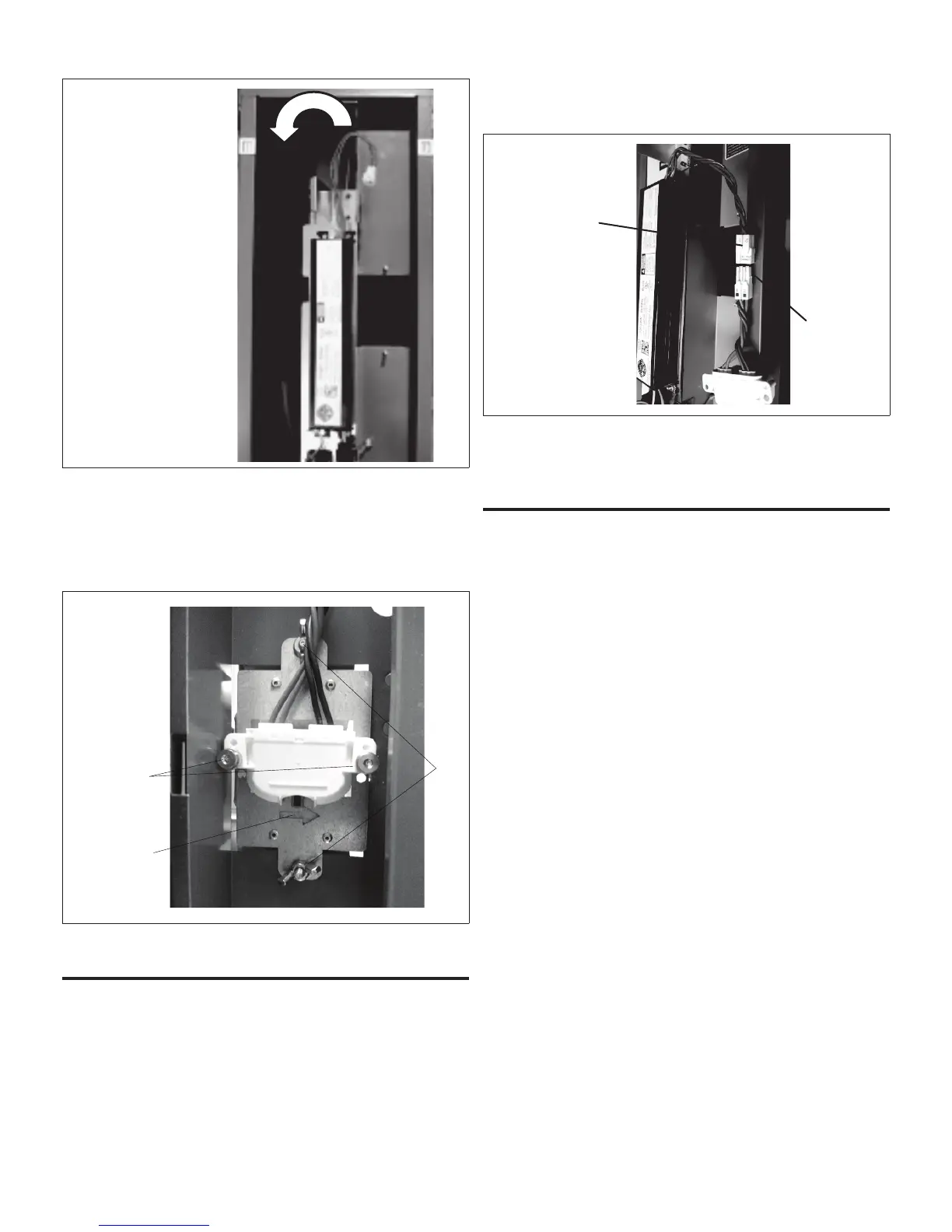

Figure 7. Rotate Out Control Panel Assembly
9. Thread the UVA Lampholder / PCO cartridge two posts
through the UVA lamp connector’s two holes.
10. Fasten the lamp socket to the UVA Lampholder / PCO
cartridge using the two-brass nger nuts located in the
literature bag.
BRASS FINGER
NUTS
A
IRFLOW
INDICATOR
WING
NUTS
Figure 8. Brass Finger and Wing Nuts
installing UVa lampholDer
Use the following procedure to install the UVA Lampholder
/ PCO cartridge.
1. While aligning, slide the UVA Lampholder / PCO
cartridge into case rails and align with rear mounting
bracket.
2. Secure the UVA Lampholder / PCO cartridge to the two
frame screw posts using the provided wing nuts (2).
NOTE: There is an arrow on the front of the component
indicating the correct way to install it.
3. Connect UVA lamp 4-pin male connector to ballast
female 4-pin connector.
BALLAST FOUR PIN
FEMALE CONNECTOR
LAMPHOLDER
ASSEMBLY
(Y6622)
Figure 9. Ballast 4-Pin Female Connector
4. Rotate hinged control panel assembly back into the
cabinet. Make sure no wiring is being pinched.
installing air filter
Use the following procedure to install the air lter.
1. Slide the Healthy Climate
®
Carbon Clean 16
®
Filter into
the rails on the air inlet side of the cabinet. Verify proper
airow direction.
2. Securely fasten the access panel.
3. Plug one end of the provided power cord into the
receptacle on the cabinet and the other end into a power
receptacle.
4. Look through the view port in the access panel to check
that the UVA lamp is illuminated.
NOTE: On initial start-up, the UVA lamp may not reach full
illumination for several minutes.
