Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Solid-state drive (SSD) thermal pad
Solid-state drive (SSD)
Solid-state drive (SSD) mylar
Remove the antenna module
Make sure the following FRU (or CRU) have been removed.
“Remove the rubber foot” on page 28
“Remove the lower case” on page 29
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.
Step 2. Detach the main and auxiliary antenna cable connectors. Remove four screws and then remove the
antenna module.

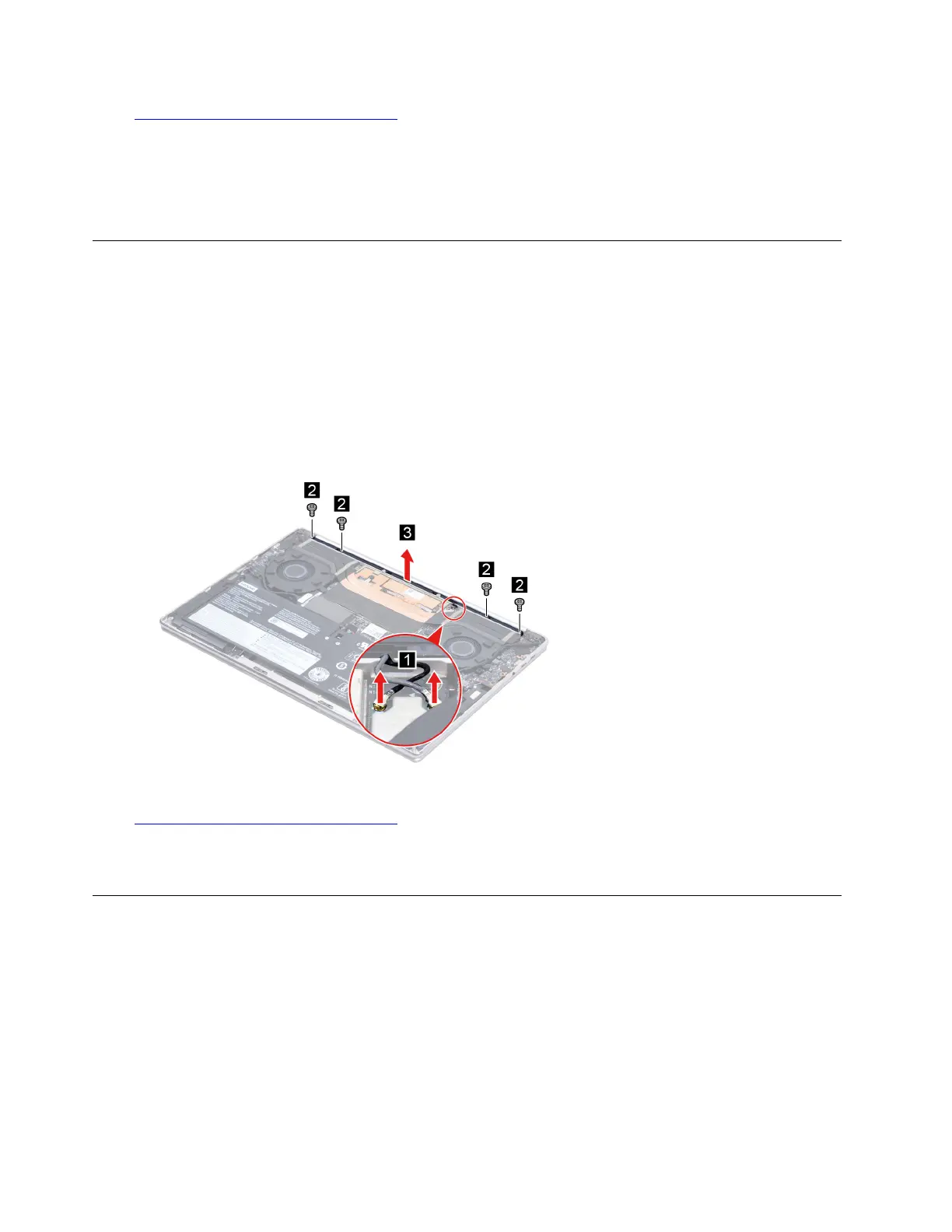

Figure 9. Remove the antenna module
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Antenna
Remove the heat sink
Make sure the following FRUs (or CRUs) have been removed.
“Remove the rubber foot” on page 28
“Remove the lower case” on page 29
Step 1. Remove antenna conductive fabric and shield conductive fabric.
32
Hardware Maintenance Manual
