1090 Keyboard bezel
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot
compartment cover” on page 36
• “1050 Optical drive” on page 39
• “1080 Keyboard” on page 43

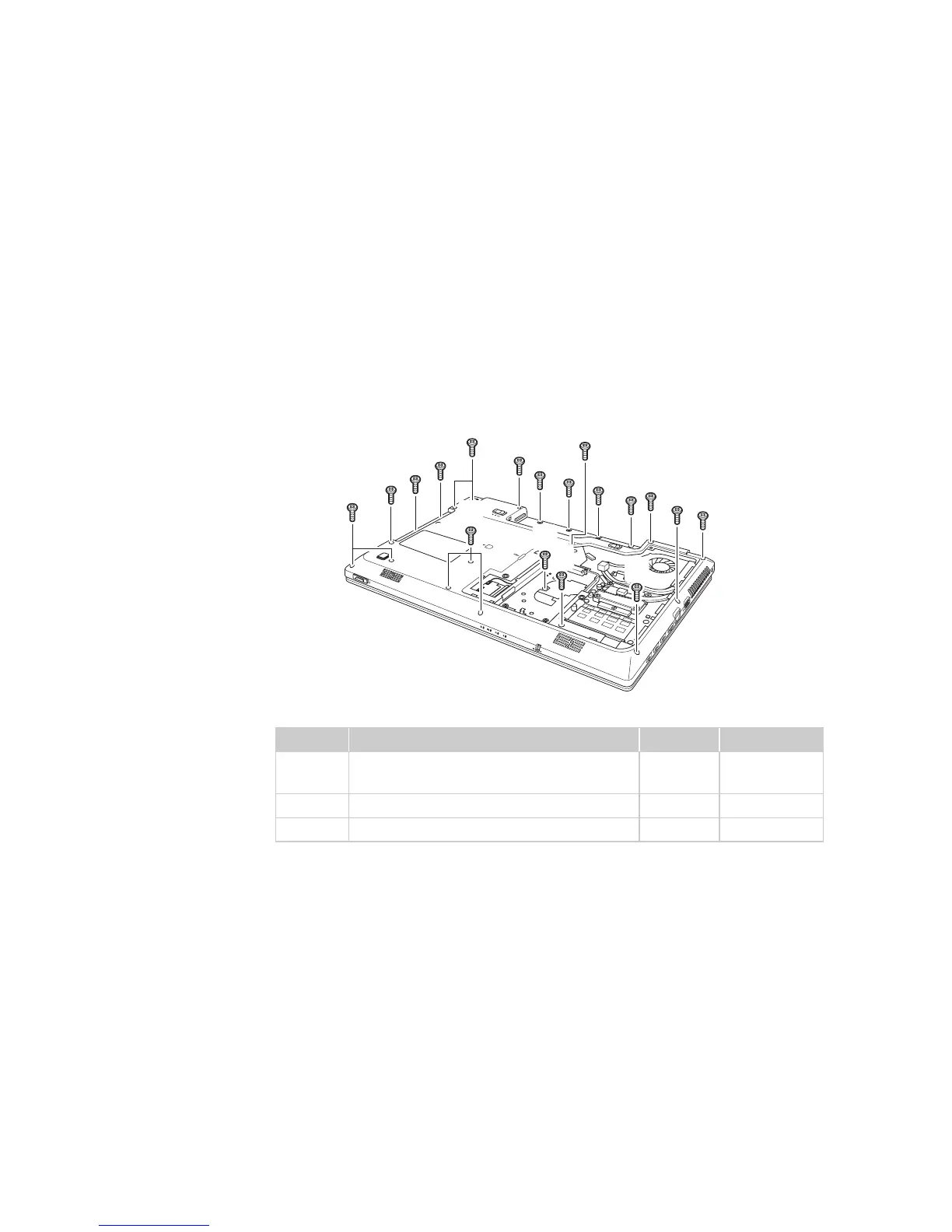

Figure 9. Removal steps of keyboard bezel
Remove sixteen screws , four screws and two screws on the bottom.
Step Screw (quantity) Color Torque
M2.5 × 8 mm, flat-head, nylok-coated
(16)
Black 2.0 kgfcm
M2 × 2 mm, flat-head, nylok-coated (4) Black 1.6 kgfcm
M2 × 3 mm, flat-head, nylok-coated (2) Black 1.6 kgfcm
a b
c
a
a
c
c
a
a
b
b
b
b
a
a
a
a
a
a
a
a
a
b
c

Lenovo G770 Specifications

General

RAM	Up to 8GB DDR3
Storage	Up to 750GB HDD
Operating System	Windows 7 Home Premium
Chipset	Intel HM65
Optical Drive	DVD±RW
Display	17.3-inch HD+ (1600x900)
Graphics	AMD Radeon HD 6650M
Weight	3.0 kg
Audio	Stereo speakers
Webcam	0.3 MP
Connectivity	Wi-Fi 802.11b/g/n, Bluetooth 2.1
Ports	HDMI, VGA, Ethernet, headphone/microphone combo jack
Battery	6-cell Li-ion
Processor	Intel Core i3/i5/i7
