1110 LCD unit
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot
compartment cover” on page 36
• “1040 Hard disk drive” on page 37
• “1050 Optical drive” on page 39
• “1060 DIMM” on page 40
• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 41
• “1080 Keyboard” on page 43
• “1090 Keyboard bezel” on page 45
• “1100 System board” on page 49

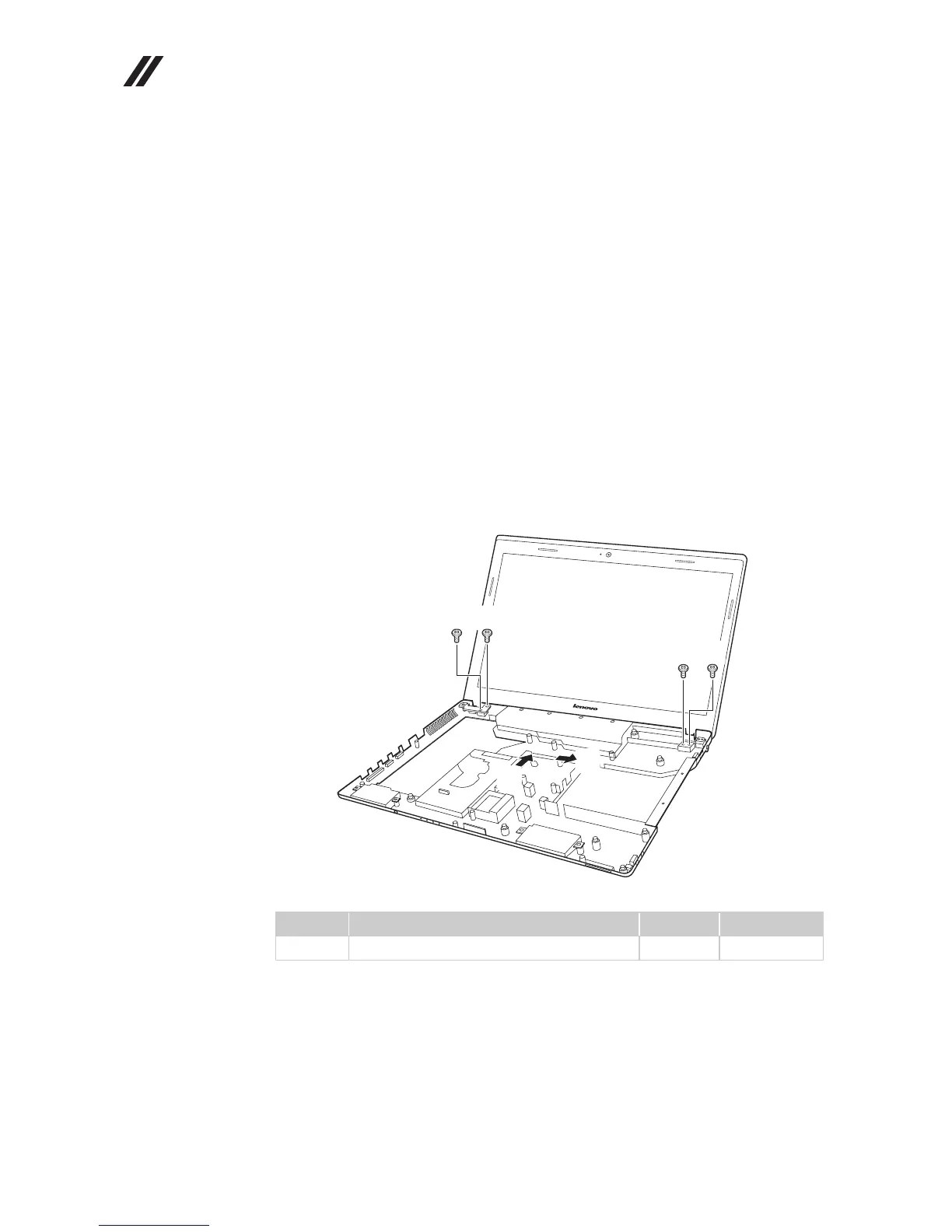

Figure 11. Removal steps of LCD unit
Release the antenna cables from the cable guides in the direction shown by
arrows . Remove four screws .
When installing:
• Route the antenna cables along the cable guides. As you route the cables,
make sure that they are not subjected to any tension. Tension could cause the
cables to be damaged by the cable guides, or a wire to be broken.
• Make sure that the LCD connector is attached firmly and make sure that you
do not pinch the antenna cables when you attach the LCD assembly. Route
the LCD cable along the cable guides.
Step Screw (quantity) Color Torque
M2.5 × 5 mm, flat-head, nylok-coated (4) White 2.0 kgfcm
a b
G
7
7
0
a
b
b
b
a
b
b
