Lenovo G770 User Manual

Lenovo G770
61
1160 LCD panel, LCD cable and hinges
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot
compartment cover” on page 36
• “1040 Hard disk drive” on page 37
• “1050 Optical drive” on page 39
• “1060 DIMM” on page 40
• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 41
• “1080 Keyboard” on page 43
• “1090 Keyboard bezel” on page 45
• “1100 System board” on page 49
• “1110 LCD unit” on page 52
• “1150 LCD front bezel” on page 60

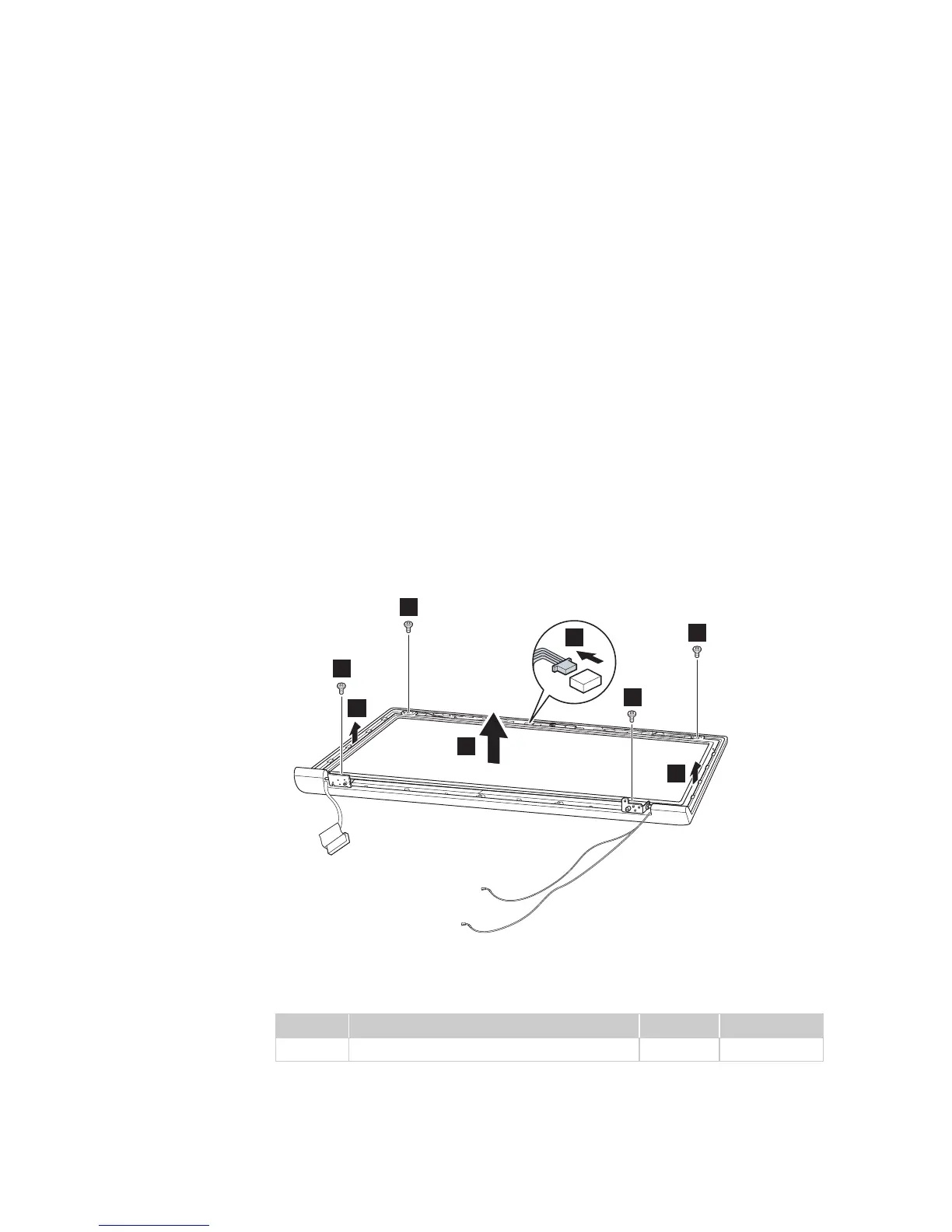

Figure 16. Removal steps of LCD panel, LCD cable and hinges
Remove four screws . Unplug the integrated camera connector in the
direction shown by arrow . Lift the LCD panel in the direction shown by
arrows .
When installing: Make sure that the connector is attached firmly.
Step Screw (quantity) Color Torque
M2.5 × 4 mm, flat-head, nylok-coated (4) Black 2.0 kgfcm
a
b
c
1
1
1
1
2
3
3
3
a

Lenovo G770 Specifications

General

RAM	Up to 8GB DDR3
Storage	Up to 750GB HDD
Operating System	Windows 7 Home Premium
Chipset	Intel HM65
Optical Drive	DVD±RW
Display	17.3-inch HD+ (1600x900)
Graphics	AMD Radeon HD 6650M
Weight	3.0 kg
Audio	Stereo speakers
Webcam	0.3 MP
Connectivity	Wi-Fi 802.11b/g/n, Bluetooth 2.1
Ports	HDMI, VGA, Ethernet, headphone/microphone combo jack
Battery	6-cell Li-ion
Processor	Intel Core i3/i5/i7
