Lenze 530 series User Manual

19
l

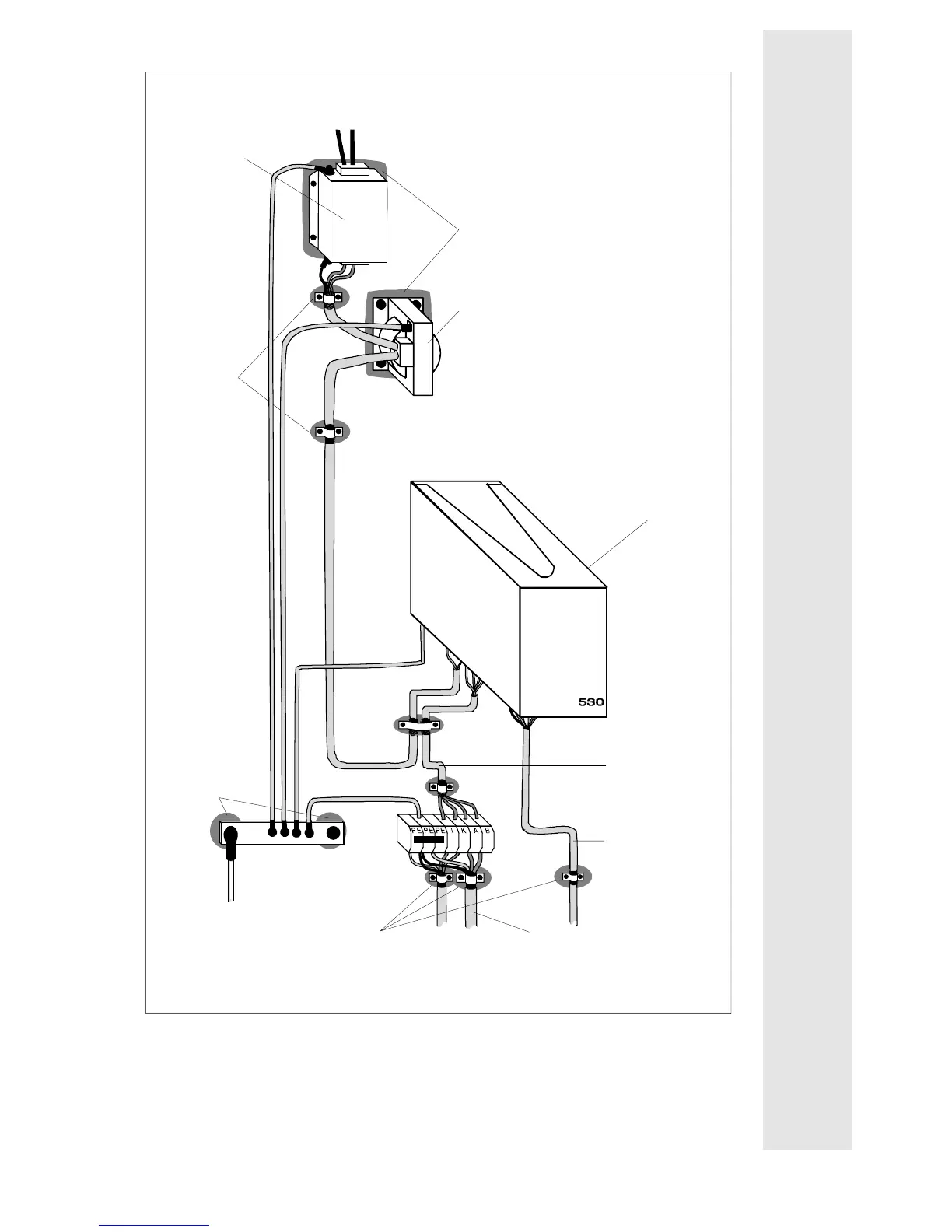

Part of the CE-typical drive system which is located on the mounting plate
Mains choke
LOAD
LINE
PE
RFI filter
L1 N Connection mains fuse
Paint-free bare metal
contact surface
Paint-free
surfaces for
screen
contact
Paint-free surface
for screen contact
PE bar
PE connection
Mounting plate
conductive
connection
with PE
Controller
PE
Screened
field and
armature cable
Connect screen of the
motor cables at the motor
side as well with a large
surface to PE
Screened
control cables
L
1)
1)
The mains choke is only necessary for type 534.
