Lenze 8100 A Series User Manual

12

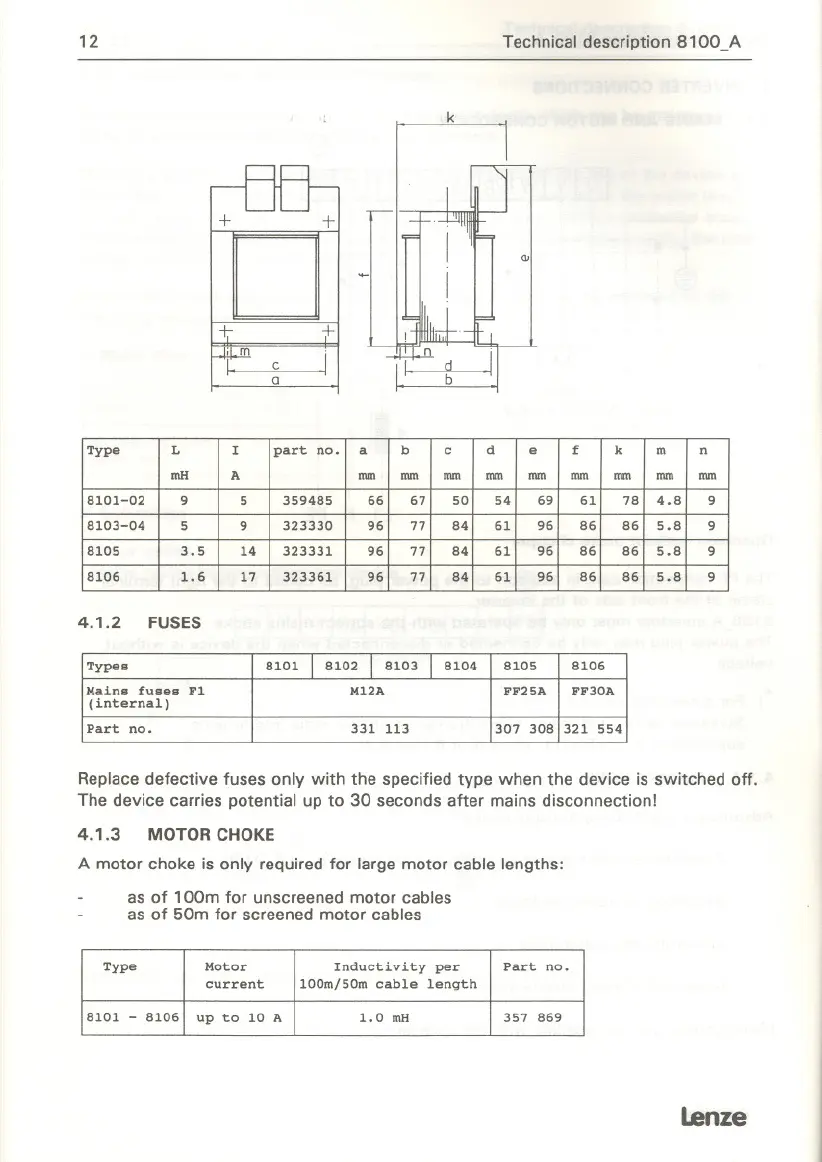

Technical description 8100_A
k
+
+
m
f.
o
4.1.2 FUSES
Replace defectivefuses only with the specifiedtype when the device isswitched off.
The device carries potential up to 30 seconds after mains disconnectionl
4.1.3 MOTOR CHOKE
A motor choke is only required for large motor cable lengths:
as of 100m for unscreened motor cables
as of 50m for screened motor cables
lenze
Type
L
I
part no.
a
b
c
d
e f
k
m n
mH A
mm mm mm mm mm mm mm mm mm
8101-02 9
5
359485 66 67 50 54 69 61 78 4.8 9
8103-04
5 9
323330 96
77
84 61 96 86 86 5.8 9
8105 3.5 14 323331 96 77 84 61 96 86 86 5.8 9
8106
1.6 17 323361 96 77 84 61
96 86 86 5.8
9
Types
8101 I 8102 I 8103 I 8104
8105 8106
Mains fuses F1 M12A FF25A FF30A
(internal)
Part no.
331 113
307 308 321 554
Type
Motor
Inductivity per
Part no.
current
100m/50m cab1e 1ength
8101 - 8106
up to 10 A
1.0 mH 357 869
