Technical description 8100_A
29

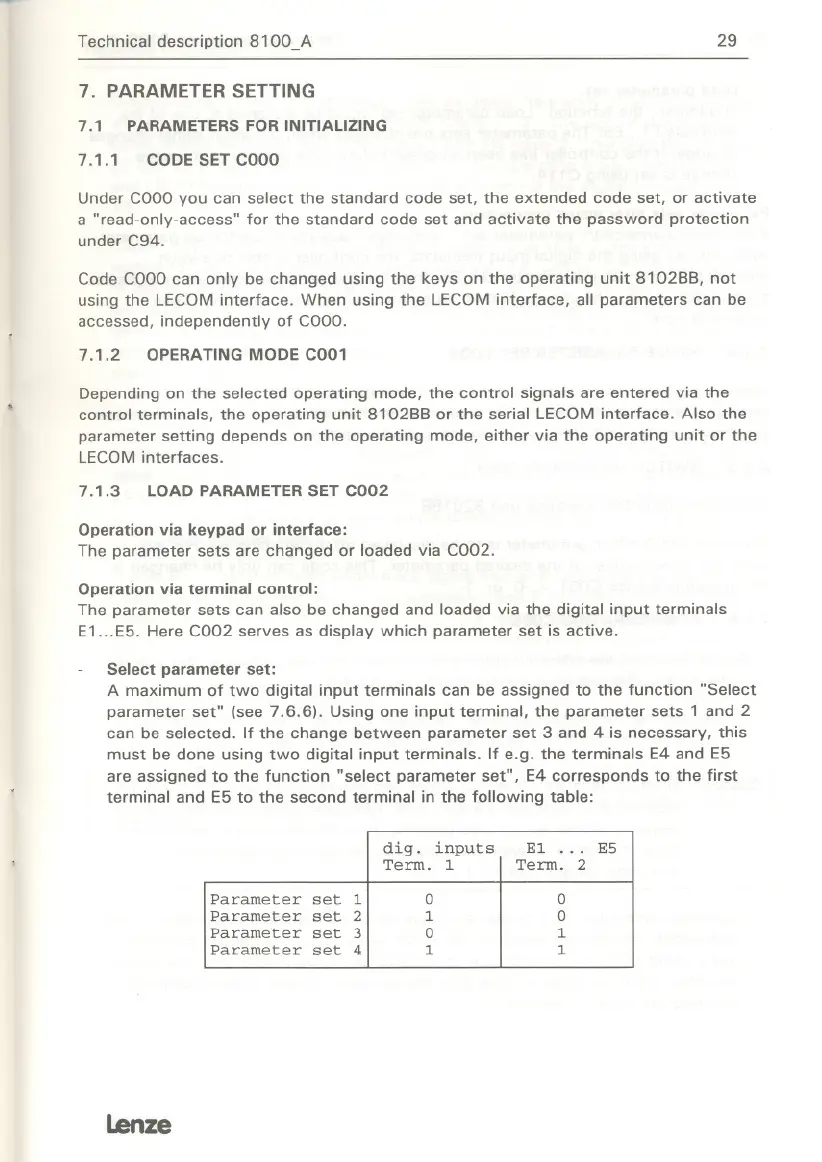

7. PARAMETERSETTING
7.1 PARAMETERS FOR INITIALlZING
7.1.1 CODESETCOOO
Under coca you can select the standard code set, the extended code set, or activate
a "read-only-access" for the standard code set and activate the password protection
under C94.
Code coca can only be changed using the keys on the operating unit 810288, not
using the LECOM interface. When using the LECOM interface, allparameters can be
accessed, independently of coca.
7.1.2 OPERATINGMODEC001
Depending on the selected operating mode, the control signals are entered via the
control terminals, the operating unit 810288 or the serial LECOM interface. Also the
parameter setting depends on the operating mode, either via the operating unit or the
LECOM interfaces.
7.1.3 LOAD PARAMETER SET C002
Operation via keypad or interface:
The parameter sets are changed or loaded via C002.
Operation via terminalcontral:
The parameter sets can also be changed and loaded via the digitalinput terminals
E1...E5. Here C002 serves as display which parameter set is active.
Select parameter set:
A maximum
of two digitalinput terminals can be assigned to the function "Select
parameter set" (see 7.6.6). Using one input terminal,the parameter sets
1 and2
can be selected. Ifthe change between parameter set 3 and 4 is necessary, this
must bedoneusing two digitalinput terminals.Ife.g. the terminals E4 and E5
are assigned to thefunction"select parameter set", E4 corresponds to the first
terminal and E5 to the second terminal in the following table:
lenze
dig. inputs
El
.. . ES
Term. 1
Term.
2
Parameter set 1
0
0
Parameter set 2
1
0
Parameter set 3
0 1
Parameter set 4 1 1
