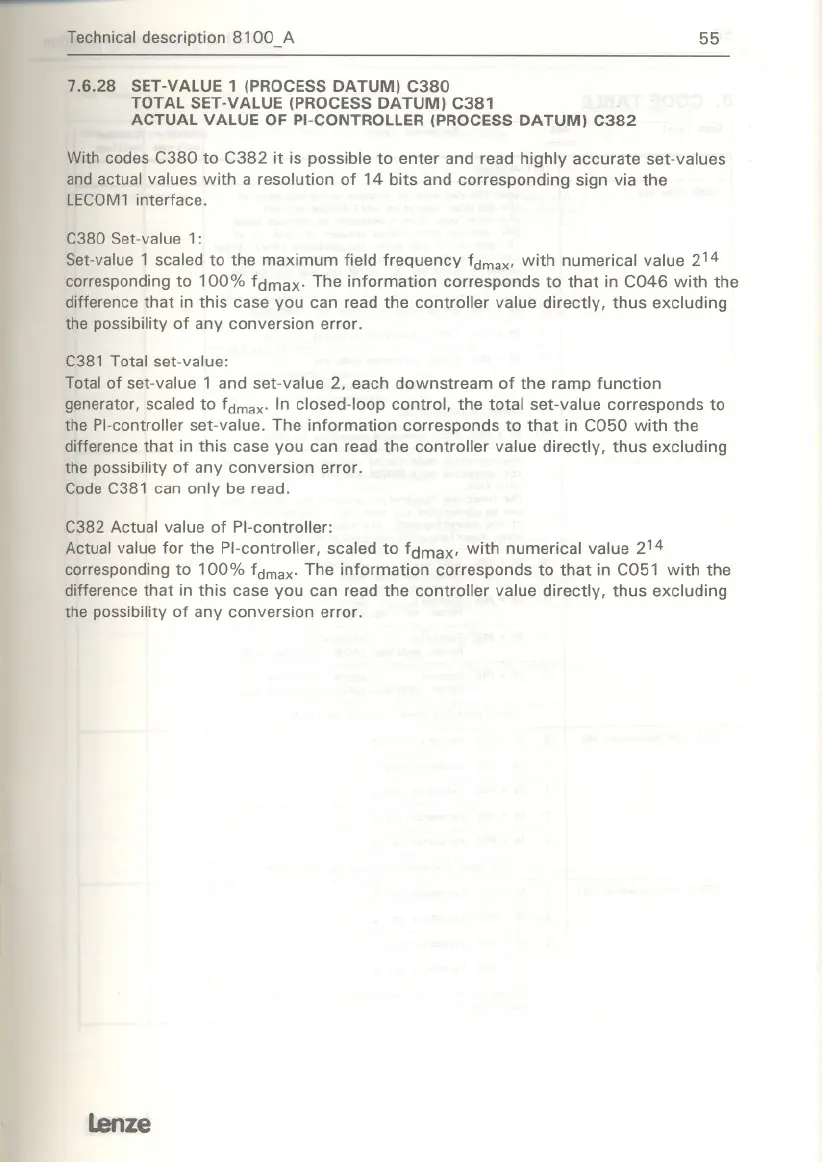

Technical description 8100_A
55
7.6.28 SET-VALUE1 (PROCESS DATUM)C380
TOTALSET-VALUE(PROCESS DATUM)C381
ACTUALVALUEOF PI-CONTROLLER(PROCESS DATUM)C382
With codes C380 to C382 it is possible to enter and read highly accurate set-values
and actual values with aresolution of 14 bits and corresponding sign via the
LECOM1interface.
C3BO
Set-value1:
Set-value 1 scaled to the maximum field frequency fdmax' with numerical value 214
corresponding to 100% fdmax. The information corresponds to that in C046 with the
difference that in this case you can read the controller value directly, thus excluding
the possibility of any conversion error.
C3B1 Total set-value:
Total of set-value 1 and set-value 2, each downstream of the ramp function
generator, scaled to fdmax. In closed-Ioop control, the total set-value corresponds to
the PI-controller set-value. The information corresponds to that in CO50 with the
difference that in this case you can read the controller value directly, thus excluding
the possibility of any conversion error.
Code C381 can only be read.
C382 Actual value of PI-controller:
Actual value for the PI-controller, scaled to fdmax' with numerical value 214
corresponding to 100% fdmax.The information corresponds to that in C051 with the
difference that in this case you can read the controller value directly, thus excluding
the possibility of any conversion error.
Lenze
