Installation
Electrical installation
22
Lenze · Decentralised frequency inverter 8400 motec (CANopen option) · EDS84DMOTCAN EN 4.0 - 02/2019
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.2 Electrical installation
5.2.1 Network topology
The following examples show two simple CAN networks.
Each segment of the network must be terminated at both ends by resistors (120 Ω) between CAN-
Low and CAN-High. The bus terminators of the system bus (CAN) are marked with a "Z" in the
following examples.
A CAN network consisting of only one segment starts with the CAN master (M) with integrated bus
termination, whereas the last CAN node (S) has to be terminated by a bus terminating resistor.
Bus termination
( 23)

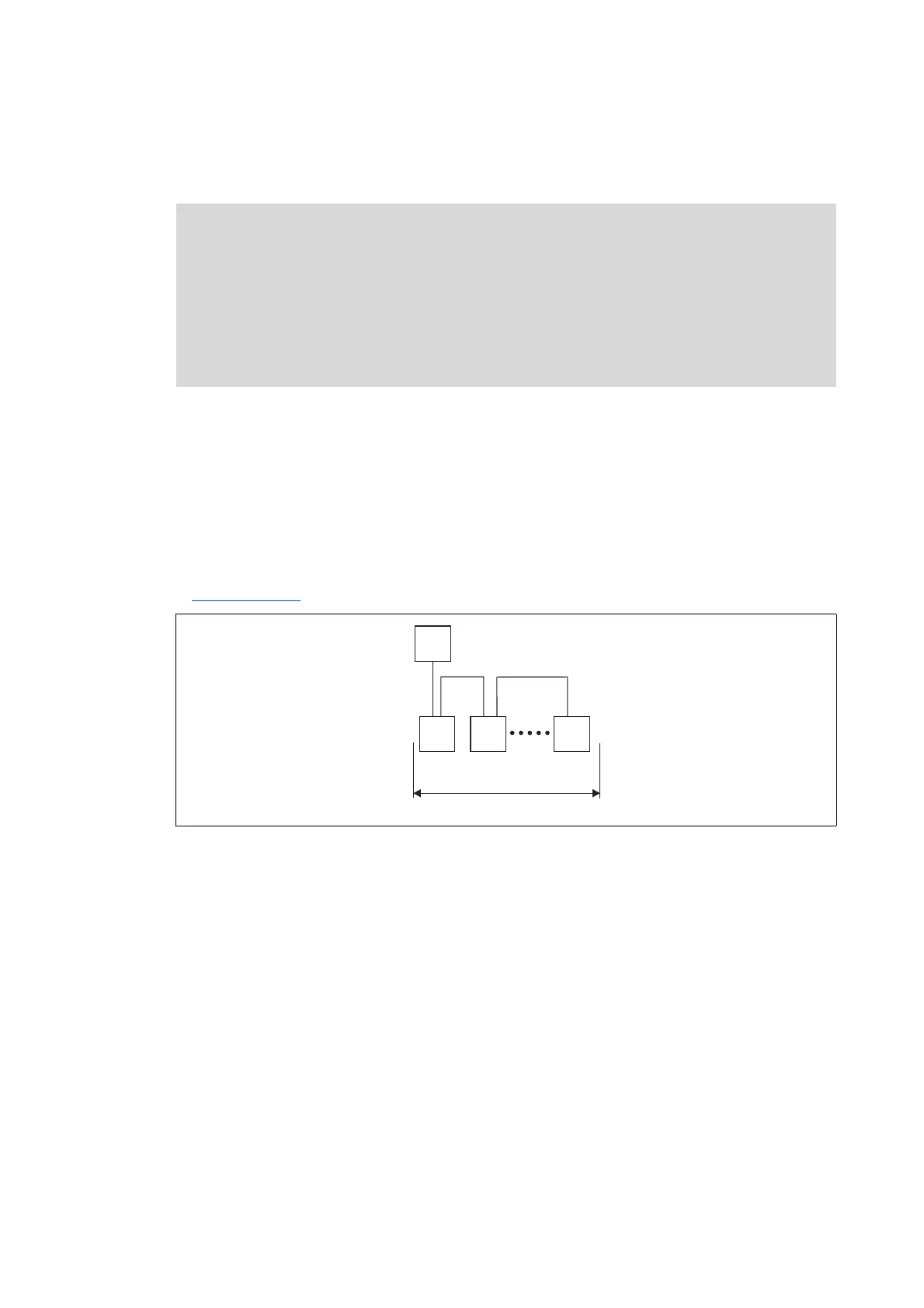

[5-2] CAN network with one segment
 "Inverter Drives 8400 motec" hardware manual
Here you can find detailed information on ...
• the digital and analog inputs/outputs;
•the relay output;
• the integrated safety system (safety option);
• the wiring of the terminals.
Observe the notes and wiring instructions contained in this documentation.
E94YCPM012a
M
Z
Z
S SS
1
