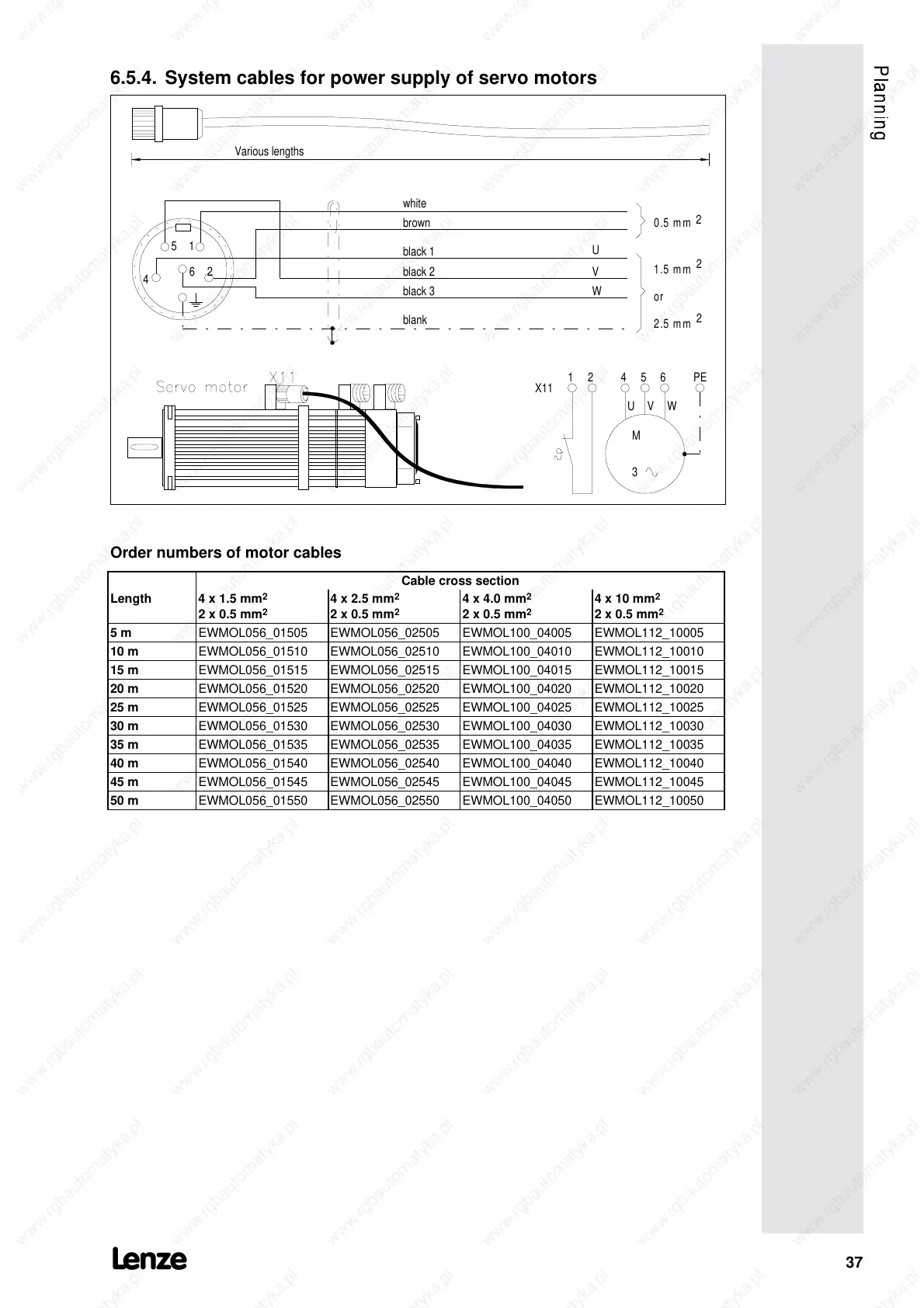

6.5.4. System cables for power supply of servo motors
1
2
4
5
6
white
brown
black 1
black 3
black 2
0.5 mm
1.5 mm
or
2.5 mm
2
M
3
12 456 PE
U
V
W
X11
UVW
Various lengths
blank
2
2
Order numbers of motor cables
Cable cross section
Length 4 x 1.5 mm
2
2 x 0.5 mm
2
4 x 2.5 mm
2
2 x 0.5 mm
2
4 x 4.0 mm
2
2 x 0.5 mm
2
4 x 10 mm
2
2 x 0.5 mm
2
5 m
EWMOL056_01505 EWMOL056_02505 EWMOL100_04005 EWMOL112_10005
10 m
EWMOL056_01510 EWMOL056_02510 EWMOL100_04010 EWMOL112_10010
15 m
EWMOL056_01515 EWMOL056_02515 EWMOL100_04015 EWMOL112_10015
20 m
EWMOL056_01520 EWMOL056_02520 EWMOL100_04020 EWMOL112_10020
25 m
EWMOL056_01525 EWMOL056_02525 EWMOL100_04025 EWMOL112_10025
30 m
EWMOL056_01530 EWMOL056_02530 EWMOL100_04030 EWMOL112_10030
35 m
EWMOL056_01535 EWMOL056_02535 EWMOL100_04035 EWMOL112_10035
40 m
EWMOL056_01540 EWMOL056_02540 EWMOL100_04040 EWMOL112_10040
45 m
EWMOL056_01545 EWMOL056_02545 EWMOL100_04045 EWMOL112_10045
50 m
EWMOL056_01550 EWMOL056_02550 EWMOL100_04050 EWMOL112_10050
