Electrical installation
Important notes
EDKMF2176X DE/EN/FR 4.2
16
H1_E_INST-2176_service_BL
6 Electricalinstallation
Important notes
Danger!
Improper handling of the CAN repeater and the basic device can cause severe
injuries to persons and damage to material assets.
Observe the safety instructions and residual hazards mentioned in the
instructions for the basic device.
Stop!
The following items must be observed for trouble-free operation of the CAN
repeater:
ƒ ThebaudratemustbeidenticalinbothCANsegments!
In case of different baud rates, the entire bus system fails (”BUS-OFF”
state).
ƒ Wire the system carefully!
IftheCANcablesarecrossedinasegment,theentirebussystemfails
(”BUS-OFF” state).
ƒ Do not exceed a bus load of 80 %!

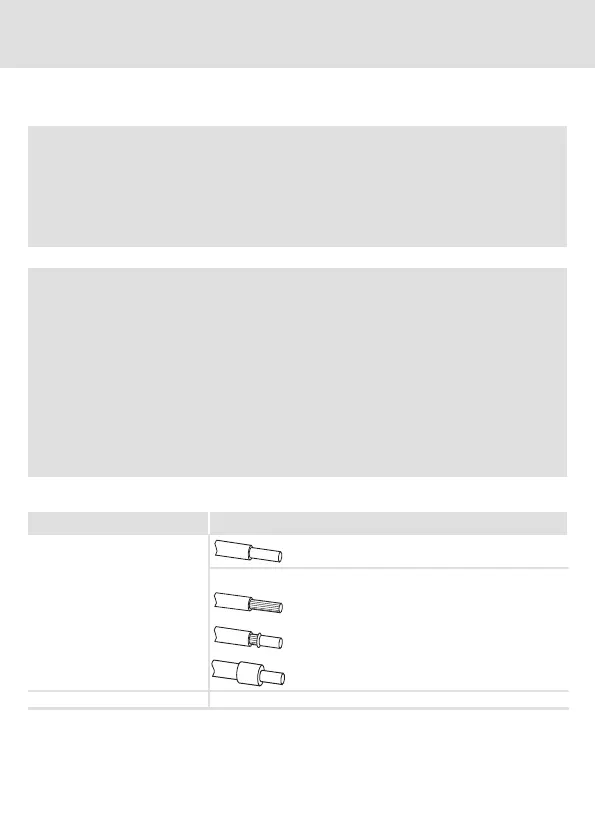

Terminal data
Electrical connection Plug connector with screw connection
Possible connections
rigid: 1.5 mm
2
(AWG 16)
flexible:
without wire end ferrule
1.5 mm
2
(AWG 16)
with wire end ferrule, without plastic sleeve
1.5 mm
2
(AWG 16)
with wire end ferrule, with plastic sleeve
0.5 mm
2
(AWG 20)
Stripping length 6.5 mm
