Electrical installation
Installing the expansion cards
5

53
LDCDS-CPC9100 DE/EN 1.0
5.2 Installing the expansion cards
When mounting PCI cards, please note that the values for current and power listed in the
following may not be exceeded for the corresponding power supply unit voltages, as
otherwise this has an impact on the permissible ambient temperatures.
Output voltages of the power
supply unit
Max. current Permissible power
[V DC] [A] [W]
+3.3 15 <50
+5 14 <75
+3.3 and +5 33 -
+12 8 < 100
+3.3and+5and+12 - < 100
Thevalues specified may vary accordingto the typeof power supply unit.For more detailed
information, please refer to the Lenze service.
2
3
3
4
0
0
0
0
0
0
1

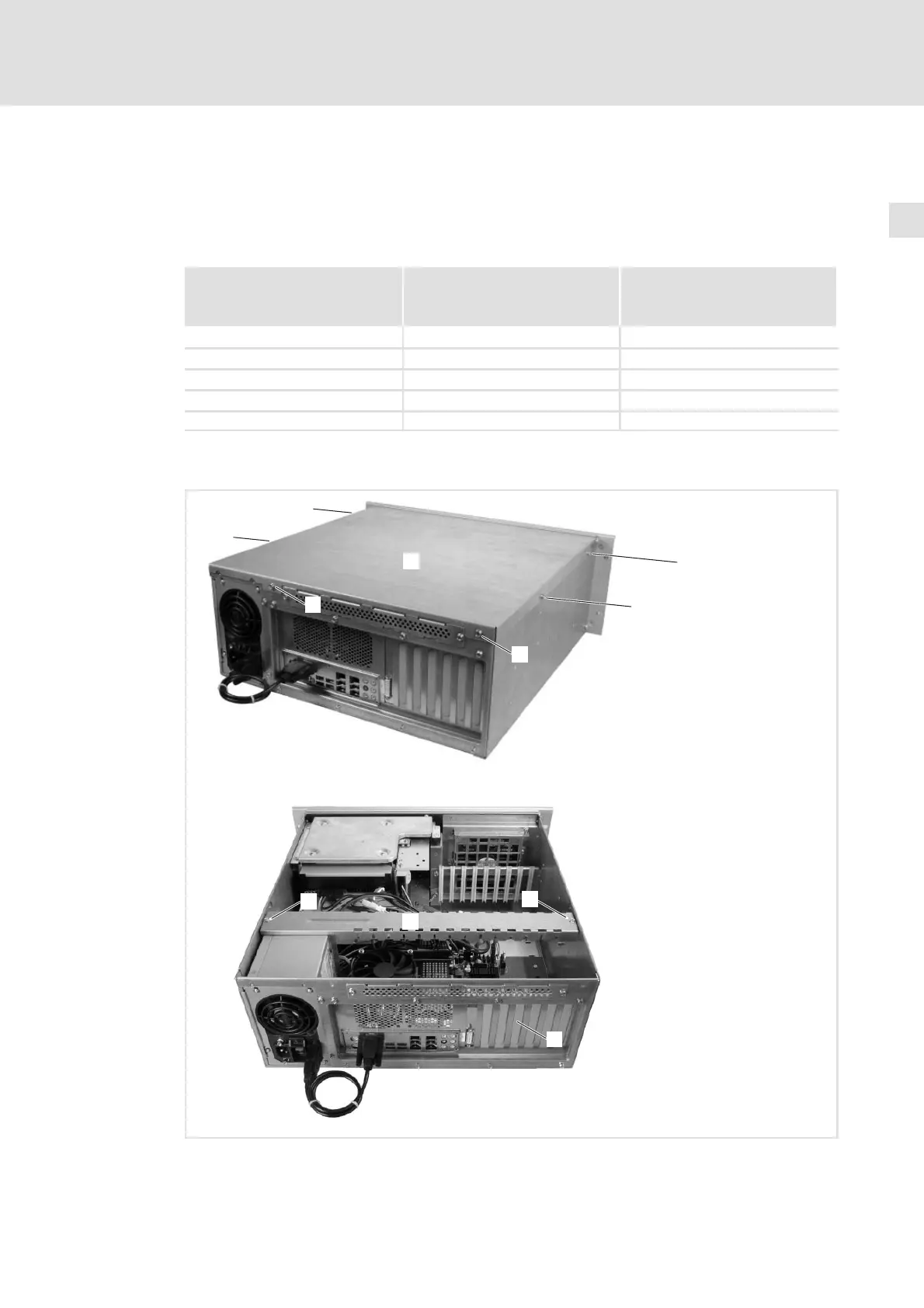

CPC9100-004
