Maintenance
Repair
Remove the PC housing
7
100
LDCDS−ELx7xx DE/EN 4.0
7.3 Repair

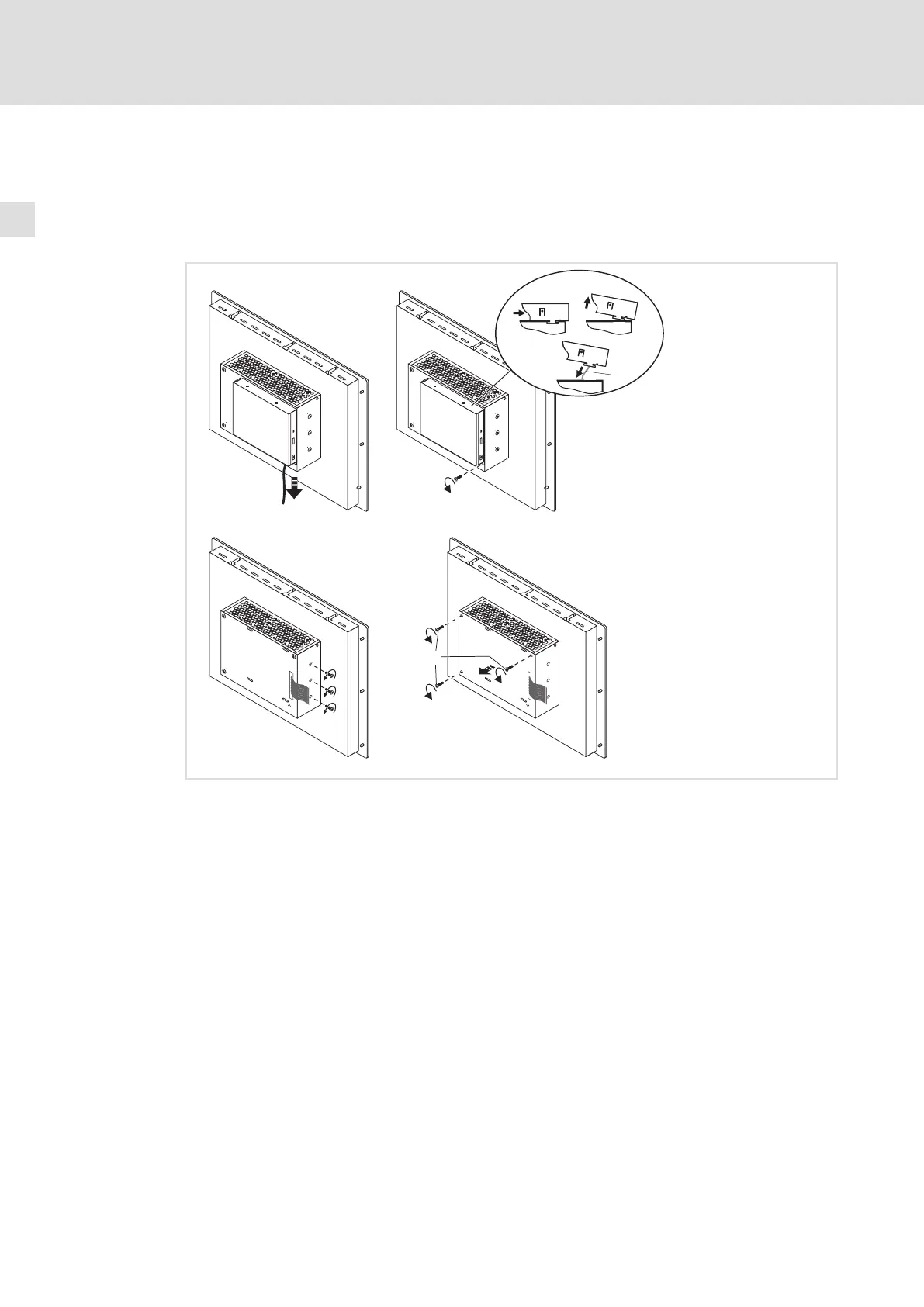

7.3.1 Remove the PC housing
With DVD drive
4
6
5
3
2
0
a
b
c
3
1
ELx7xx−013
Proceed as follows when a DVD drive is mounted:
1. Remove the mains cable ( 87)
2. Remove the DVD drive :
– Loosen the fixing screw .
– Push the DVD drive to the right.
– Carefully take off the DVD drive.
– Remove the ribbon cable .
3. Only for fanless devices: Loosen the three screws .
4. Remove the housing :
– Loosen the three screws .
– Carefully pull the housing off towards the front while passing the ribbon cable
through the housing aperture.
