Installation
4-30
BA9300SU EN 2.1

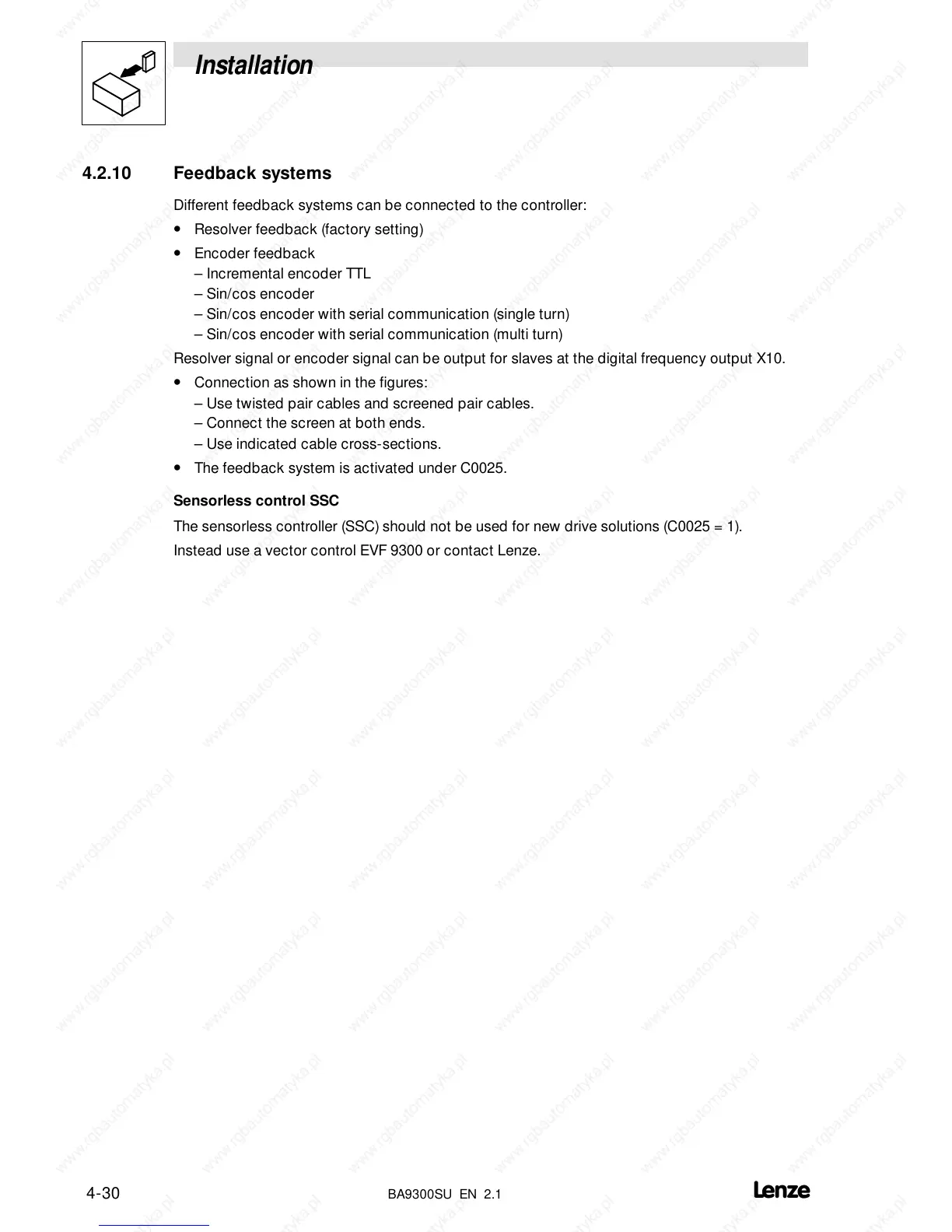

4.2.10 Feedback systems
Different feedback systems can be connected to the controller:
• Resolver feedback (factory setting)
• Encoder feedback
– Incremental encoder TTL
– Sin/cos encoder
– Sin/cos encoder with serial communication (single turn)
– Sin/cos encoder with serial communication (multi turn)
Resolver signal or encoder signal can be output for slaves at the digital frequency output X10.
• Connection as shown in the figures:
– Use twisted pair cables and screened pair cables.
– Connect the screen at both ends.
– Use indicated cable cross-sections.
• The feedback system is activated under C0025.
Sensorless control SSC
The sensorless controller (SSC) should not be used for new drive solutions (C0025 = 1).
Instead use a vector control EVF 9300 or contact Lenze.
