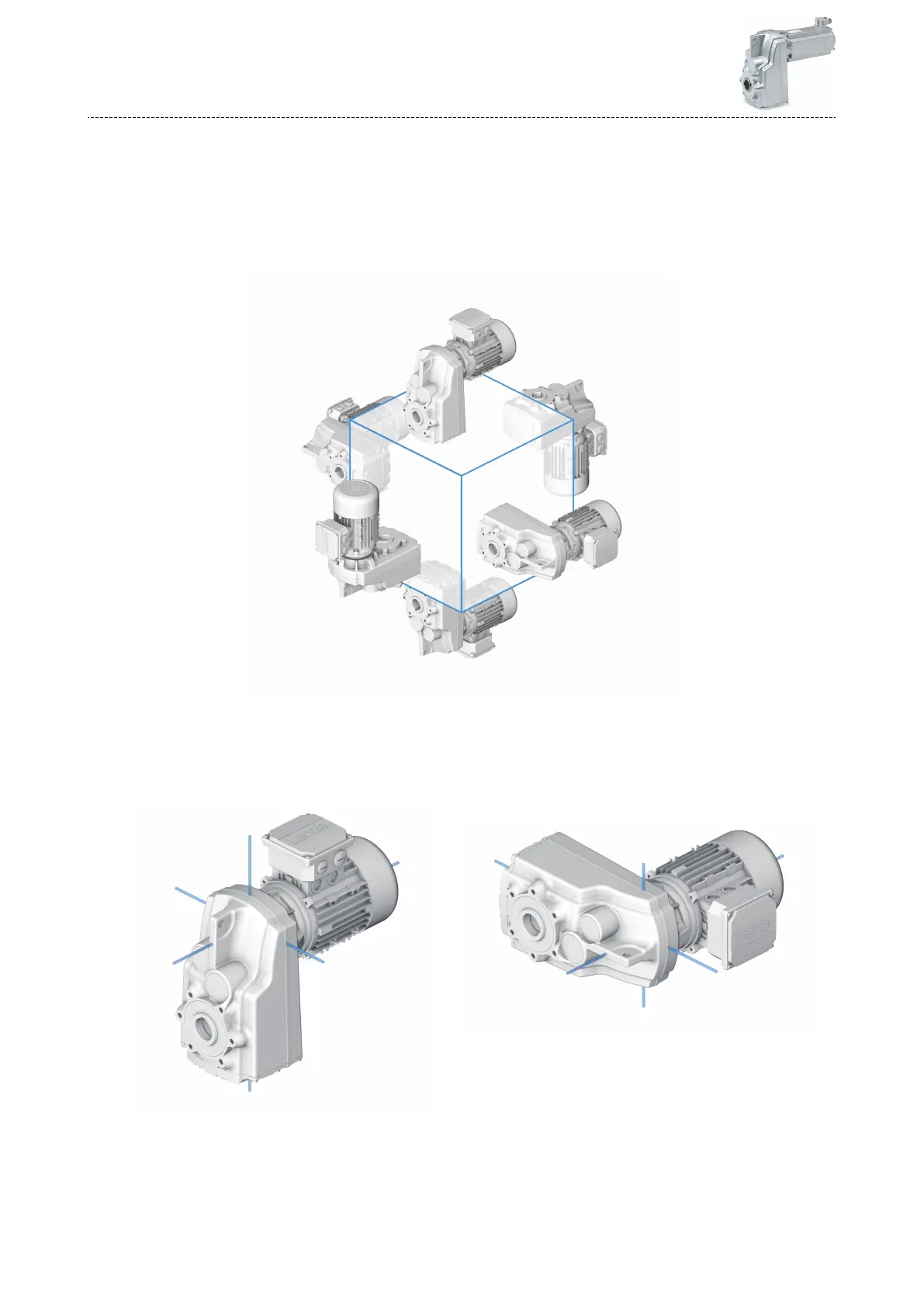

Mounng posions
Details of the mounng posion are needed to ensure the corresponding lubricant amount,
posion of the venlaon, oil checks and oil drain plug on the gearbox.
To reduce the number of dierent versions, the following gearboxes can also be ordered with
combined mounng posions:
•
g500-S130 ... S660 in mounng posion M1/5/6 (AEF)
M1 [ A ]
M2 [ D ]
M5 [ F ]
M3 [ B ]
M4 [ C ]
M6 [ E ]
Dened posions on the geared motor
All of the dened posions refer to the areas on the geared motor in
mounng posion M1 (A) .
Posion of the built-on accessories with T, L, R, B, F, E (Top, Le,
Right, Boom, Front and End)
If the geared motor is rotated into a dierent mounng posion
M2 ... M6 (B...F), the dened posions on the geared motor are
retained.
T [ 2 ]
E [ 1 ]
R [ 5 ]
B [ 4 ]
F [ 6 ]
L [ 3 ]
Example: Mounng posion M5 (F)
E [ 1 ]
T [ 2 ]
R [ 5 ]
F [ 6 ]
B [ 4 ]
L [ 3 ]
Product informaon
The modular system
Mounng posions
16
