Electrical installaon
Operang instrucons I510-Cabinet

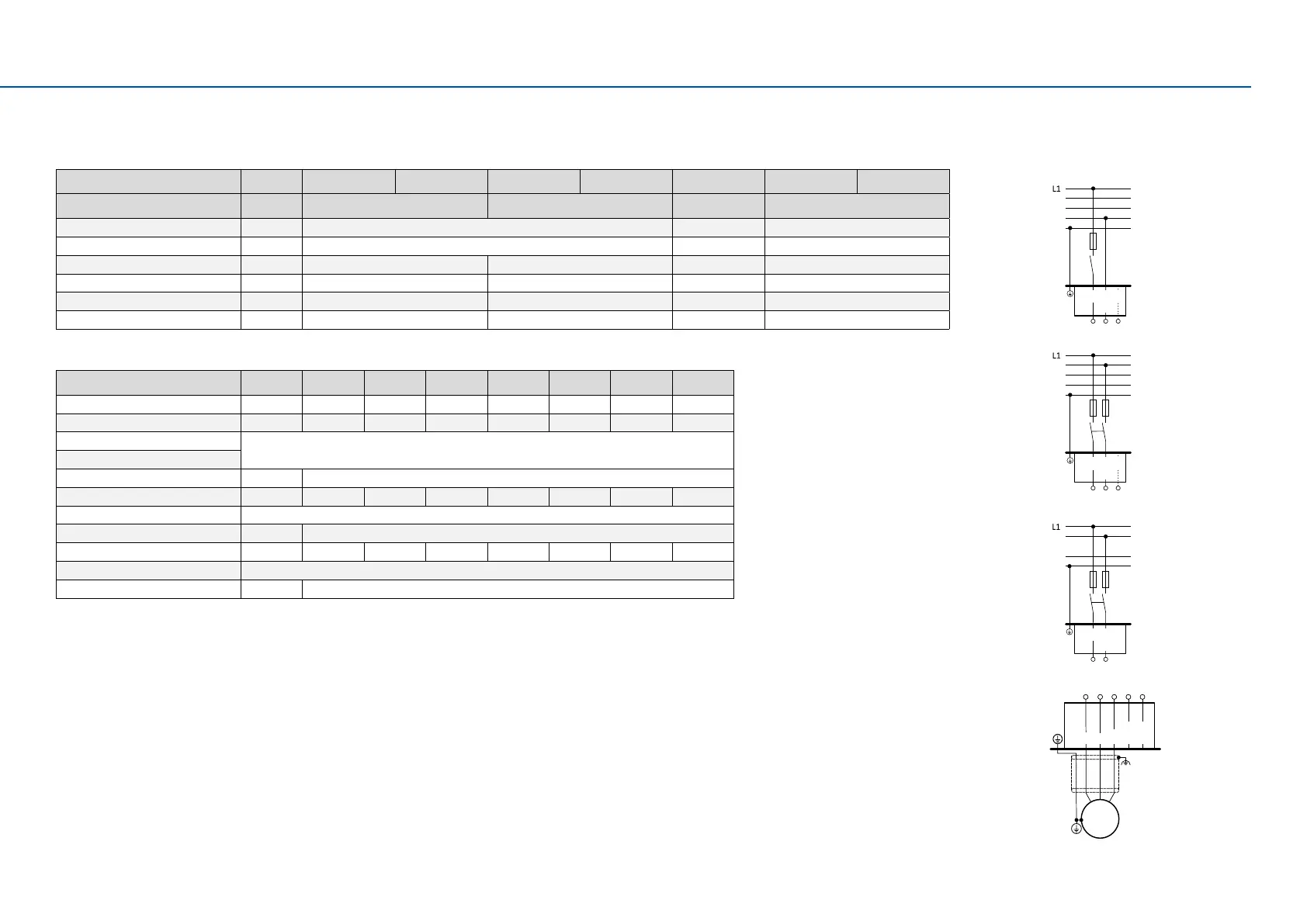

5.5 Single-phasemainsconnecon230/240V
Terminaldata,1-phase230/240V
I51AExxxB I51AExxxD I51AExxxB I51AExxxD I51AExxxx I51AExxxB I51AExxxD
Inverter [kW] 0.25 ... 0.75 1.1 ... 2.2 0.25 ... 2.2 0.25 ... 2.2
Connecon Mains connecon X100 PE connecon Motor connecon X105
Connecon type Pluggable screw terminal PE screw Pluggable screw terminal
Max. cable cross-secon mm² 2.5 6 6 2.5
Stripping length mm 8 8 10 8
Tightening torque Nm 0.5 0.7 2 0.5
Tools required 0.5 x 3.0 0.6 x 3.5 Torx 20 0.5 x 3.0
Fusingdata/performancedata
Inverter [kW] 0.25 0.37 0.55 0.75 1.1 1.5 2.2
Rated output current A 1.7 2.4 3.2 4.2 6 7 9.6
Max. output current (15s) A 2.6 3.6 4.8 6.3 9 10.5 14.4
Operaon without mains choke
Fuse
Characterisc gG/gL or gRL
Max. rated current A 10 10 16 16 25 25 25
Circuit breaker
Characterisc B
Max. rated current A 10 10 16 16 25 25 25
Earth-leakage circuit breaker
1-phase mains connecon ≥ 30 mA, type A or B
Mainsconnecon
Valid for I51AExxxD inverter.
1/N/PE
AC 170 V ...
264 V
45 Hz ... 65 Hz
F1
Q1
X100
L1
L2/N
PE
N
L3
L2
3/N/PE
AC 400 V
L3
Valid for I51AExxxD inverter.
2/PE
AC 170 V ...
264 V
45 Hz ... 65 Hz
F1
…
F2
Q1
X100
L1
L2/N
PE
N
L3
L2
3/N/PE
AC 208 V ...
240 V
L3
Valid for I51AExxxB inverter.
F1
…
F2
Q1
X100
L1
L2/N
2/PE
AC 170 V ...
264 V
45 Hz ... 65 Hz
PE
N
L2
2/N/PE
AC 208 V ...
240 V
Motorconnecon
X105
U V W Rb1 Rb2
M
3~
