14
Electrical installaon
Operang Instrucons i510-Cabinet

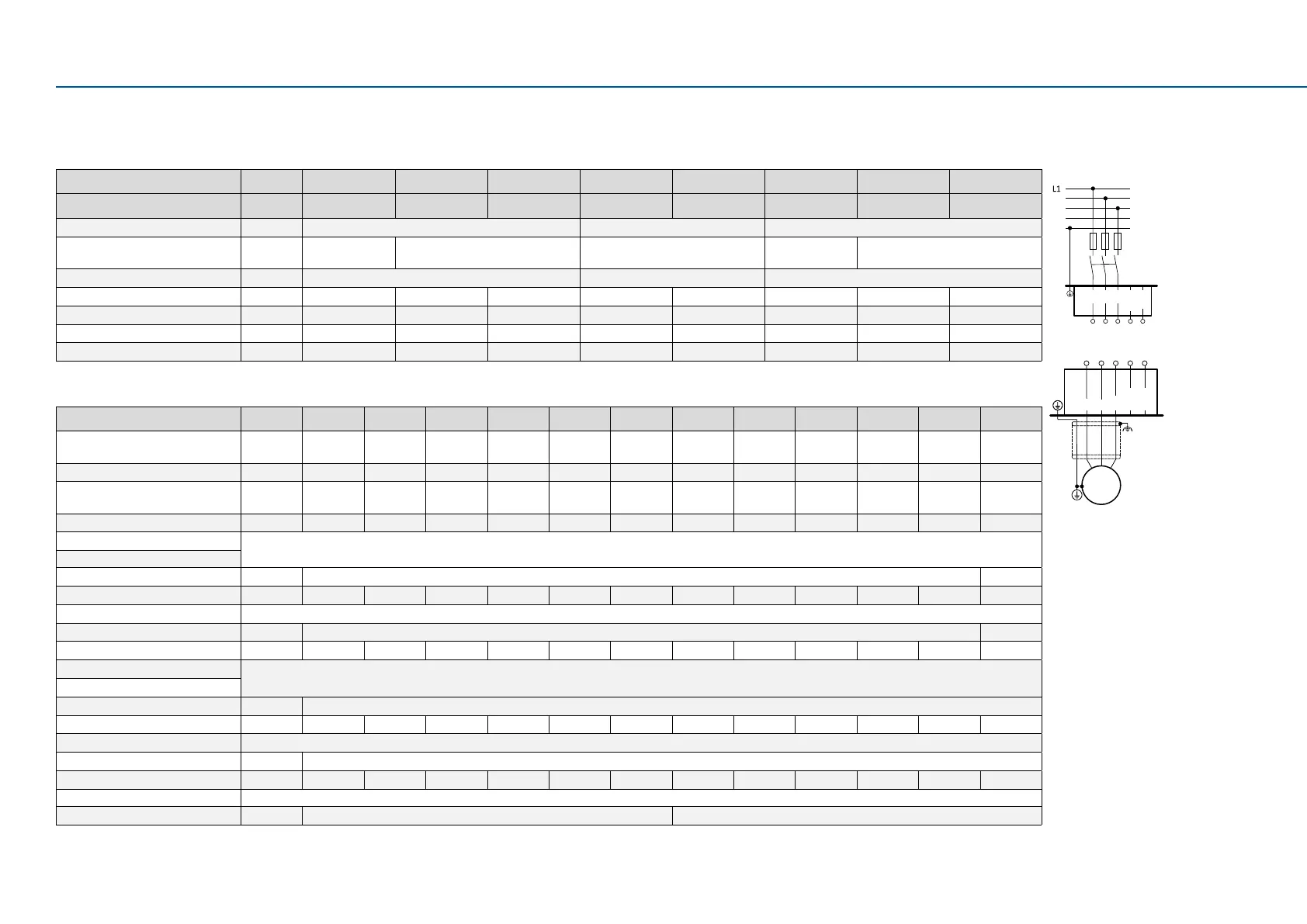

5.8 Three-phasemainsconnecon480V
Terminaldata,3-phase480V
I51AExxxF I51AExxxF I51AExxxF I51AExxxF I51AExxxF I51AxxxF I51AxxxF I51AxxxF
Inverter [kW] 0.37 ... 2.2 3 ... 5.5 7.5 ... 11 0.37 ... 5.5 7.5 ... 11 0.37 ... 2.2 3 ... 5.5 7.5 ... 11
Connecon Mains connecon X100 PE connecon Motor connecon X105
Connecon type Pluggable screw
terminal
Screw terminal PE screw Pluggable screw
terminal
Screw terminal
Min. cable cross-secon mm² 1 1.5 1
Max. cable cross-secon mm² 2.5 6 16 6 16 2.5 6 16
Stripping length mm 8 9 11 10 11 8 9 11
Tightening torque Nm 0.5 0.5 1.2 2 3.4 0.5 0.5 1.2
Tools required 0.5 x 3.0 0.6 x 3.5 0.8 x 4.0 Torx 20 PZ2 0.5 x 3.0 0.6 x 3.5 0.8 x 4.0
Fusingdata/performancedata
Inverter [kW] 0.37 0.55 0.75 1.1 1.5 2.2 3 4 5.5 7.5 11 15
Rated output current
(heavy duty)
A 1.1 1.6 2.1 3 3.5 4.8 6.3 8.2 11 14 21 -
Max. Output current (15 s) A 2.2 3.2 4.2 6 7 9.6 12.6 16.4 22 28 42 -
Rated output current
(light duty)
A - - - - - - - 7.6 9.8 13.2 18.3 25.2
Max. Output current (15 s) A - - - - - - - 12.6 16.4 22 28 42
Operaonwithoutmainschoke
Fuse
Characterisc gG/gL or gRL -
Max. rated current A 10 10 10 16 16 16 25 25 25 32 32 -
Circuit breaker
Characterisc B -
Max. rated current A 10 10 10 16 16 16 25 25 25 32 32 -
Operaonwithmainschoke
Fuse
Characterisc gG/gL or gRL
Max. rated current A 10 10 10 16 16 16 25 25 25 32 32 32
Circuit breaker
Characterisc B
Max. rated current A 10 10 10 16 16 16 25 25 25 32 32 32
Earth-leakage circuit breaker
3-phase mains connecon ≥ 30 mA, type B ≥ 300 mA, type B
A mains choke must be used for light duty loads over 15 kW.
Mainsconnecon
Valid for I51AExxxF inverter.
+UG
3/PE
AC 340 V ... 528 V
45 Hz ... 65 Hz
F1
…
F3
Q1
X100
L1 L2
L3
PE
N
L3
L2
3/N/PE
AC 480 V
-UG
Motorconnecon
X105
U V W Rb1 Rb2
M
3~
