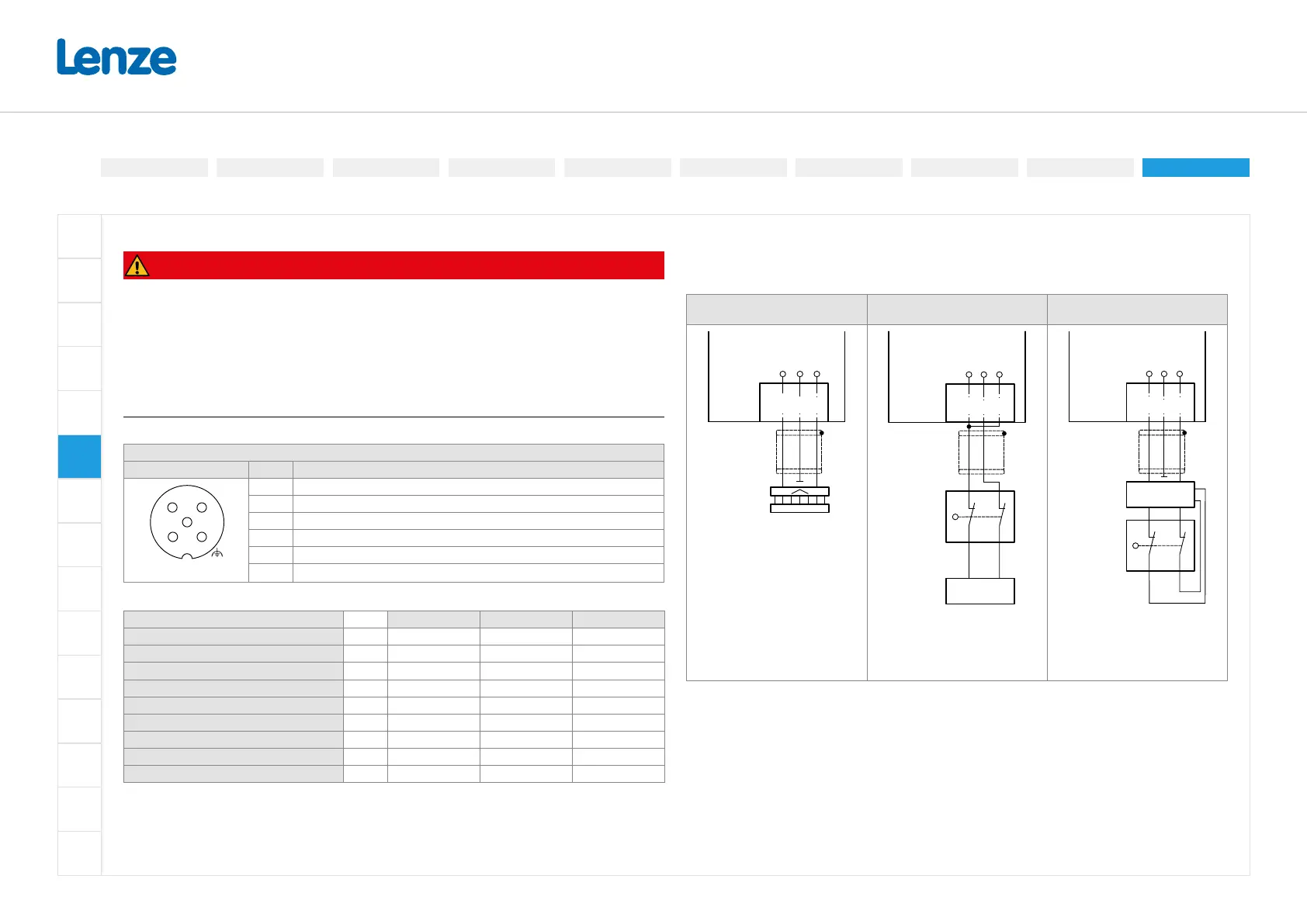

Operating instructions i550 motec frequency inverter | 19
© 03/2022 · EN · www.Lenze.com
Safe torque o (STO)
DANGER!
No “Emergency switching o” in accordance with EN 60204-1
When using the “Safe torque o (STO)” function, additional measures are required for an
“Emergency switching o” in accordance with EN 60204-1. There is no electrical isolation
between the motor and inverter, no service switch or maintenance switch!
Possible consequences: Death or severe injuries
• An “Emergency switching o” requires an electrical isolation, e.g. by a central mains
contactor.
X1
M12 (A coded) Pin Assignment
3
4
5
2 1
1 Not assigned
2 SIA
3 GS
4 SIB
5 Not assigned
Housing is connected to functional earth
Specications for SIA, SIB minimum typical maximum
LOW signal V -3 0 +5
HIGH signal V +15 +24 +30
Runtime ms 3
Switch-o time ms 50 60
Input current SIA mA 10 14
Input current SIB mA 7 12
Input peak current mA 100
Test pulse duration ms 1
Test pulse interval ms 10
Connection of active and passive sensors
The connection diagrams shown are only example circuits. The user is responsible for the
correct safety-related design and selection of the components!
Active sensor Passive sensor
Passive sensor + safety
switching device
X1
SIA
GS
SIB
"
S1
X1
SIA
GS
SIB
"
S1
DC 24 V SELV/PELV
+24 V
0 V
X1
SIA
GS
SIB
"
S2
S1
External power supply unit or 24 V
output of X3
S1: Active sensor
(Example: lightgrid)
S1: Passive sensor S1: Passive sensor
S2: Safety switching device
Safety-related characteristic values and further example circuits can be found in the project
planning document.
