Wiring the device
Power terminals
5
88
EDK94SH366 ZH/EN 3.1
5.3 Power terminals
Device size 8S
SSP94KL08S

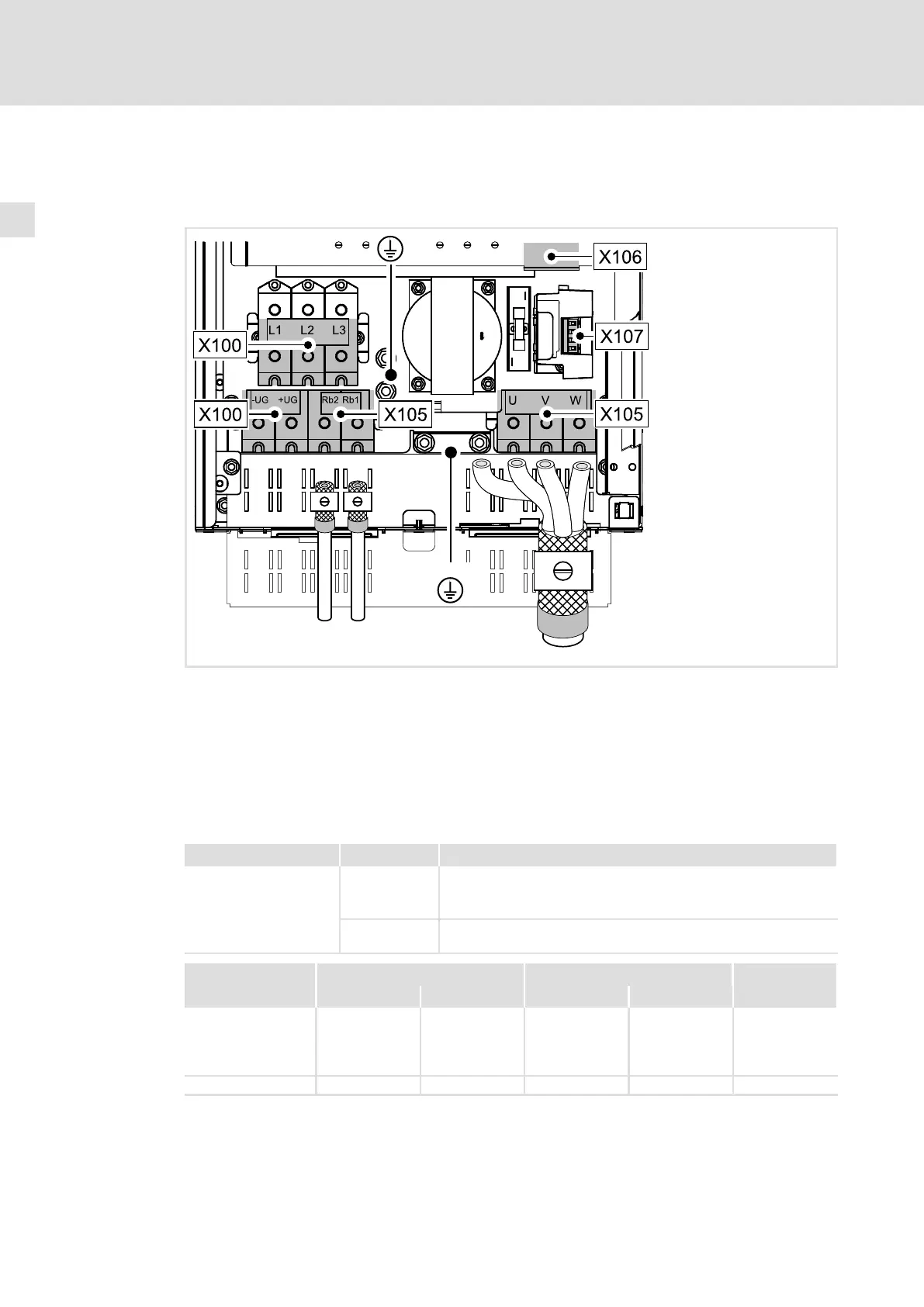

Fig.5−1 Arrangement of the power connections
Tip!
The barrier between mains input and power terminals can be dismounted to
have more free space for wiring.
Motor
Terminal X105 Marking Description
U
V
W
Motor phases
SSP94KL0X8
Connection for the PE conductor on the motor side with M8 ring
cable lug
Terminal data
Max. conductor cross−section Tightening torque
Screw drive
[mm
2
] [AWG] [Nm] [lb−in]
Device size 8S:
Flexible
With wire end
ferrule
95
000 14 124 Inbus 5
M8 ring cable lug 95 000 9.5 84 WAF 13
