Lexmark C510 Service Manual

4-70 Service Manual
5021-0XX

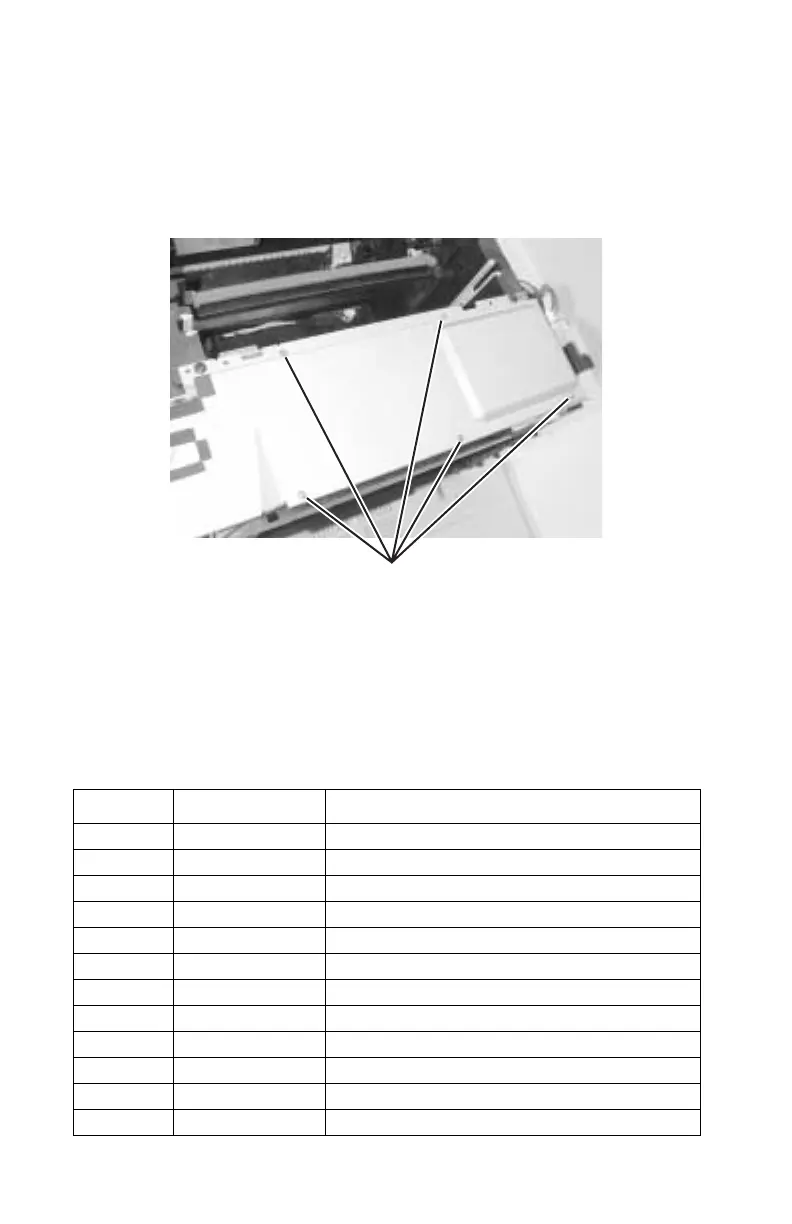

I/O board removal
1. Remove top cover assembly. See “Top cover assembly
removal” on page 4-18.
2. Remove five (A) screws from shield cover.
3. Disconnect all cables attached to I/O board.
Warning: There are several cables connected to the I/O board that
can be interchanged. When removing the cables, especially if the tie
wraps are to be cut, use an identification method for the cables.
Write the distinguishing cable wire colors in the table provided. If a
connector is not used, write N/A in the column.
Connector Number of pins Cable wire colors
DCN1 39
DCN2 3
DCN3 31
DCN4 8
DCN5 3
DCN6 6
DCN7 12
DCN8 3
DCN9 N/A
DCN10 24
DCN11 12
DCN12 14
A

Lexmark C510 Specifications

General

Certification	FCC Class B, UL 60950 3rd Edition, U.S. FDA, IEC 320-1, CSA, ICES Class B, Energy Star, Blue Angel, CE Class B, CB IEC 60950 IEC 60825-1, GS (TÜV), SEMKO, UL AR, CS, TÜV Rh, N Mark, C-tick mark Class B, CCC Class B
Product color	White
Built-in display	-
Color	Yes
Print technology	Laser
Maximum resolution	2400 x 2400 DPI
Time to first page (black, normal)	13 s
Time to first page (color, normal)	19 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Print speed (color, normal quality, A4/US Letter)	8 ppm
Maximum internal memory	320 MB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Maximum input capacity	780 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels, Plain paper, Transparencies
Paper tray media weight	60 - 120 g/m²
Standard interfaces	Parallel, USB 2.0
Optional connectivity	Ethernet, Serial (RS-232)
Maximum duty cycle	- pages per month
Page description languages	PCL 6, PDF 1.3, PostScript 3
Package depth	645 mm
Package width	680 mm
Package height	670 mm
Package weight	40600 g
Operating altitude	0 - 2500 m
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	15 - 80 %
Power consumption (printing)	- W
Ethernet LAN	No

Weight and Dimensions

Depth	420 mm
Width	495 mm
Height	385 mm
