INSTALLATION
22/40 17200295_002_C0/2016 - © Leybold 270727EI.DOCX

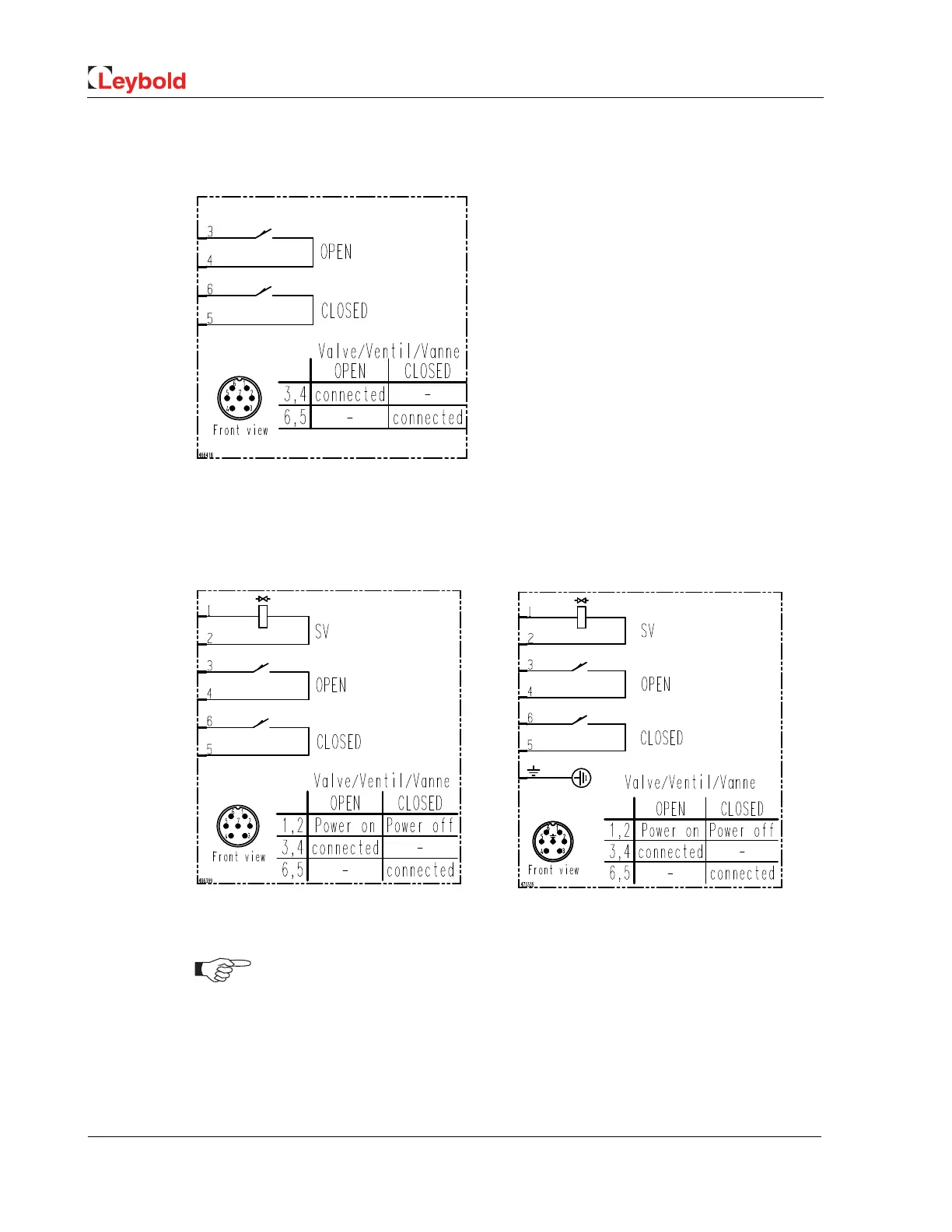

4.4.1 Valve with position indicator
7-pole connector
Figure 4-1 Wiring diagram
4.4.2 Valve with pilot valve and position indicator
7-pole connector < 50V 7-pole connector > 50V
Figure 4-2 Wiring diagram
The polarity of the 24 VDC connection need not to be considered.
