- 9 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

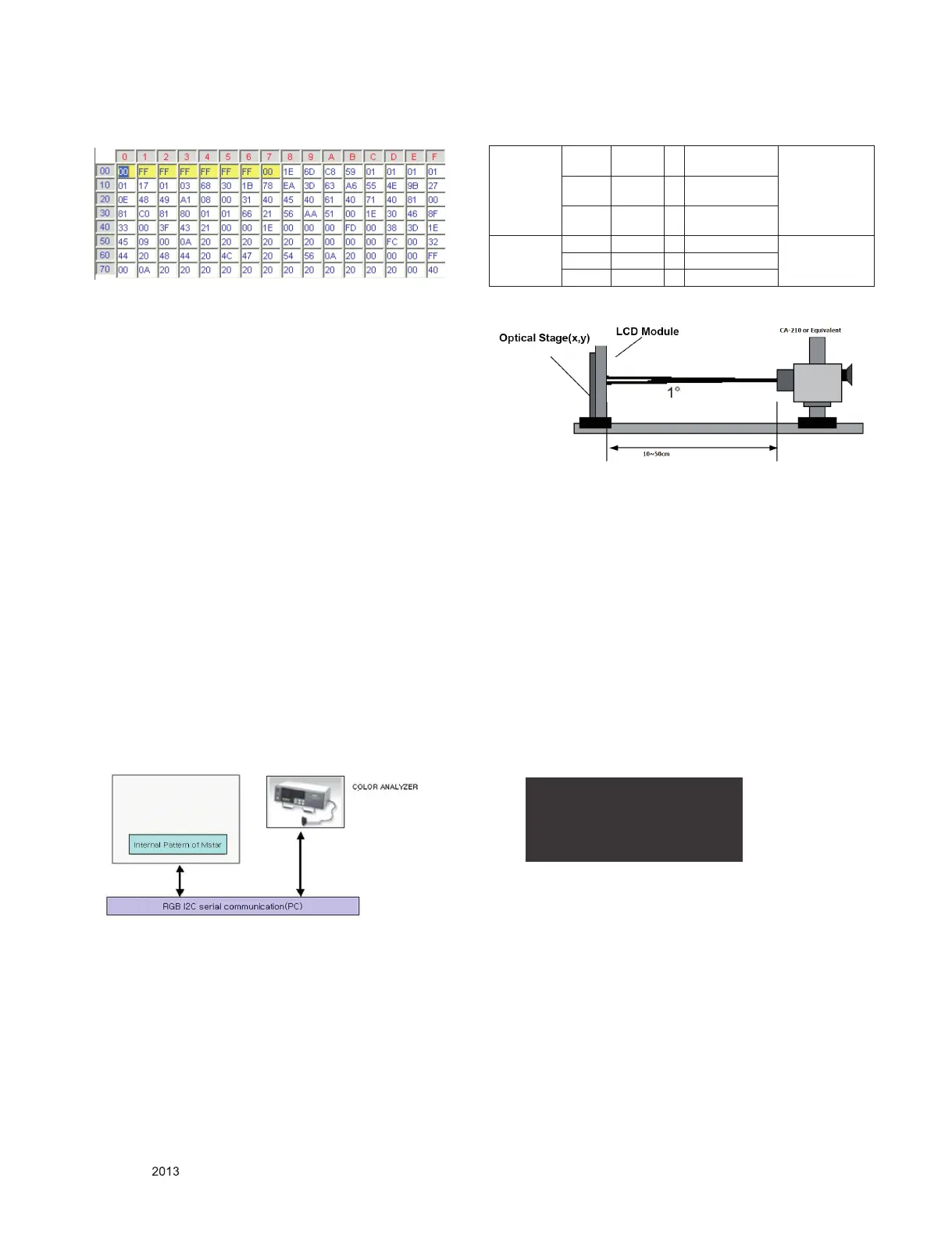

(1) RGB EDID Data
1) All data are HEXA
2) Adjustable Data :
**: week
***: year ex) when year 2008: input “12”
****: CHECK SUM (deferent along week, year)
5. Check of White Balance
RGB_Gains are fixed data for each model.
Insert D-sub jack (I2C) which is connected with PC
for White Balance or equivalent device.
→ Total Assembly line should be check whether the
color coordinate(x, y) data Refer to below table
were meet or not.
5.1. Required Equipment
■ Remote controller for checking W/B
■ Color Analyzer : CA-210
■ CH: 14 (LCD MNT, Normal) → 22LN4000
■ PC (for communication through RGB)
■ Pattern Generator (MSPG-925FS series)
5.2. Connecting diagram of equipment for
measuring(For Automatic Adjustment)
(Method 1, using IIC, You connect RGB Cable)
(Standard color coordinate and temperature when using the
CA210 equipment)
RGB_Gains are fixed data for each model
* When doing Adjustment, Please make circumstance as below.
* W/B condition
- Ambient Humidity : 20 % ~ 80 %
- Ambient Temperature : 25 ± 5 °C
6. Function Check
6.1. Check display and sound
■ Check input and Signal items. (cf. work instructions)
1. TV
2. AV (CVBS)
3. RGB (PC : 1366 x 768 @ 60hz)(Display only)
4. HDMI
7. Preset CH writes condition
(1) AC on time on only one after assembled automatically
(2) CH recover on SVC OSD manually
Color
Temperature
Cool 13,000k °K x = 0.269 (±0.03)
y = 0.273 (±0.03)
<Test Signal>
RF/AV
Inner pattern
(216gray, 85IRE)
Medium 9,300k °K x = 0.285 (±0.03)
y = 0.293 (±0.03)
Warm 6,500k °K X=0.313 (±0.03)
Y=0.329 (±0.03)
Luminance
(cd/m
2
)
Cool Min: 150 Typ : 200 <Test Signal>
(Full white,
100IRE)
Medium Min: 150 Typ : 200
Warm Min: 150 Typ : 200
System Control 2
EDID Download ►
Channel Recover ►
UTT Reset ►
