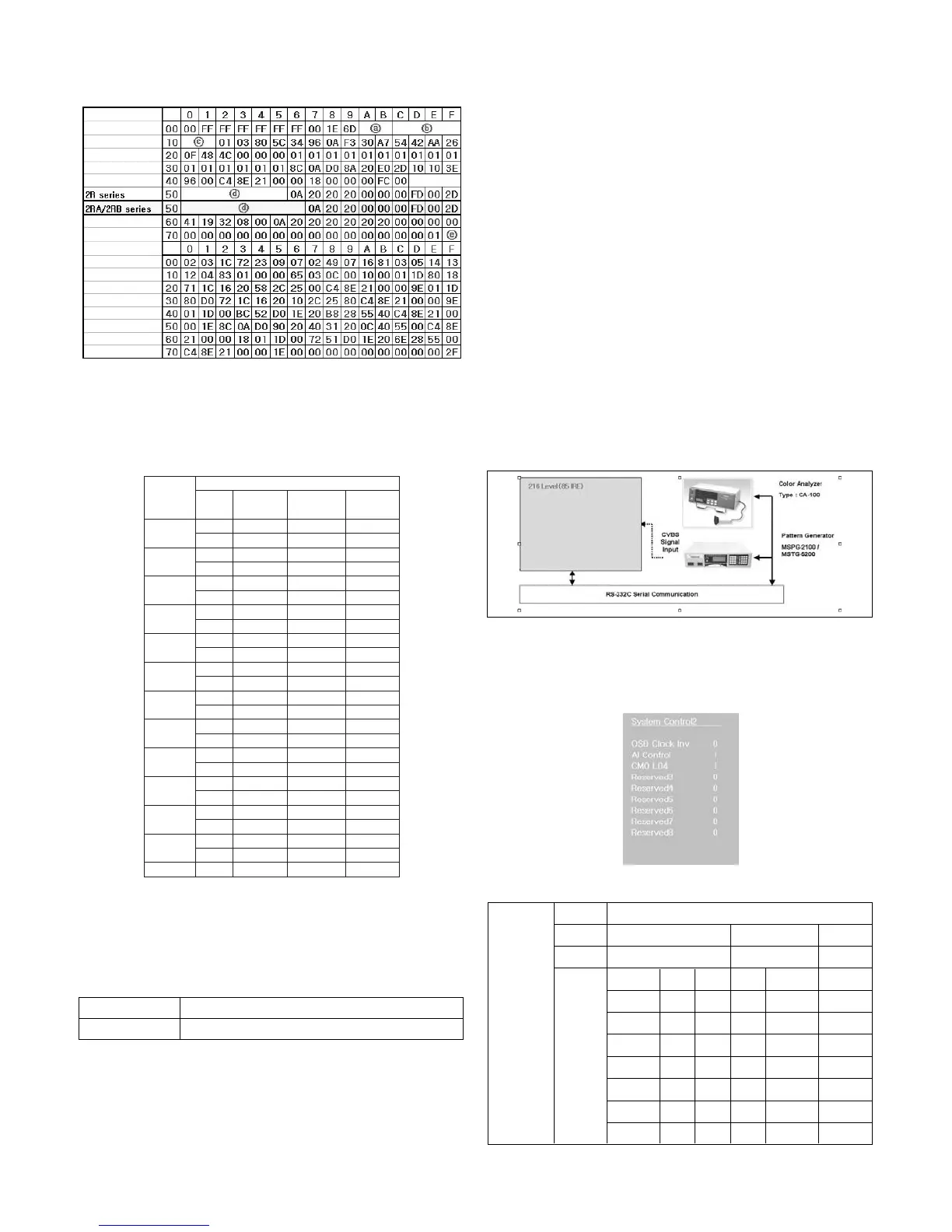

< EDID DATA HDMI Set : 256bytes>
[LC2R SERIES & LC2RA/LC2RB SEIRIES ONLY different 70
Line because of Model name]
=> Detail EDID Options are below(a, b, c, d, e)
a. Product ID
b. Serial No : Controlled on production line
c. Month, Year : Controlled on production line
ex) Montly: '03' => '03'
Year: '2005' => '0F'
d. Model Name(Hex):
e. Checksum: Changeable by total EDID data
6. Adjustment of White Balance
* In case of White Balance rework, you have to RESET the
previous White Balance data.
(You can do that by pushing the "IN-START" key in adjust
remocon and reset)
6.1 Required Equipment
- Remote controller for adjustment
-
l Color Analyzer (CA-110 or CA-210 or same product; ch : 9)
- Auto W/B adjustment instrument(only for Auto
adjustment)
- AV Pattern Generator
ZJ, TJ, CJ – model : 202(PAL-BDGHI),
pattern:78(216 Gray)
MJ – model : 207 (NTSC-J),
pattern : 78 (216 Gray)
6.2 Connecting diagram of equipment for
measuring (For Automatic Adjustment)
[Push the "POWER ON" key at the Adjust Remocon
before Adjustment of W/B, the Baud rate & PSM,
CSM will change 115200bps, Standard (MJ:
Optimum), Normal]
* In case of CMO 27” Production
If the Module is L04, you don’t need to change the CMO L04
option. But the Module is L01, you have to change the CMO
L04 option 1 -> 0. If not, the picture quality can be bad.
# Auto adjustment Map(RS-232C)
Communication
Type LP61A/C, LN61A
Protocol
Baud Rate
Data bit Stop bit Parity
115200 8 1 None
Protocol Index Cmd 1 Cmd 2 Data
Min Value
Max Value
Setting
Input Select
xb b
R Gain j a 00(00) 255(FF)
G Gain j b 00(00) 255(FF)
B Gain j c 00(00) 255(FF)
R Offset j d 00(00) 255(FF)
G Offset j e 00(00) 255(FF)
B Offset j f 00(00) 255(FF)
- 15 -
