- 9 -
ADJUSTMENT INSTRUCTION
1. Application Range
This spec sheet is applied all of the 32"/37” LCD TV, LP61A
chassis(HURRICANE 3 MIDDLE) by manufacturing LG TV
Plant all over the world.
2. Specification
2.1 Because this is not a hot chassis, it is not necessary to
use an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
2.2 Adjustment must be done in the correct order.
2.3 The adjustment must be performed in the circumstance of
25±5°C of temperature and 65±10% of relative humidity if
there is no specific designation.
2.4 The input voltage of the receiver must keep 100~220V,
50/60Hz.
2.5 Before adjustment, execute Heat-Run for 30 minutes at
RF no signal.
3. Adjustment items
3.1 PCB assembly adjustment items
O Download the VCTP main software (IC601,VCPT)
O Channel memory (IC603,EEPROM)
O Colorcarrier Adjustment
3.2 SET assembly adjustment items
O DDC Data input.
O Adjustment of White Balance.
O Factoring Option Data input.
4. PCB assembly adjustment
4.1 PCB assembly adjustment method
(Using VCTP Download program)

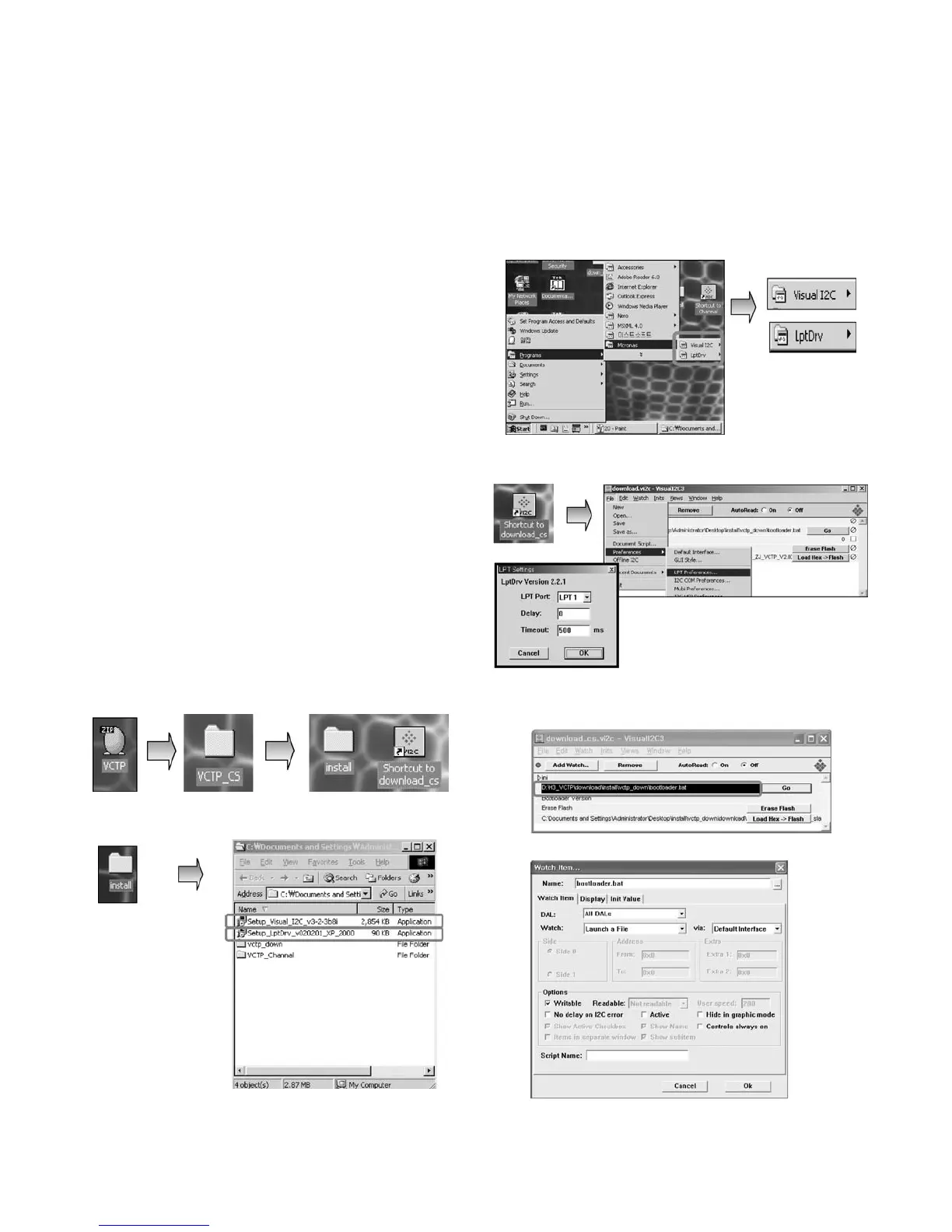

4.1.1.Download program installation
(1) Extract a Zip file
(2) Visual I2C & LPT Driver Installation
LPT Port Driver (LptDrv) Setups : Program Files > Micronas >
Visual I2C > Port_Driver
*Use for Windows 95/98 : Setup_LptDrv_v0104_9x.exe
*Use for Windows 2000/XP : Setup_LptDrv_v0202_XP_2000.exe
*
Use for Windows NT : Setup_LptDrv_v0104_NT.exe
(3) Verification (Start > Programs > Micronas > Visual
I2C or LptDrv)
(4) LPT delay setting (File > Preference > LPT
preferences)
(5) Exchange the bootloader.bat file
Install the LPT Driver
Install the Visual I2C
*LPT SETTING
- Delay => 1
- Timeout => 500 ms
=> Double click the Box area.
=> Double click the Box area.
To Next Page
