LG 32LK330U User Manual

4/22
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
1
2
3

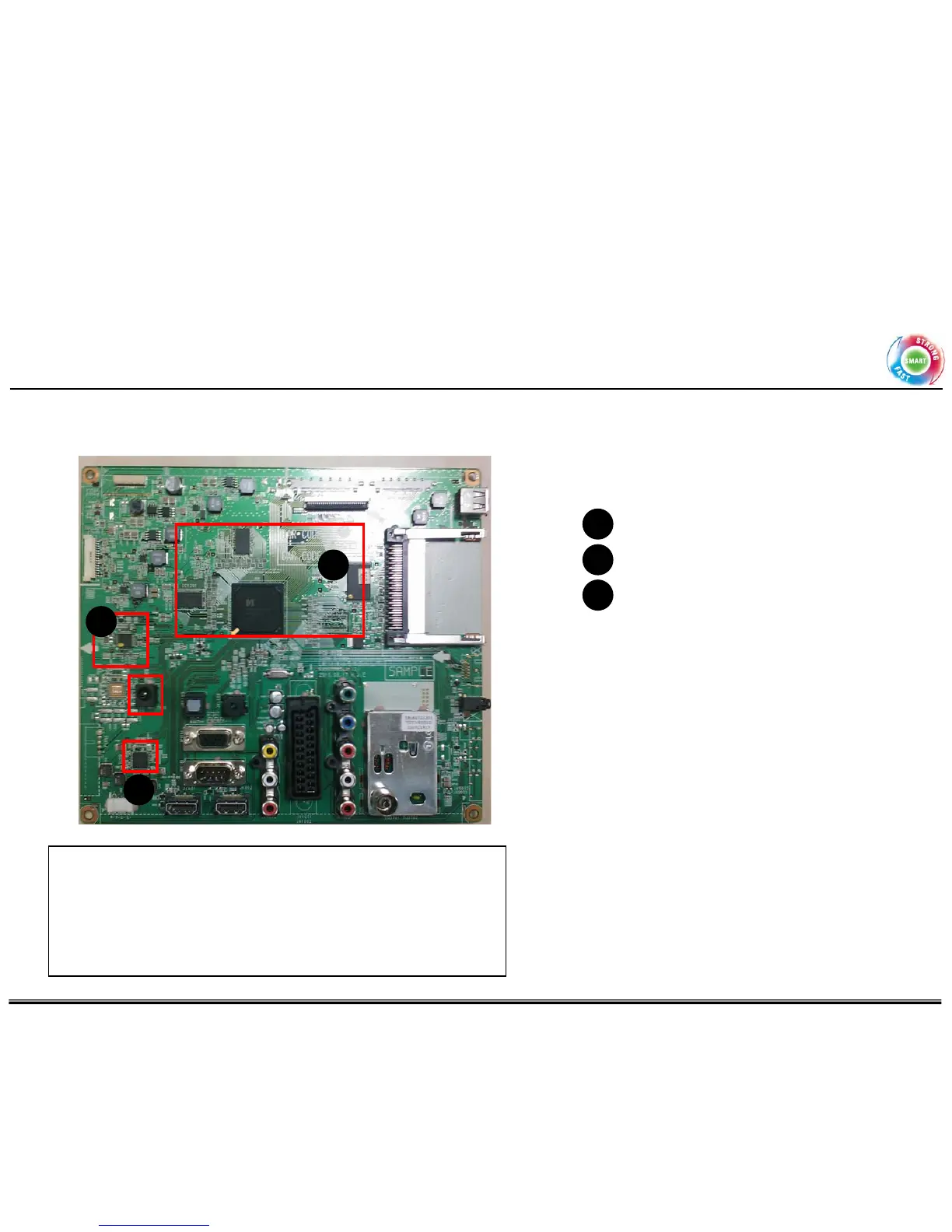

To LCD Module
Main PCB
1
Main processor, DDR Memory
Flash Memory
2
3
Micom for Key/IR sensing
Audio AMP (5W+5W)
* 19/22/26LV2500_S7 Reused (’11)
Main IC : LGE101_Mstar
Tuner Type : TDTJ-S001D (DVB-T/C)
Display Type (Resolution) : LED TV (1366 x 768)
Interface : HDMI 2EA , Component 1EA, AV 1EA, USB 1EA
Difference : Without FRC, HDMI Position , Resolution , Interface, Wafer
Position (Sub)
19/22/26LV2500
(50HZ)
Adapter

LG 32LK330U Specifications

General

Product color	Black
LED indicators	Y, Stand-by
3D	No
Annual energy consumption	132 kWh
Display diagonal	32 \
Display brightness	350 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Supported video modes	1080i, 1080p, 720p
Contrast ratio (dynamic)	70000:1
Display diagonal (metric)	80 cm
Supported graphics resolutions	1366 x 768
Certification	RoHs
Audio formats supported	MP3
Image formats supported	JPG
Video formats supported	DIVX, MPEG4
Audio (L/R) in	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1
Power consumption (standby)	0.3 W
Power consumption (typical)	91 W
RMS rated power	20 W

Weight and Dimensions

Depth (with stand)	206.8 mm
Width (with stand)	800 mm
Height (with stand)	565 mm
Weight (with stand)	9200 g
Depth (without stand)	73.8 mm
Height (without stand)	509 mm
Weight (without stand)	8200 g
