CUSTOMIZING SETTINGS
Picture ID
Picture ID is used to change the settings of a
specic display using a single IR receiver for
multi-vision. The set receiving the IR signal
communicates with another set via an RS-232C
connection. Each set is identied by a Set ID. If
you assign the Picture ID using the remote control,
only displays with the same Picture ID and Set ID
can be controlled remotely.
1 Press the red ON button on the remote control
to assign the Picture ID.
2 If you press the left/right buttons or press the
ON button repeatedly, the Picture ID cycles
through OFF and 1 to 4. Assign the ID you
want.

If you assign the Set ID to each set with
multi-vision, and then assign the Picture ID
using the red button on the remote control,
the key command is displayed for the set
with the same Set ID and Picture ID. A set
with different Set IDs and Picture IDs cannot
be controlled by IR signals.

For more information on how to assign the
Set ID, see "Set ID" on page 44.

The maximum value of the Picture ID can be
set in the Total Set ID menu.

Please refer to the Installation Manual for
more information on Total Set ID assignment.
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF

. , !

ABC

DEF

GHI

JKL

MNO

PQRS

TUV

1/a/A

- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF

. , !

ABC

DEF

GHI

JKL

MNO

PQRS

TUV

1/a/A

- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER

For example, if the Picture ID is assigned
to 2, the upper right display (Set ID: 2) can
be controlled by IR signals.

For each set, you can change the
settings for the PICTURE, AUDIO, TIME,
NETWORK and MY MEDIA menus or the
hot keys on the remote control.

If you press the green OFF button for
Picture IDs, the Picture IDs for all sets are
turned off. If you then press any button
on the remote control, all sets will start
working again.

Picture ID will be disabled while using the
MY MEDIA menu.
NOTE

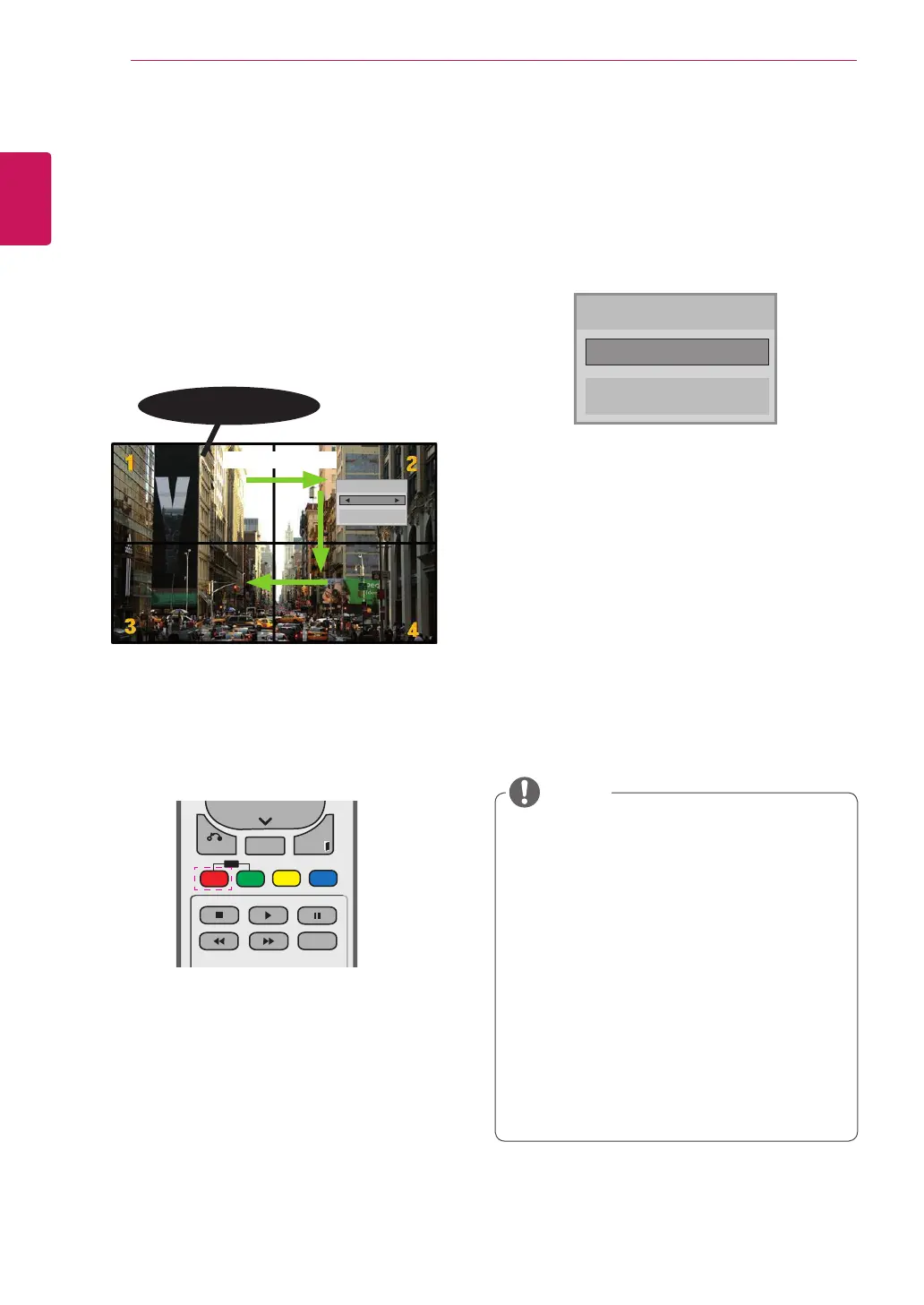

2X2 Multi-Vision (Total Set ID: 4)
Set IDs are assigned as shown in the picture.
Picture ID
Close
◄ Off ►
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
IR Receiver
RS-232C cable
Picture ID
Close
Off
