MAKING CONNECTIONS
DVI OUTAUDIO OUT
External Device Connection
Connect a HD receiver, DVD, or VCR player to the
Monitor set and select an appropriate input mode.

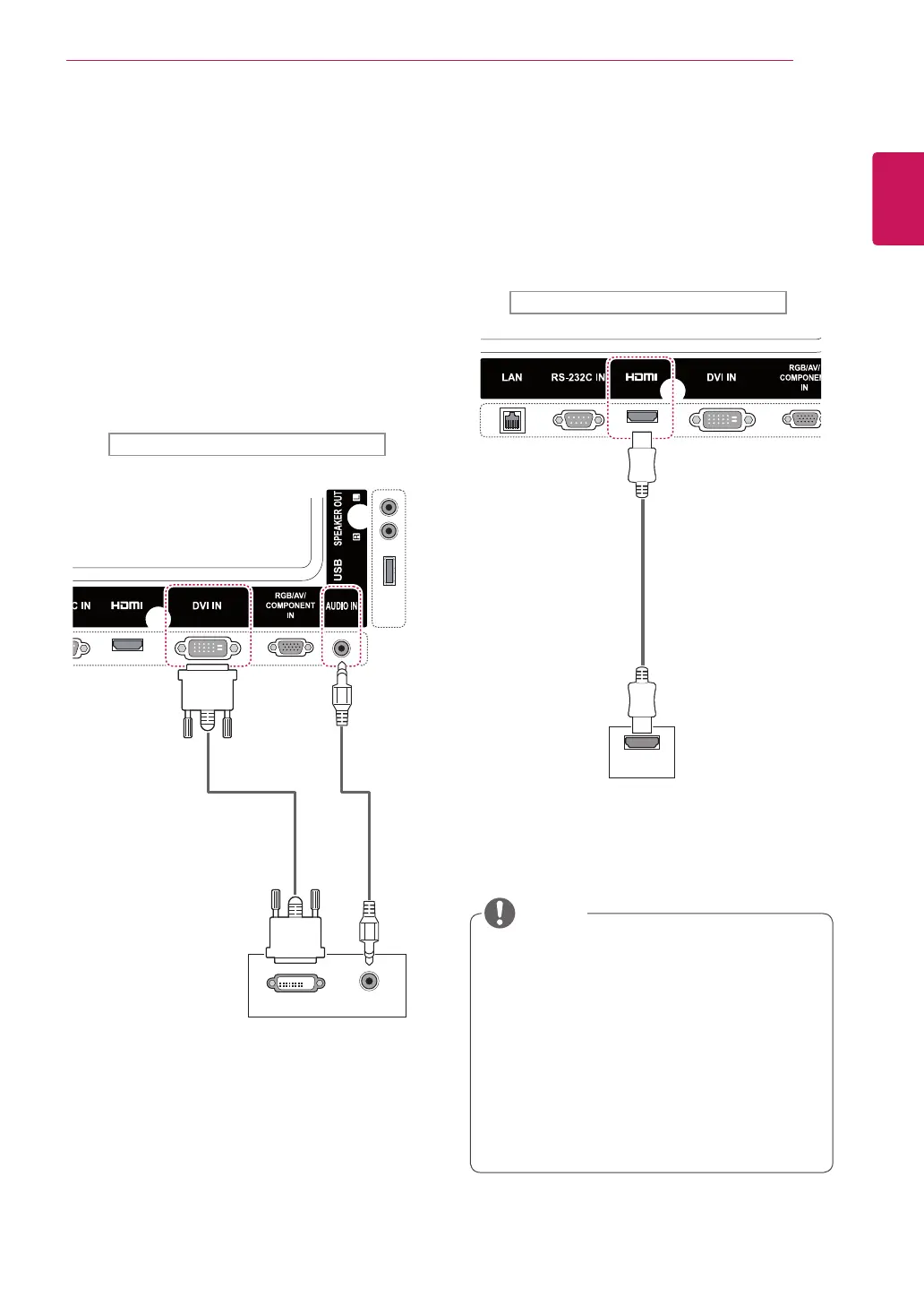

HDMI connection
Transmits the digital video and audio signals from
an external device to the Monitor set. Connect the
external device and the Monitor set with the HDMI
cable as shown on the following illustration.
Use a High Speed HDMI
®
/™ Cable.
High Speed HDMI
®
/™ Cables are tested to
carry an HD signal up to 1080p and higher.
Use a certified cable with the HDMI logo
attached. If you do not use a certified HDMI
cable, the screen may not display or a
connection error may occur.
Recommended HDMI cable types
-High-Speed HDMI
®
/™ Cable
-High-Speed HDMI
®
/™ Cable with Ethernet
NOTE
DVI connection
Transmits the digital video signal from an external
device to the Monitor set. Connect the external
device and the Monitor set with the DVI cable as
shown in the following illustration. To transmit an
audio signal, connect an optional audio cable.
(not
included)
(not
included)
(not included)
HDMI
Back of the product.
Back of the product.
