EXTERNAL EQUIPMENT SETUP
36
HD RECEIVER SETUP
ᯫ
To prevent the equipment damage, never plug in any power cords until you have finished connecting all
equipment.
ᯫ
I
This part of EXTERNAL EQUIPMENT SETUP mainly use picture of for 26LE5300.
Y, C
B/PB, CR/PR

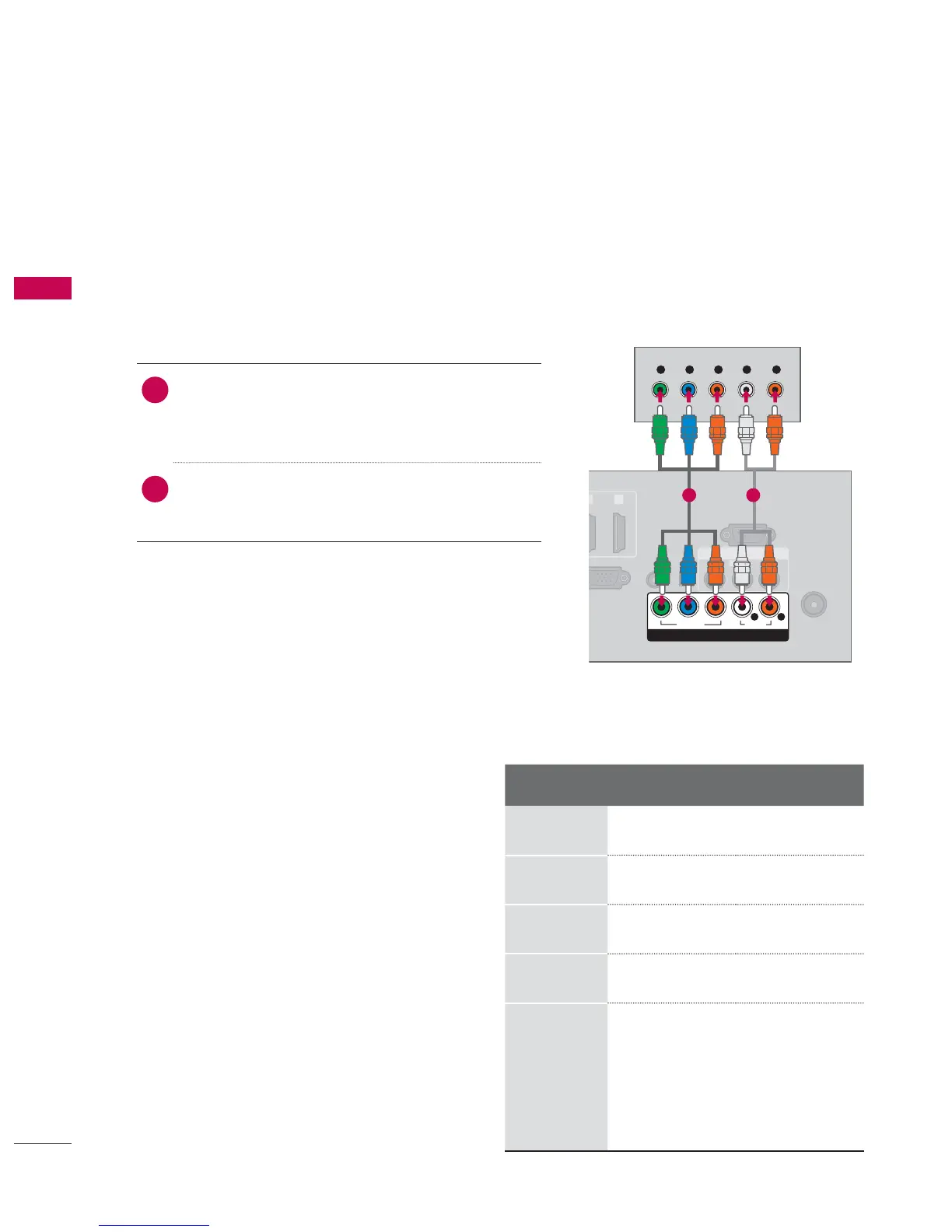

1. How to connect
1
Connect the video outputs
(
Y, P B, PR
)
of the
digital set-top box to the COMPONENT IN
VIDEO jacks on the TV. Match the jack colors (Y
= green, P
B = blue, and PR = red).
2
Connect the audio output of the digital set-top
box to the COMPONENT IN AUDIO jacks on
the TV.
2. How to use
ᯫ
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-
top box operation.
)
ᯫ
Select the Component input source on the TV
using the INPUT butt
on on the remote control.
Component Connection
This TV can receive digital over-the-air/digital cable signals without an external digital set-top box.
However, if you do receive digital signals from a digital set-top box or other digital external device.
Resolution
Horizontal
Frequency
(
KHz
)
Vertical
Frequency
(
KHz
)
720x480i
15.
73 59.94
15.73 60.00
720x480p
31.47 59.94
31.50 60.00
1280x720p
44.96 59.94
45.00 60.00
1920x1080i
33.72 59.94
33.75 60.00
1920x1080p
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
67.432 59.94
67.50 60.00
EXTERNAL EQUIPMENT SETUP
ANTENNA/
CABLE IN
B IN (PC)
AUDIO
RGB
I)
OPTI
DG
AUD T
A N
RS-232C IN
(
CONTROL&SERVICE)
2
AU
L
VIDEO
AUDIO
YP
B
P
R
L R
COMPONENT IN
Y L RP
B
P
R
1 2
