LG 37LD450 User Manual

39
EXTERNAL EQUIPMENT SETUP
DVD SETUP
Component Input ports
To get better picture quality, connect a DVD player to
the component input ports as shown below.
1. How to connect
1
Connect the video outputs
(
Y, P B, PR
)
of the
DVD to the COMPONENT IN VIDEO jacks on
the TV.
Match the jack colors
(
Y = green, P
B = blue, and
P
R = red
)
.
2
Connect the audio outputs of the DVD to the
COMPONENT IN AUDIO jacks on the TV.
2. How to use
ᯫ
Turn on the DVD player, insert a DVD.
ᯫ
Select the Component input source on the TV
using the INPUT button on the remote control.
ᯫ
Refer to the DVD player’s manual for operating
instructions.

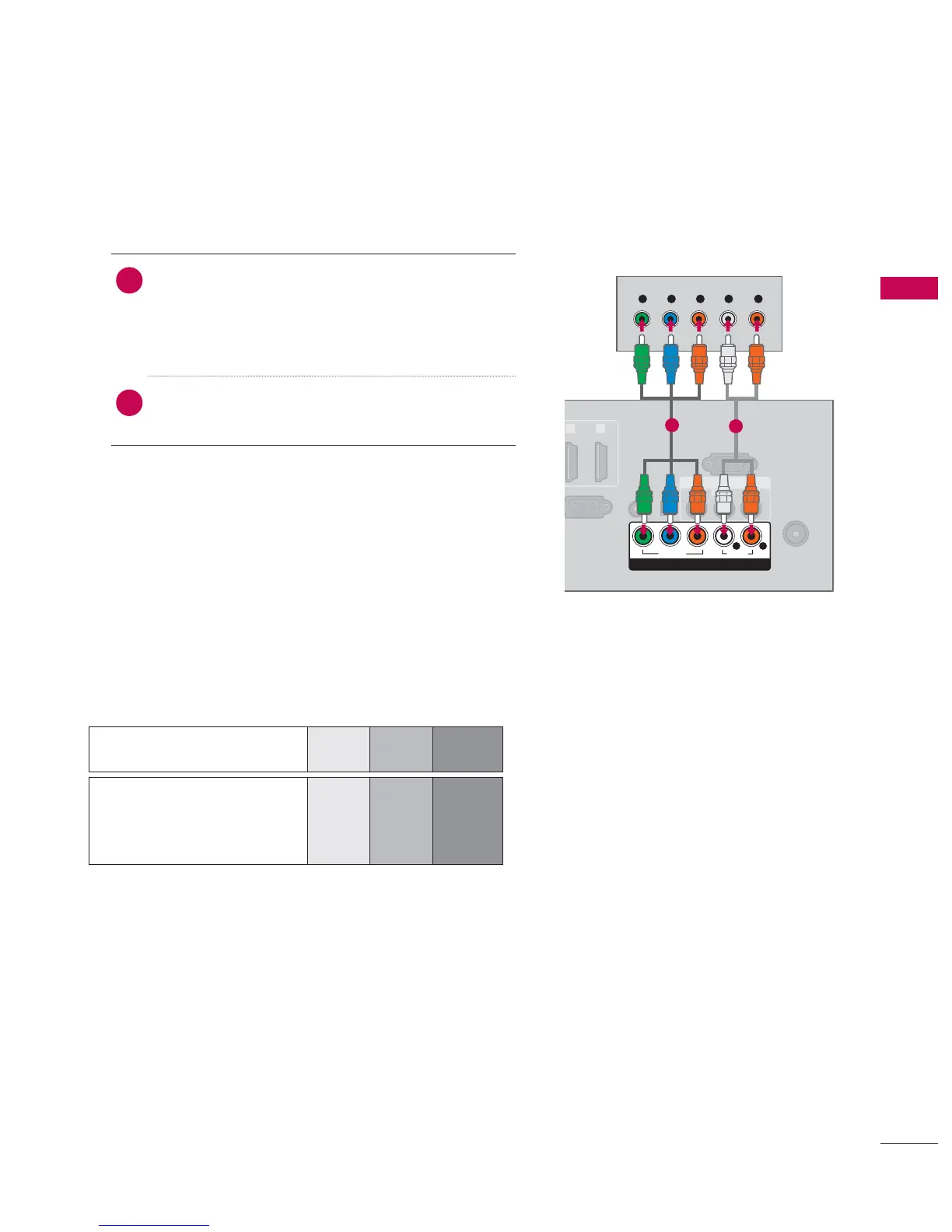

Component Connection
Component ports on the
TV
YPB PR
Video output ports
on DVD player
YPB PR
YB-YR-Y
YCbCr
YPbPr
ANTENNA/
CABLE IN
R
GB IN (PC)
AUDIO
RGB
(DV )
OPTI
DG
AUD T
A N
RS-232C IN
( CONTROL&SERVICE)
1 2
V AU
L(
VIDEO
AUDIO
YP B P R
L R
COMPONENT IN
Y L RP B P R
1
2

LG 37LD450 Specifications

General

Audio system	Dolby Digital
RMS rated power	20 W
Number of speakers	2
Game mode	Yes
Audio formats supported	MP3
RS-232 ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
LED indicators	Stand-by
Panel mounting interface	200 x 200 mm
Display diagonal	37 \
Display technology	LCD
Native aspect ratio	16:9
Native refresh rate	50 Hz
Contrast ratio (dynamic)	60000:1

Weight and Dimensions

Depth (with stand)	261 mm
Width (with stand)	916 mm
Height (with stand)	625 mm
Weight (with stand)	12500 g
Depth (without stand)	78 mm
Height (without stand)	575 mm
Weight (without stand)	10800 g
