APPENDIX
128

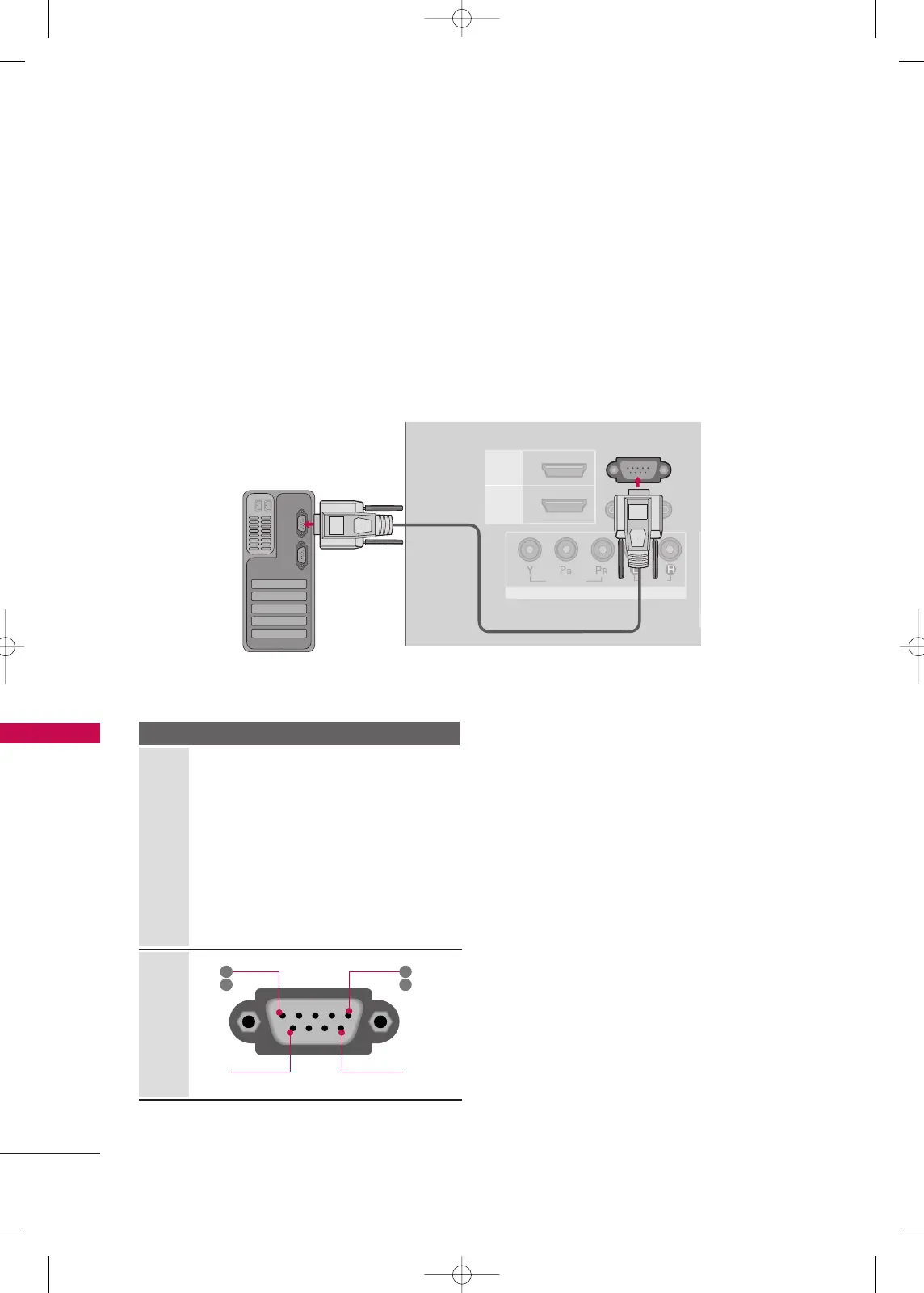

EXTERNAL CONTROL THROUGH RS-232C (Except 32/42/47/55SL80YR)
APPENDIX
RS-232C Setup
The RS-232C port allows you connect the RS-232C input jack to an external control device (such as a computer
or an A/V control system) to control the TV’s functions externally.
■
Note: RS-232C on this unit is intended to be used with third party RS-232C control hardware and software.
The instructions below are provided to help with programming software or to test functionality using telenet
software.
■
In USB and Bluetooth mode, it doesn’t support RS-232C function.
1
2
HDMI
/DVI IN
HDMI
RS-232C IN
(CONTROL)
RS-232C IN
(CONTROL)
RGB IN (PC)
S
COMPONENT IN
AUDIOAUDIO
VIDEOVIDEO
Type of Connector; D-Sub 9-Pin Male
No. Pin Name
1 No connection
2 RXD
(
Receive data
)
3 TXD
(
Transmit data
)
4 DTR
(
DTE side ready
)
5 GND
6 DSR
(
DCE side ready
)
7 RTS
(
Ready to send
)
8 CTS
(
Clear to send
)
9 No Connection
1
6
5
9
PC
Communication Parameters
■
Baud rate : 9600 bps
(
UART
)
■
Data length : 8 bits
■
Parity : None
■
Stop bit : 1 bit
■
Communication code : ASCII code
■
Use a crossed (reverse) cable.
■
Image shown may differ from your TV.
MFL58486305-Edit4-en- 5/28/10 2:43 PM Page 128

LG 37LH20R Specifications

General

Display diagonal	37 \
Progressive scan	No
Display brightness	500 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Supported video modes	1080p
Contrast ratio (dynamic)	60000:1
Screen format adjustments	4:3, 14:9
Supported graphics resolutions	1920 x 1080 (HD 1080)
RS-232 ports	1
PC in (D-Sub)	Yes
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	180 W
Product color	Black
RMS rated power	10 W
Number of speakers	2
Tuner type	Analog
Analog signal format system	PAL, PAL BG, PAL DK, PAL I, PAL N, SECAM, SECAM B/G, SECAM D/K
