PREPARATION
33

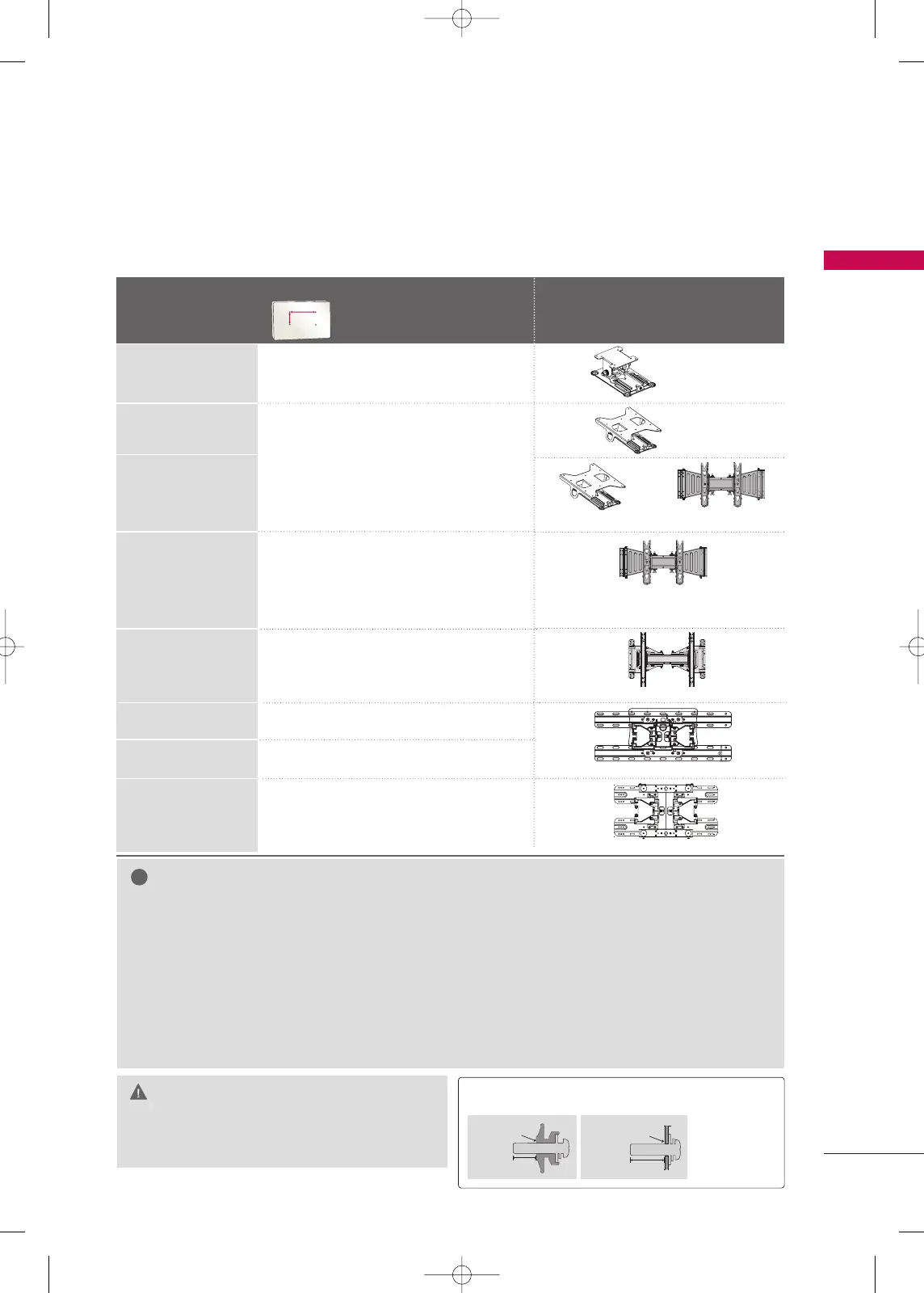

VESA WALL MOUNTING
Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please
contact your nearest installer.
If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.
We recommend that you use an LG brand wall mount when mounting the TV to a wall.
LG recommends that wall mounting be performed by a qualified professional installer.
For 32/42/47LH70YR: First you connect the USB extension cable to the USB IN terminal, and then hang it on the wall.
GG
Do not install your Wall Mount Bracket while your
TV is turned on. It may result in personal injury due
to electric shock.
CAUTION
GG
Screw length needed depends on the wall mount
used. For further information, refer to the instructions
included with the mount.
GG
Standard dimensions for wall mount kits are shown in
the table.
GG
When purchasing our wall mount kit, a detailed instal-
lation manual and all parts necessary for assembly are
provided.
GG
Do not use screws longer then the standard dimension,
as they may cause damage to the inside to the TV.
GG
For wall mounts that do not comply with the VESA
standard screw specifications, the length of the screws
may differ depending on their specifications.
GG
Do not use screws that do not comply with the VESA
standard screw specifications.
Do not fasten the screws too tightly, this may damage
the TV or cause the TV to a fall, leading to personal
injury. LG is not liable for these kinds of accidents.
GG
LG is not liable for TV damage or personal injury when
a non-VESA or non specified wall mount is used or the
consumer fails to follow the TV installation instructions.
NOTE
!
Model
VESA (A
*
B)
Standard Screw Quantity
Wall Mount Bracket (sold separately)
AA
BB
19/22LH20R,
19LU50R, 22LU50FR,
22LU40R
37/42LH20R,
42LF20FR,
37/42/47LH30FR,
42/47LH50YR,
42/47LH70YR,
42/47LH90QR
42/47SL80YR,
42/47SL90QR,
32/42LD410
26LH20R, 26LU50FR
10 0
*
10 0 M 4 4
200
*
10 0 M 4 4
200
*
200 M6 4
AW-47LG30M
RW120
RW230
AW-47LG30M
RW230
32LH20R, 32LF20FR,
32LH30FR,
32LH70YR,
32SL80YR, 32LD420
AW-55LH40M
55LH50YR,
55SL80YR
400
*
400 M6 4
12mm
12mm
Use screws 12mm(±0.5) long on the TV assembly side (sold separately).
With guide spacer
Without guide spacer
(For 42/47LH70YR, 42/47SL80YR, 42/47SL90QR)
22LD330
26/32LD330,32LD340,
26/32LD331C
10 0
*
10 0 M 4 4
200
*
10 0 M 4 4
LSW100B, LSW100BG
42LD420
200
*
200 M6 4
LSW200B, LSW200BG
