LG 37LH20R User Manual

EXTERNAL EQUIPMENT SETUP
48
EXTERNAL EQUIPMENT SETUP
OTHER A/V SOURCE SETUP
1
2
HDMI
DVI IN
HDMI
RS-232C IN
(CONTROL)
RGB IN (PC)
USB IN
SERVICE ONLY
AUDIO IN
(RGB/DVI)
ANTENNA
IN
ANTENNA
IN
AVAV
COMPONENT IN
AUDIOAUDIO
VIDEOVIDEO
VARIABLE AUDIO OUTVARIABLE AUDIO OUT
OUT
L(L(MONO)MONO)
R
AUDIOAUDIO
VIDEOVIDEO
IN
L R
VIDEO
Camcorder
Video Game Set
Connect the
AAUUDDIIOO
/
VVIIDDEEOO
jacks
between TV and external equipment.
Match the jack colors
.
(
Video = yellow, Audio Left = white, and
Audio Right = red
)

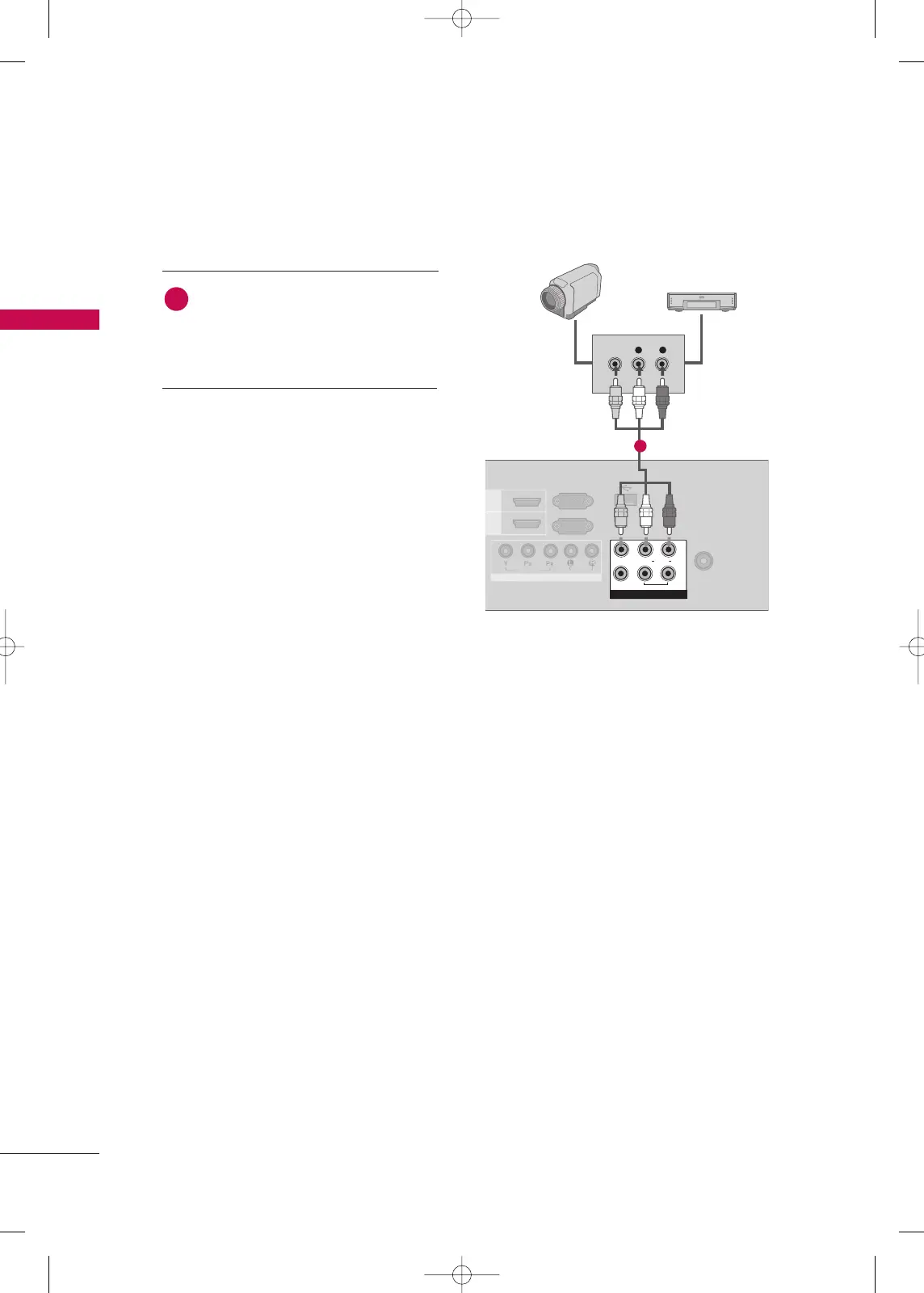

1. How to connect
2. How to use
■
Select the
AA VV
* or
AAVV11
*/
22
* input source on
the TV using the
IINNPPUUTT
button on the remote
control.
■
Operate the corresponding external equipment.
1
1
*
AA VV
: For 19/22/26/32/37/42LH20R,
19LU50R, 22LU50FR, 22LU40R,
42/47SL90QR, 22LD330
*
AAVV11
/
22
: For 32/42LF20FR,
32/37/42/47LH30FR, 26LU50FR,
42/47/55LH50YR, 32/42/47LH70YR,
42/47LH90QR, 32/42/47/55SL80YR,
26/32LD330, 32/42LD410, 32/42LD420,
32LD340, 26/32LD331C
MFL58486305-Edit1-en- 5/28/10 2:32 PM Page 48

LG 37LH20R Specifications

General

Display diagonal	37 \
Progressive scan	No
Display brightness	500 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Supported video modes	1080p
Contrast ratio (dynamic)	60000:1
Screen format adjustments	4:3, 14:9
Supported graphics resolutions	1920 x 1080 (HD 1080)
RS-232 ports	1
PC in (D-Sub)	Yes
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	180 W
Product color	Black
RMS rated power	10 W
Number of speakers	2
Tuner type	Analog
Analog signal format system	PAL, PAL BG, PAL DK, PAL I, PAL N, SECAM, SECAM B/G, SECAM D/K
