ENGLISH
21
MAKING CONNECTIONS

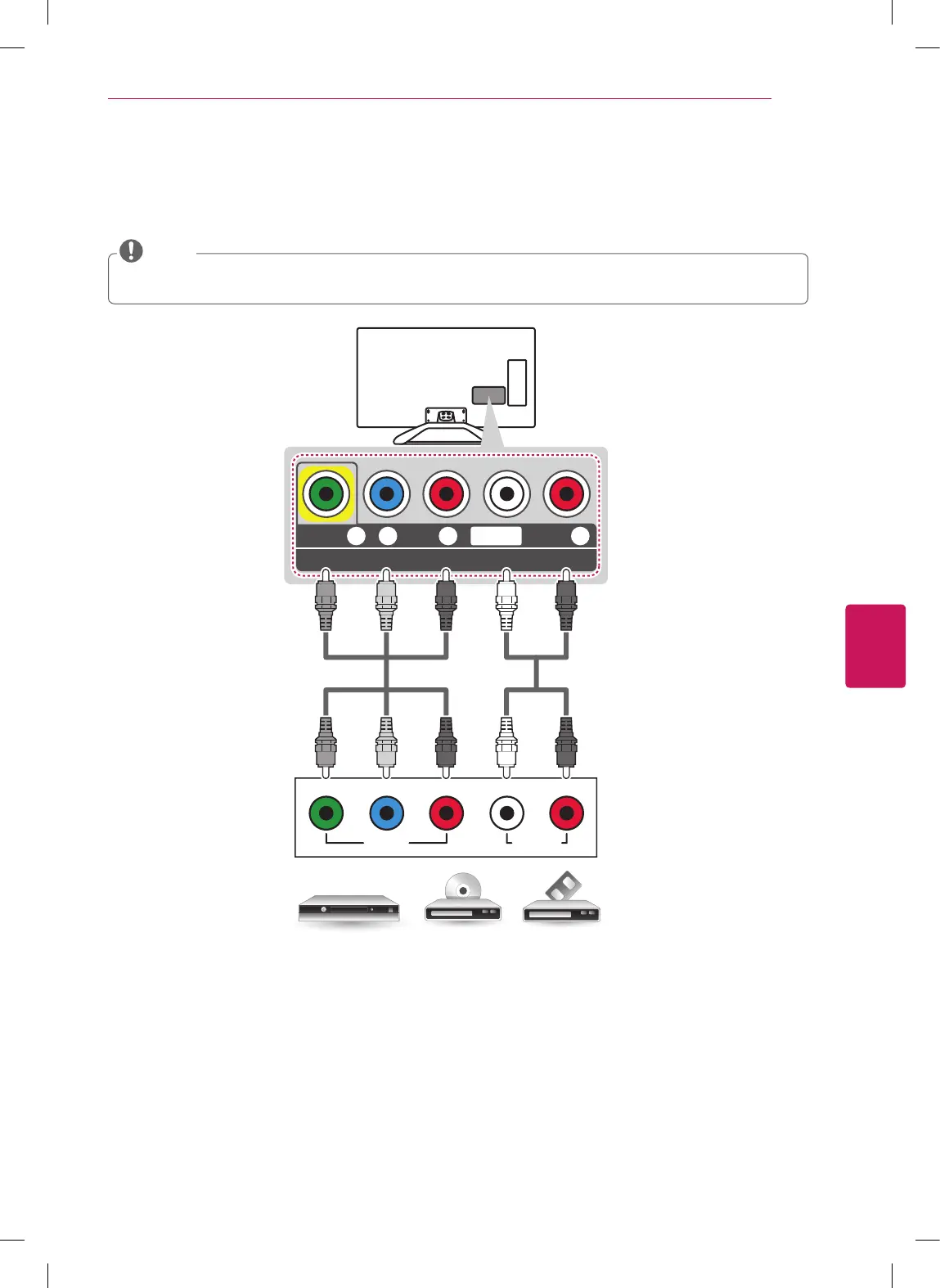

Component Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with
a component cable as shown in the following illustration.
If cables are installed incorrectly, it could cause the image to display in black and white or with distorted color.
Check to ensure the cables are matched with the corresponding color connection.
NOTE
PB PR
Y RL
VIDEO AUDIO
COMPONENT IN / AV IN 1
VIDEO/
PB PR
Y R
AUDIO
L/MONO
VCR / DVD / Blu-Ray / HD Cable Box
GREEN
RED
BLUE
(*Not Provided)
RED
WHITE
GREEN
RED
BLUE
RED
WHITE
(*Not Provided)
To Next Page
