LG 42LH260H User Manual

206-4118
PAGE 6
Setup Checklist
Installation and Setup Checklist
__ Unpack TV and all accessories.
__ Install batteries in remote control.
__ Install TV on Vesa Mount or Stand.
Note: It may be advisable to make all hard-
wire connections before installing on Vesa
mount or stand, as appropriate.
Hardware Connections
__ Install any additional hardware as
appropriate to your institution, LAN etc.
Hardwire Connections
__ Make all connections to rear Jack Pack and
RF antenna on MPI card.
__ Make all connections to signal, interactive
resources and Aux sources as appropriate.
Installer Menu Items Setup
__ Configure all relevant Installer menu items
as required of your institution.
TV Menus Configuration
Configure TV features for the end user.
__ Channel
__ Picture
__ Audio
__ Option
__ Time
__ Lock
__ Choose on screen menu language.
(English is the default language.)
Commercial Mode Setup
__ Commercial Mode Setup, see next page.
Software Installation
__ Install or configure any software as applic-
able; PPV etc.
Additional Features Setup
See page 5, Table of Contents.
__ Select viewing source on TV.

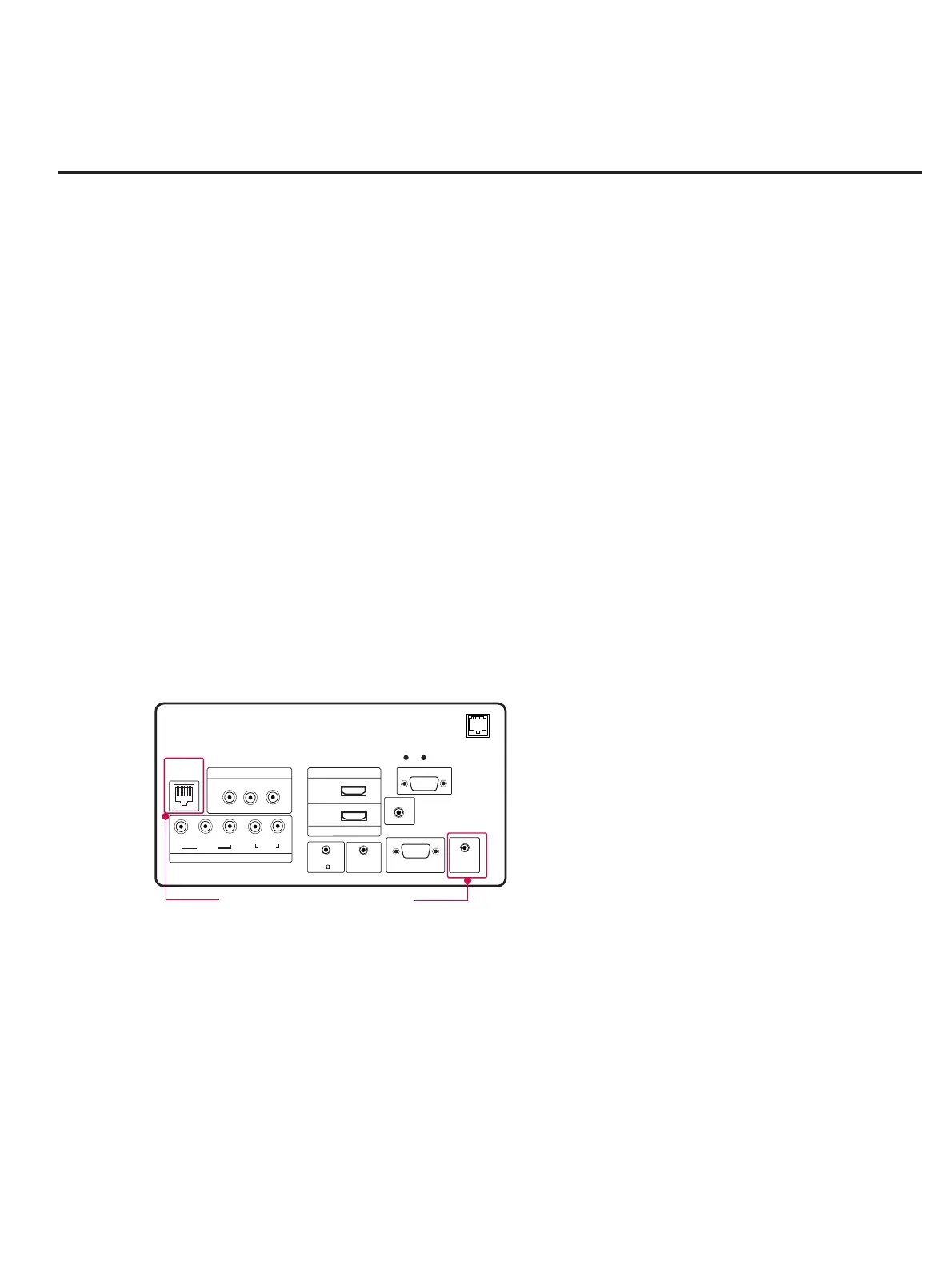

HDMI
GAME
CONTROL
COMPONENT IN
VIDEO
AUDIO
R
L
RGB IN (PC)
RS-232C IN
(SERVICE ONLY)
UPDATE
RESET
AUDIO IN
REMOTE
CONTROL OUT
SPEAKER OUT
(8 )
PB
Y
P
R
.....
.....
.....
.....
....
..........
..........
2
1
RJP
AV IN 1
VIDEO
AUDIO
R
L(MONO)
HDMI/DVI IN
TV-LINK
CFG
(RGB / DVI)
Except 32LH240H

LG 42LH260H Specifications

General

Equalizer	Yes
Audio system	SRS TruSurround XT
RMS rated power	20 W
Built-in subwoofer	No
Number of speakers	2
Equalizer bands quantity	5
Product color	Black
Panel mounting interface	200 x 200 mm
Comb filter	3D
Display diagonal	42 \
Display brightness	500 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Supported video modes	1080p
Contrast ratio (dynamic)	20000:1
Supported graphics resolutions	1920 x 1080 (HD 1080)
Package depth	228.6 mm
Package width	1330.95 mm
Package height	769.62 mm
Package weight	21180 g
Audio formats supported	MP3
Image formats supported	JPG
Video formats supported	H.264, MPEG2, MPEG4
Placement supported	Horizontal
Mean time between failures (MTBF)	50000 h
Certification	RoHS
HDMI version	1.3
RS-232 ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC

Weight and Dimensions

Depth (with stand)	294.64 mm
Width (with stand)	1026.15 mm
Height (with stand)	713.74 mm
Weight (with stand)	18600 g
Depth (without stand)	86.36 mm
Height (without stand)	652.78 mm
Weight (without stand)	16780 g
