Installer Overview
This is the commercial mode setup guide only.
Operating Installer Menu
To set up the controls for the TV you will need to know how to enter
the TV Installer menu and make changes to the default values as
required. If necessary, familiarize yourself with the TV Installer menu
and how to make and save changes in the menu.

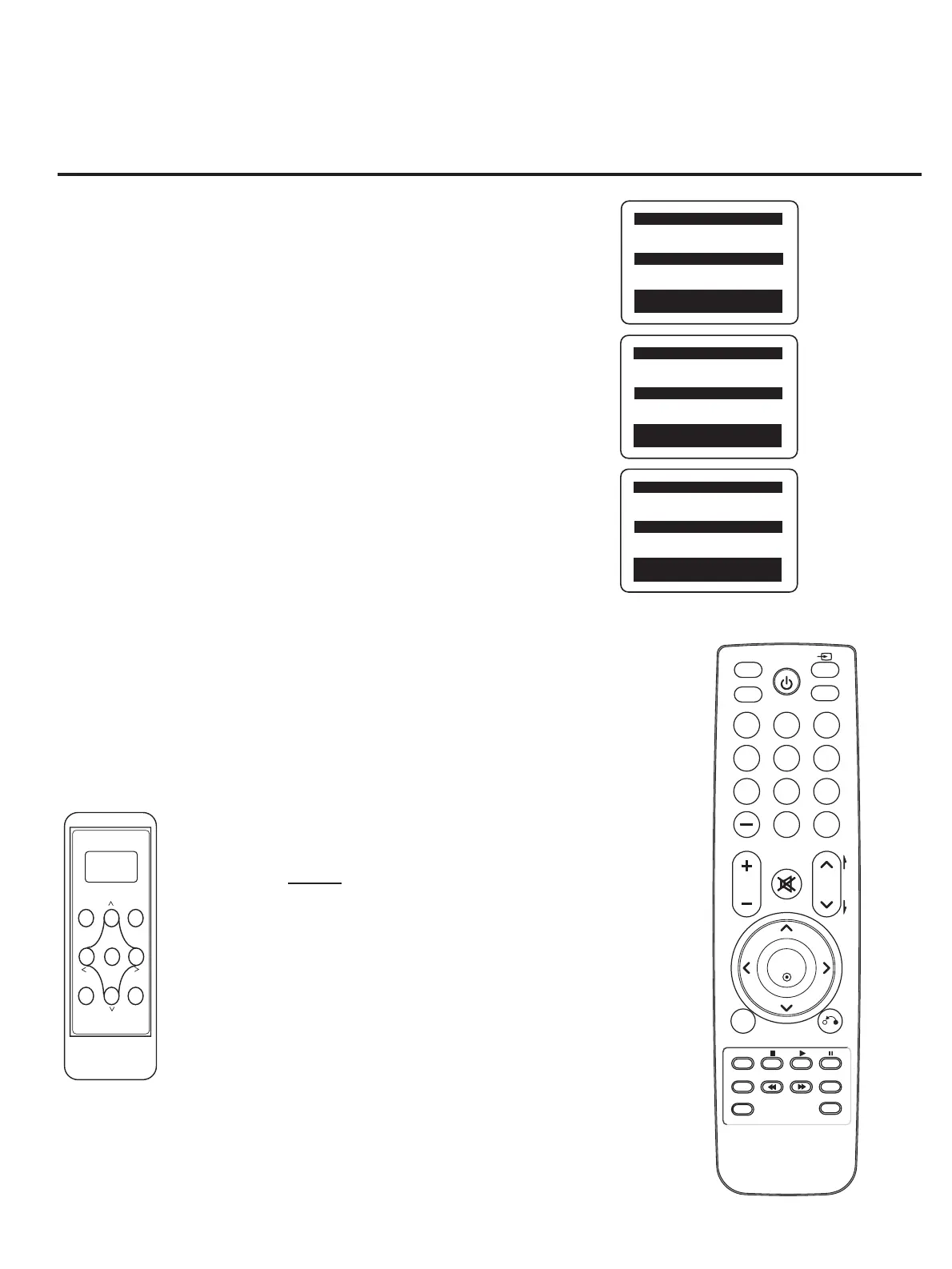

LG Installer Remote
You will need an LG Installer remote control similar to the one
shown to the right. The installer remote must have a “Source” but-
ton or its equivalent. The remote shown in this manual has “INPUT”
-- this button serves the purpose of a Source button.
The TV’s clonable features need to be set up. This is a critical step.
If the Master TV display panel’s clonable features like adding channel
icons or channel labels are not done correctly, then the cloned TVs
will all have problems. Refer to the Owner’s Manual for other TV fea-
tures: Video, Audio, Closed Captions, V-Chip, etc.
TLL-1100A Clone Programmer
The TLL is a very simple cloner to use. It can be set up to clone a
master TV setup and transfer it into a target TV. Cloning is accom-
plished using the TV/Cloner MPI ports for communica-
tion. Be sure the Master TV is set up completely.
Cloning is only possible when the TV is tuned to an
Aux source or An
alog channel, not a digital channel.
Typical
000 INSTALLER SEQ 000
UPN 000-000-000-000 FPGA E0F1
PTC V1.00.000 CPU V3.06.00
XXLH240H INSTALLER MENU
000 INSTALLER SEQ 000
UPN 000-000-000-000 FPGA E0F1
PTC V1.00.000 CPU V3.06.00
XXLH250H INSTALLER MENU
000 INSTALLER SEQ 000
UPN 000-000-000-000 FPGA E0F1
PTC V1.00.000 CPU V3.06.00
XXLH260H INSTALLER MENU
