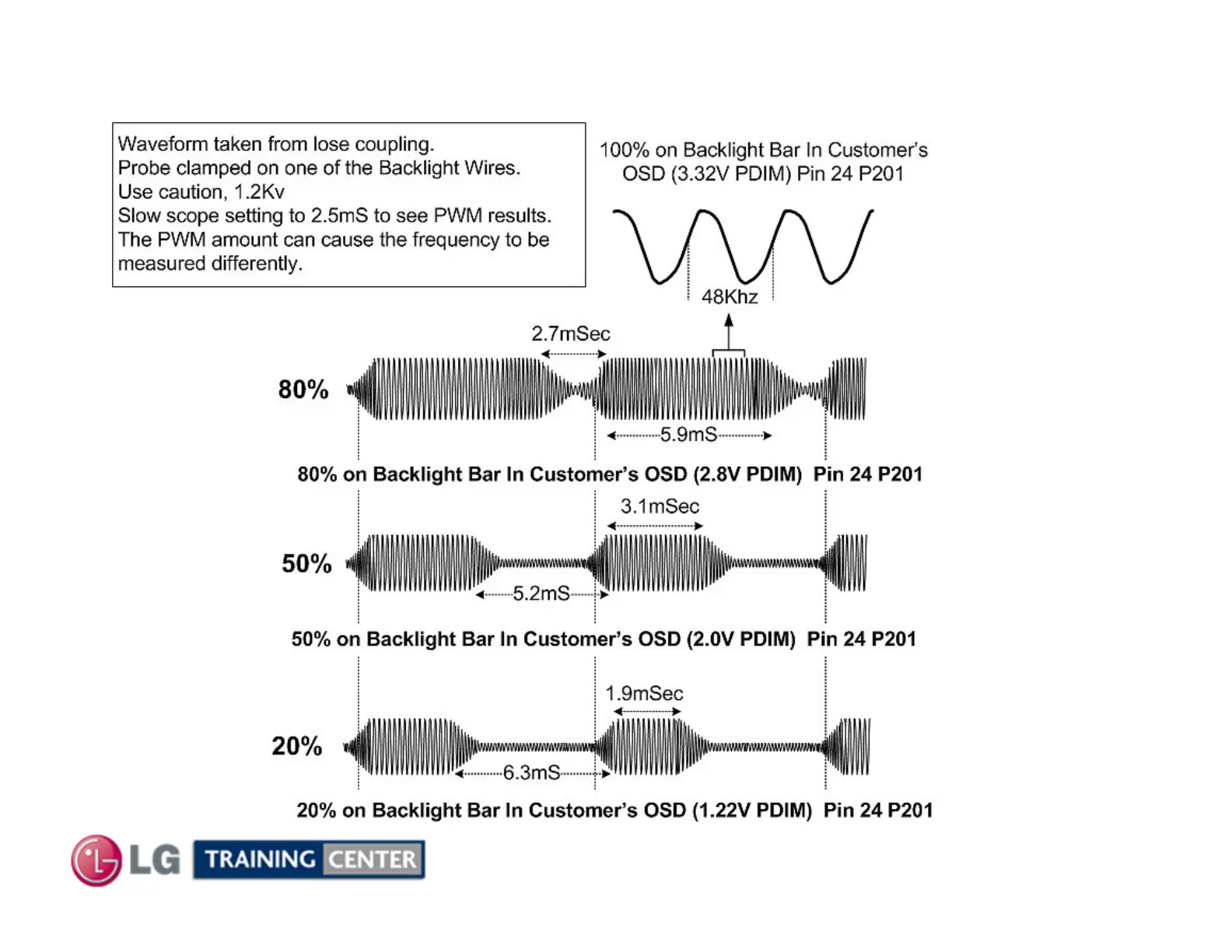

Power Supply Backlight Drive Signal Effects
Power Supply Backlight Drive Signal Effects
PWMDIM
manipulates
the Burst
Triangle
Oscillator in
the ballast
drive IC.
ADIM also
manipulates
the Burst
Triangle
Oscillator
But it is not
used.
Note:
Backlights will
attempt to fire 4
time. During these
attempts, the Error
line will change
from 5V to 0V.
0V when lamp tries
to fire or is lit.
5V when the lamps
are not lit.
After 4 attempts, if
the Error Out line
returns to 5V, this
tells the Micro to
turn the set off.
