MAKING CONNECTIONS
Composite connection

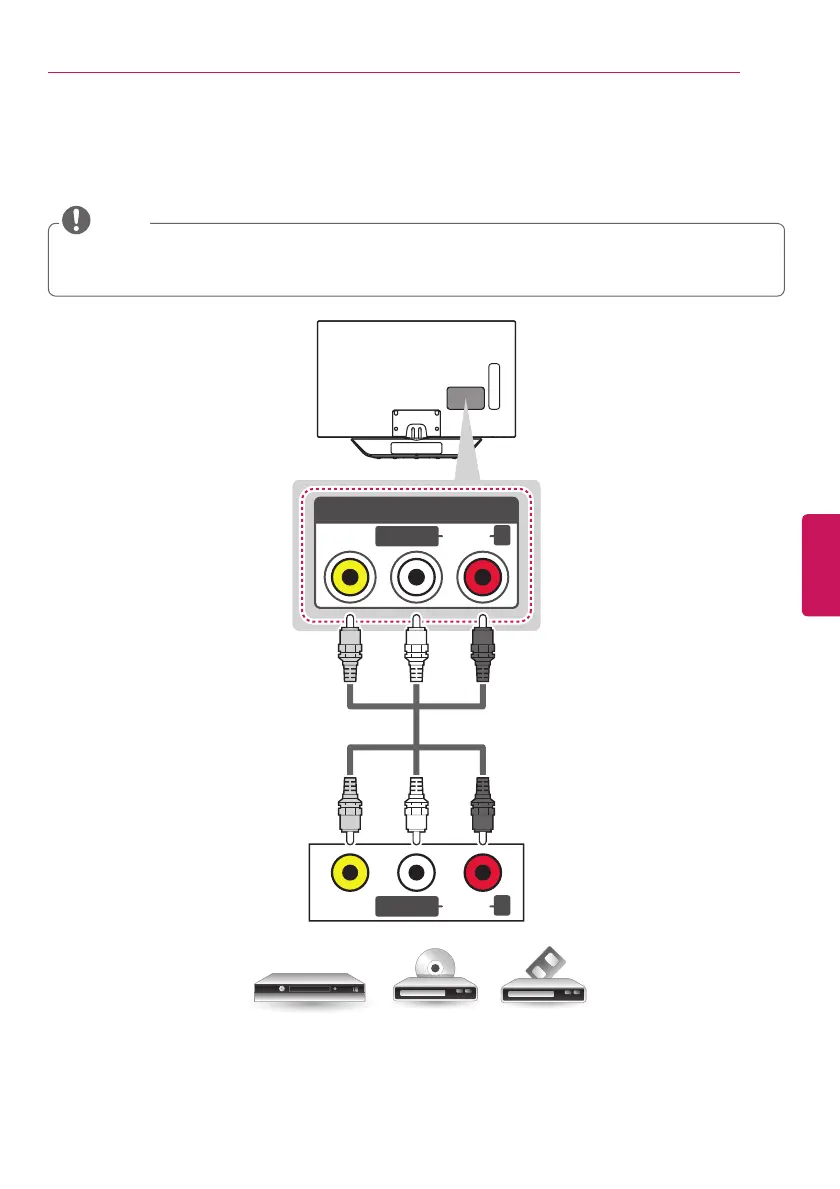

Transmits analog video and audio signals from an external device to the TV. Connect the external device
and the TV with the composite cable as shown in the following illustration.
If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the
TV.
Check to ensure the cables are matched with the corresponding color connection.
NOTE
VIDEO
R
AUDIO
L/MONO
AV IN 2
VIDEO
R
AUDIO
L/MONO
(*Not provided)
VCR / DVD / Blu-Ray / HD Cable Box
RED RED
WHITE WHITE
YELLOW YELLOW
To Next Page
