2 Press the red ON button on the remote
control to assign the PICTURE ID.
1 Assign the Set ID to the installed monitors
as shown below.
3 Assign the Set ID to the selection of your
choice.
• A set with a different Set ID from the
PICTURE ID cannot be controlled by IR
signals.

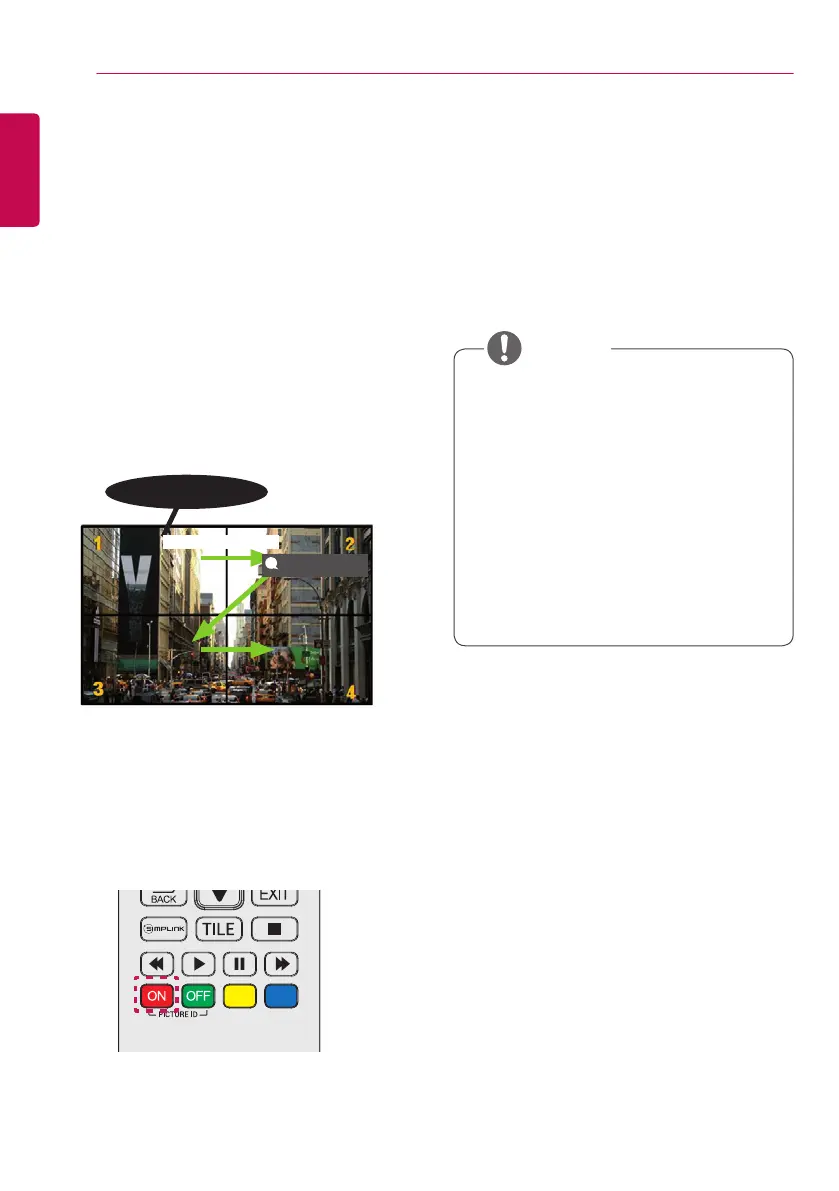

PICTURE ID Settings
PICTURE ID is used to change the settings of a
specific set (display) using a single IR receiver
for multi-vision. Communication is possible
between a monitor with an IR receiver and
other monitors using RS-232C cables. Each
monitor is identified by a Set ID. If you assign
the PICTURE ID using the remote control, only
displays with matching PICTURE ID and Set ID
can be controlled remotely.
• If PICTURE ID is set to 2, only the upper
right monitor, which has a Set ID of 2, can
be controlled by IR signals.
• If you press the green OFF button for
PICTURE ID, the PICTURE IDs for all
monitors are turned off. If you then press
any button on the remote control, all
monitors can be controlled by IR signals
regardless of Set ID.
• With PICTURE ID ON, you can only
increase the PICTURE ID by 1. You cannot
decrease it.
NOTE
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
IR & Light Sensor
RS-232C cables
PICTURE ID ON [2]
