EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP

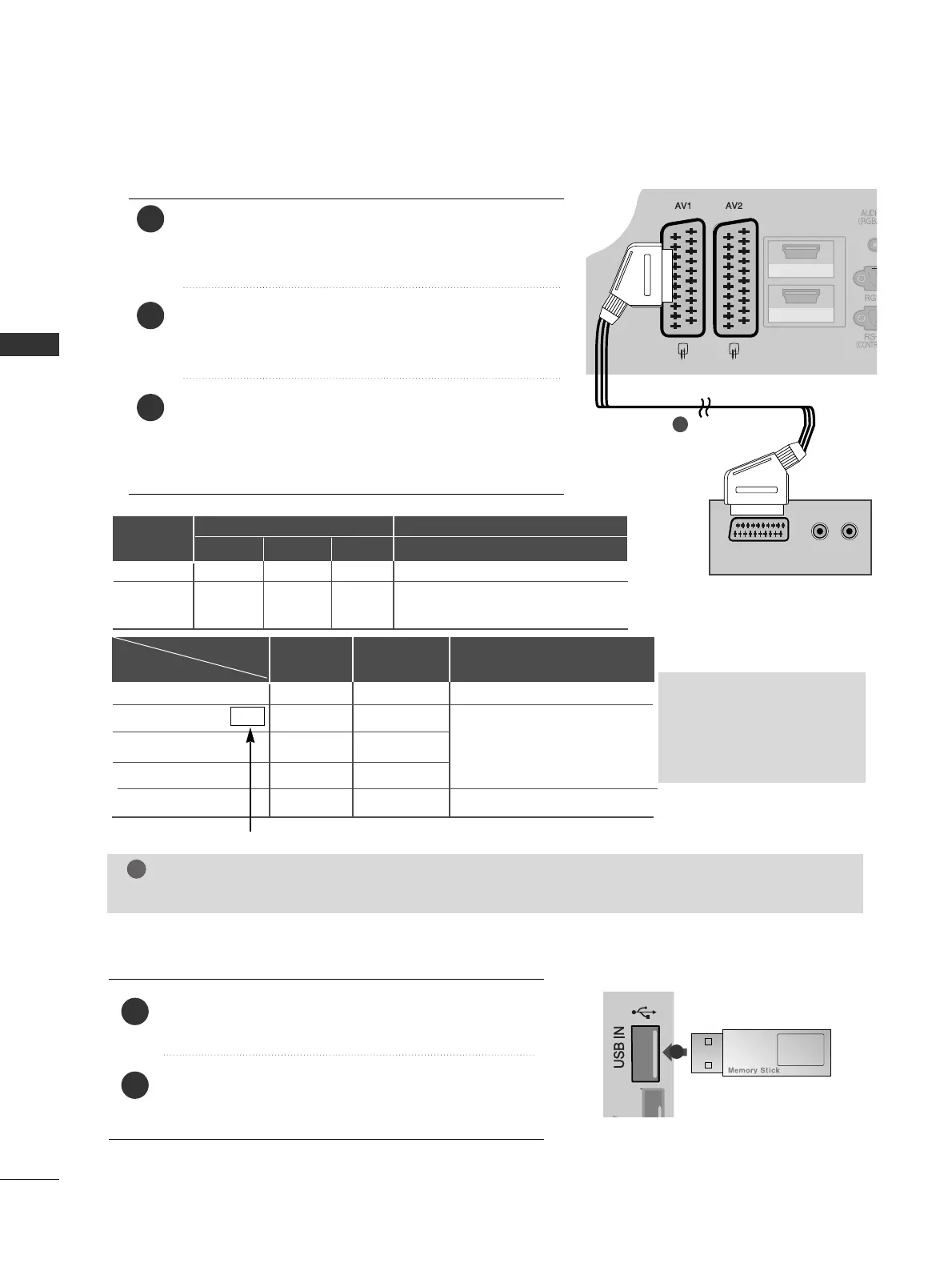

CONNECTING WITH A EURO SCART CABLE
AV IN 3
L/MONO
R
AUDIO
VIDEO
S-VIDEO HDMI IN 3
HDMI/DVI IN
HDMI IN
1
2
(R) AUDIO (L)
AUDIO/
VIDEO
COMPONENT IN
1
2
3
1
Connect the Euro scart socket of the external equip-
ment (DVD, VCR, etc.) to the
AA VV11
Euro scart socket on
the TV.
Turn on the external equipment.
(
Refer to the external equipment's manual for operating
instructions.)
Select
AA VV11
input source using the
IINNPPUUTT
button on
the remote control.
If connected to
AA VV22
Euro scart socket, select
AA VV22
input source.
Scart
AV1
AV2
Input
Video Audio RGB
Output
Video, Audio
Analogue only
Analogue
, DTV, AV1, AV2, AV3(Except for
42/50PJ1**, 42/50PJ2** , 50/60PK2**) out-
put is available.
OOO
OOX
GG
TV Out : Outputs analogue
TV signals.
Monitor Out: Outputs
the current screen image.
Digital TV
Analogue TV, AV1,AV3
Component/RGB
HDMI
AV2
AV1
(TV Out)
XO O
OO O
OX
XX
OO O
AV2
(Monitor Out)
AV2
(When DTV scheduled recording is in
progress using recording equipment.)
(The input mode is converted to
DTV.)
Output Type
Current
input mode
(Except for 42/50PJ1**, 42/50PJ2** , 50/60PK2**)
NOTE
!
GG
Any Euro scart cable used must be signal shielded.
USB SETUP (Except for 42/50PJ1**, 42/50PJ2** , 50/60PK2
**
)
HDMI IN 3
L/MONO
R
AUDIO
VIDEO
AV IN 3
1
Connect the USB device to the
UUSSBB IINN
jack on the
TV.
After connecting the
UUSSBB IINN
jack, you use the
UUSSBB
function. (
GG
pp..4488
)
2
1
