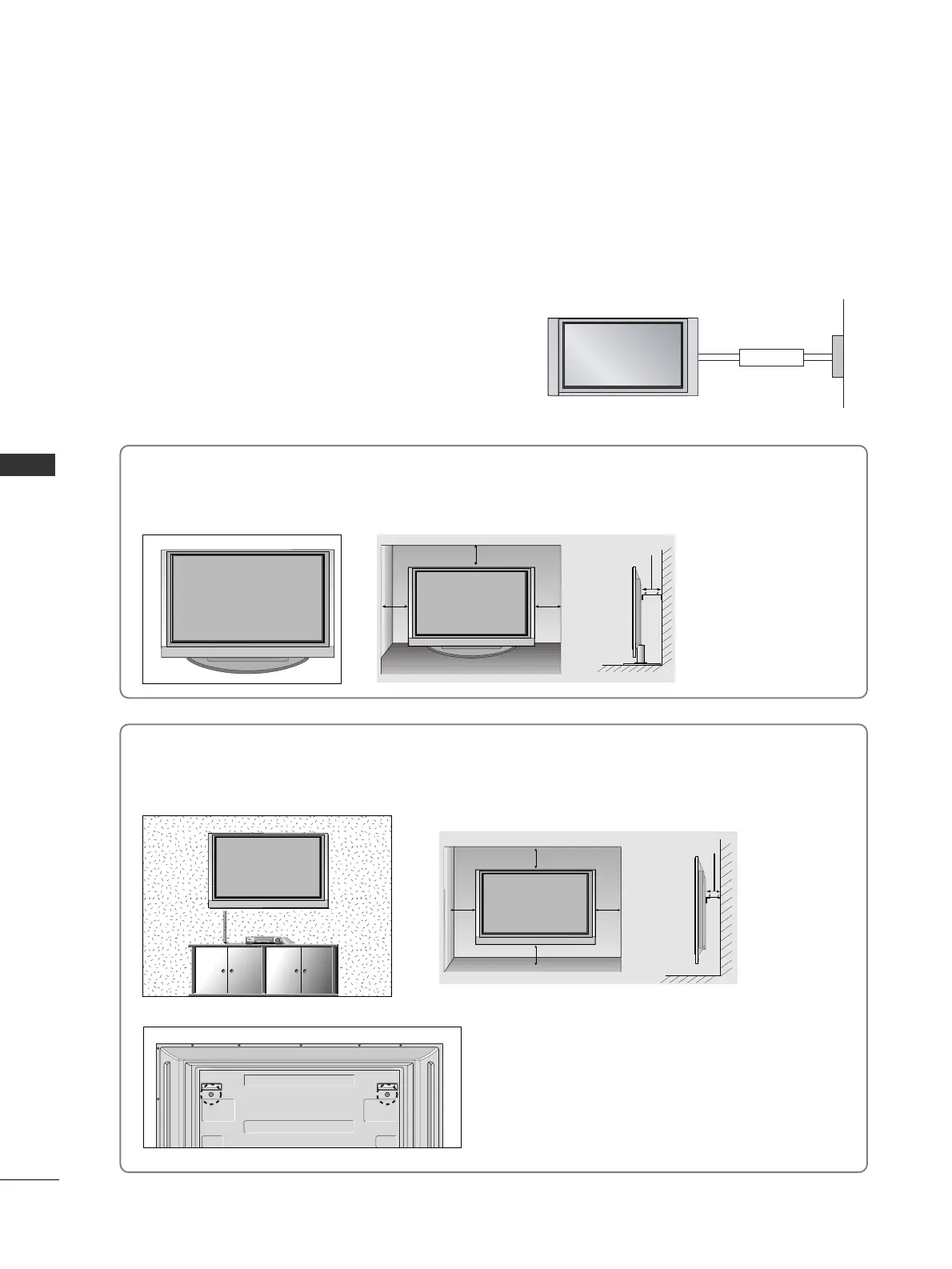

For proper ventilation, allow a clearance of 4" on each side and from the wall.
Wall Mount: Horizontal installation
For proper ventilation, allow a clearance of 4" on each side and from the wall. Detailed installation instruc-
tions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.
GGRROOUUNNDDIINNGG
Ensure that you connect the earth ground wire to prevent
possible electric shock. If grounding methods are not possi-
ble, have a qualified electrician install a separate circuit break-
er. Do not try to ground the unit by connecting it to tele-
phone wires, lightening rods, or gas pipes.
Power
Supply
Short-circuit
Breaker
■
The TV can be installed in various ways such as on a wall, or on a desktop etc.
■
The TV is designed to be mounted horizontally.
<<OOnnllyy 4422PPCC11RR
**
sseerriieess>>
Remove two screws of the backside of the set before
installing the wall mounting bracket.
INSTALLATION
4 inches
4 inches4 inches
4 inches
4 inches
4 inches
4 inches4 inches
4 inches
