ANTENNA CONNECTION
■
It is recommended that 42PC1RH / 50PC1RH model only be used at an altitude of less than 6561 feet (2000m)
to get the best quality picture and sound.
■
To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
■

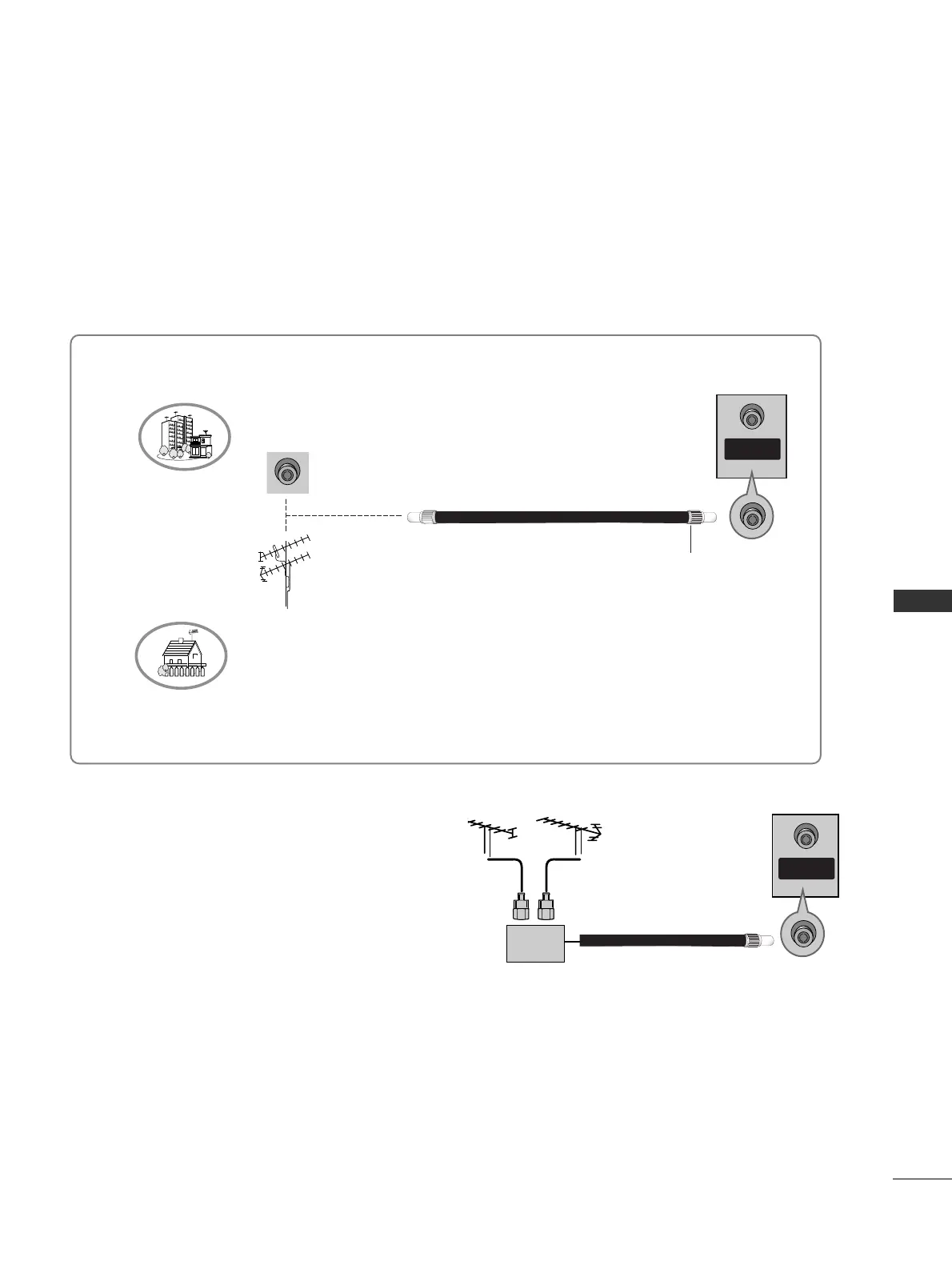

For optimum picture quality, adjust antenna direction.
■
An antenna cable and converter are not supplied.
■
In poor signal areas, to get better picture quality,
install a signal amplifier to the antenna as shown to
the right.
■
If signal needs to be split for two TVs, use an antenna
signal splitter for connection.
SSiiggnnaall
AAmmpplliiffiieerr
UHF
VHF
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor Antenna
Wall Antenna Socket
VHF Antenna
UHF Antenna
RF Coaxial Wire (75 ohm)
Turn clockwise to tighten.
