If both S-Video and VIDEO sockets have been connected to the S-VHS VCR simultaneousiy.
only the S-Video can be received.
1
2

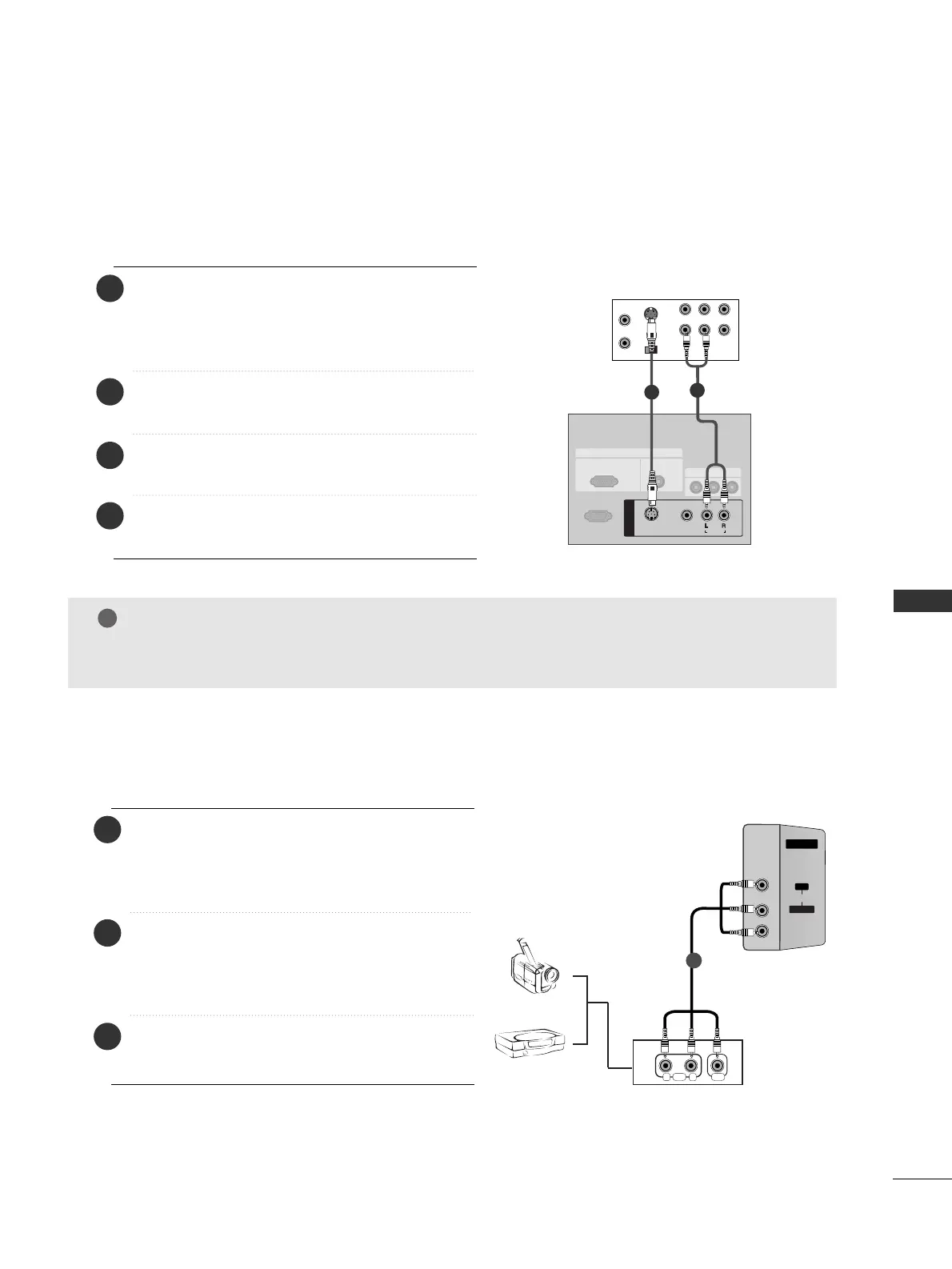

EXTERNAL EQUIPMENT CONNECTIONS
Camcorder
Video Game Set
1
Connect the S-VIDEO output of the VCR to the
SS--VVIIDDEEOO
input on the set. The picture quality is
improved; compared to normal composite
(RCA cable) input.
Connect the audio outputs of the VCR to the
AAUUDDIIOO
input jacks on the set.
Insert a video tape into the VCR and press PLAY on
the VCR. (Refer to the VCR owner’s manual.)
Select
AAVV11
input source with using the
IINNPPUUTT
button on the remote control.
1
2
3
4
When connecting with an S-Video cable
Connect the
AAUUDDIIOO
/
VVIIDDEEOO
jacks between
TV and external equipment. Match the jack colors
(Video = yellow, Audio Left = white, and Audio
Right = red).
Select
AAVV22
input source with using the
IINNPPUUTT
button on the remote control.
- If connected to
AAVV IINN11
input, select
AAVV11
input
source.
Operate the corresponding external equipment.
Refer to external equipment operating guide.
1
2
3
