Checking order

1, 2. Check IR cable condition between IR & Main board.

3. Check the st-by 3.3V on the terminal 6.

4. When checking the Pre-Amp when the power is in ON condition, it is normal when the Analog

Tester needle moves slowly, and defective when it does not move at all.

Standard Repair Process Detail Technical Manual

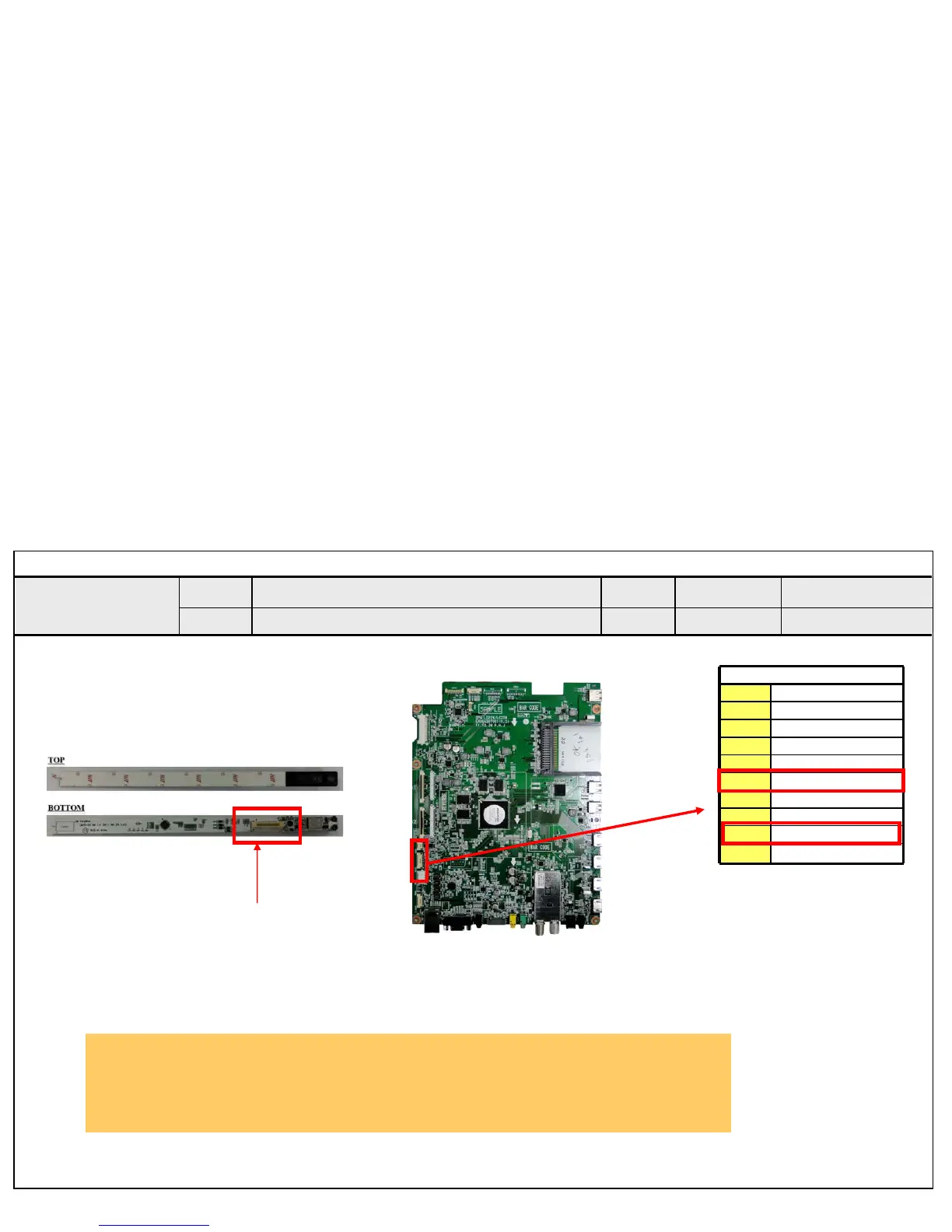

Remote controller operation checking method

D. Function error_ No response in remote controller,

key error

A27

Established

date

Revised

date

Error

symptom

Content

LCD TV

P4102

SCL

SDA

GND

KEY1

KEY2

St 3.5V

7 GND

8 RED_LED

9 IR

10 GND

①

②

③

④

2010. 12 .14

Only for training and service purposes

LGE Internal Use Only
