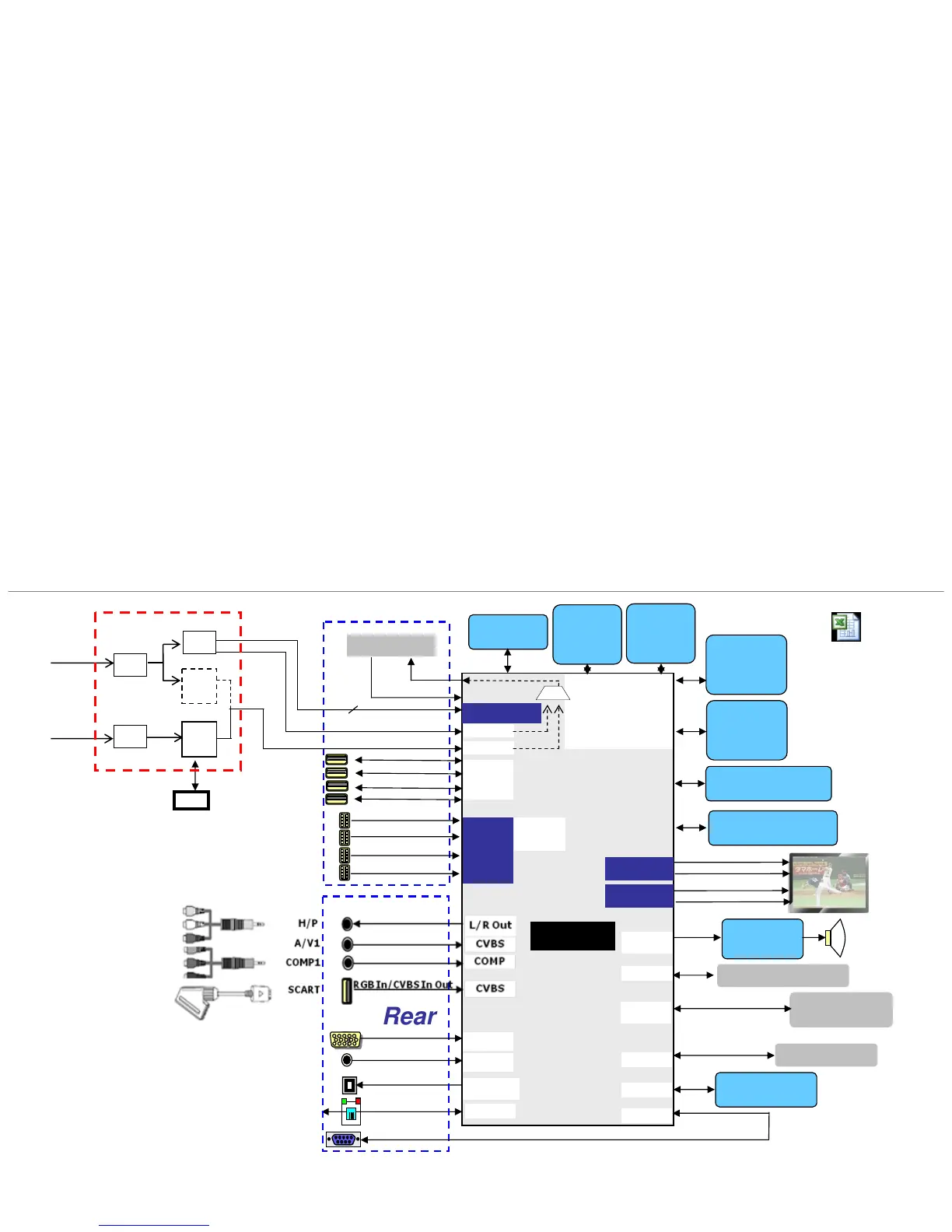

MTK5369 Block Diagram( LM76 )
L/R In
SPDIF OUT
USB
Audio
AMP
(NTP7500
or STA)
I2S Out
MTK
CI slot
CI slot
P_TS
CVBS
P_TS
T/C Demod
IF(+/-)
USB1
RS-232C
PC-RGB
PC-AUDIO
OPTIC
LAN
SYSTEM
DDR3 X
1600 X 16
(2Gb)
HDMI1
HDMI2
HDMI3
Side
Rear
RGB,H/V
Ethernet
CVBS
UART
SYSTEM EEPROM X 1
(256Kb)
HDMI
MUX
(HDCP
EEPROM)
M-Remote
Module
Air/
Cable
TUNER
(T/C)
TUNER
(S2)
DIGITAL
DEMOD
(T/C)
DVB-S
ANALOG
DEMOD
DIGITAL
DEMOD
(S2)
TS_S/P
LNB
USB2
USB3
HDMI4
LVDS
41P
51P
eMMC X 1
(4GB)
USB_WIFI
SYSTEM
DDR3 X
1600 X 16
(2Gb)
DDR
CONTROLER A/B
SPI
LOCAL DIMMING
I2C
Sub Micom
(RENESASA)
IR
Remote Control
SYSTEM
DDR3 X
1600 X 16
(2Gb)
SYSTEM
DDR3 X
1600 X 16
(2Gb)
UART
P_TS
Power load
EPI
50P
50P
X_TAL
27MHz
Copyright © 2012 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
