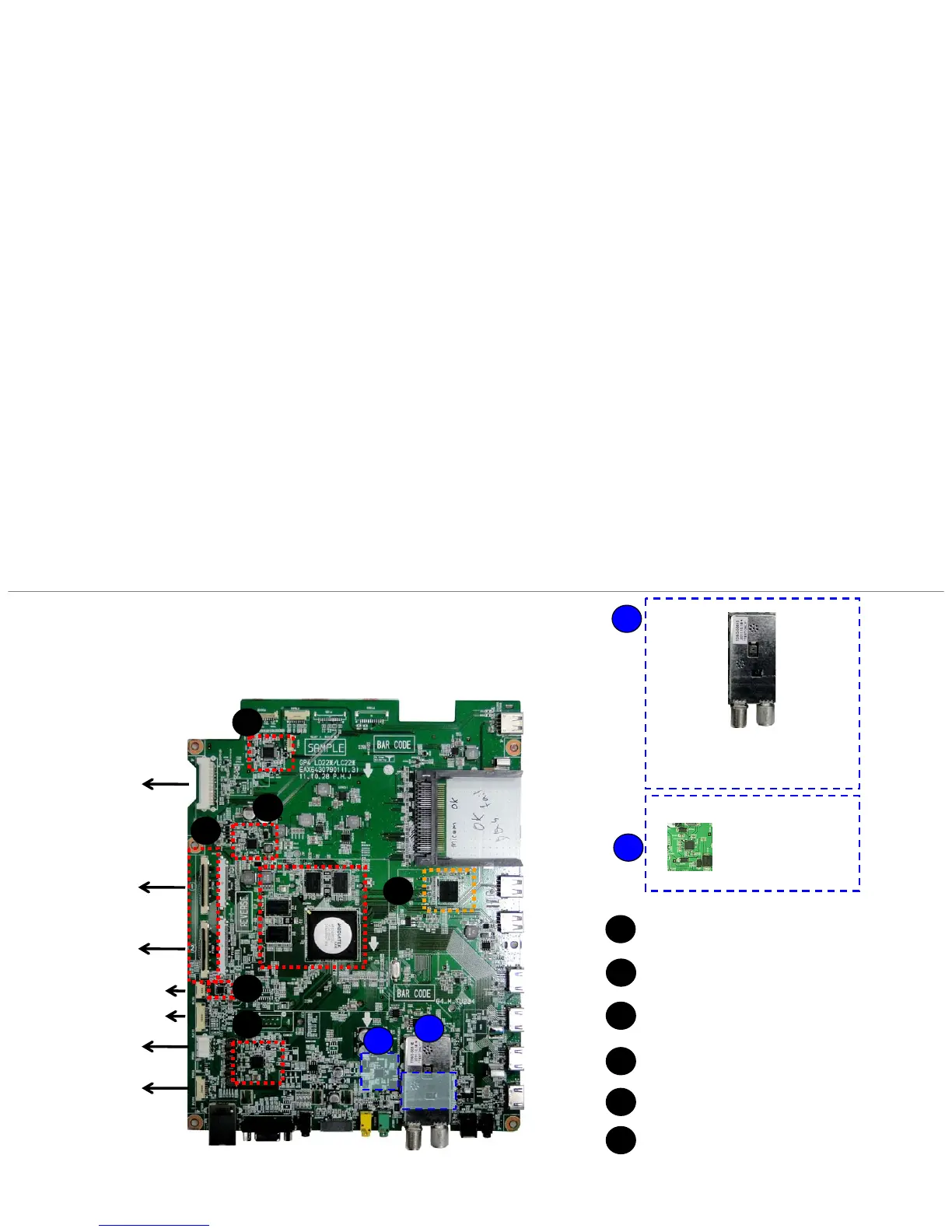

Main PCB for Broadband
Main + TCON all in one
To PSU
1
2
6
4
1
Main processor, DDR Memory
eMMC Memory
2
3
4
Micom for Key/IR sensing
PMIC
Audio AMP (10W+10W)
xxLM760S-ZB
Soft touch +IR
Front Spk
To module
5
5
EPI Wafer
G/S
model
2
1
LNB IC
Only G/S model
1
2
Chassis : LD22E
PCB P/No : EAX64307905
3
6
Level shifter
WIFI
RF Assy
Copyright © 2012 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
