LG 47LM620T User Manual

D. General Function Problem
Remote control & Local switch checking
Y
N

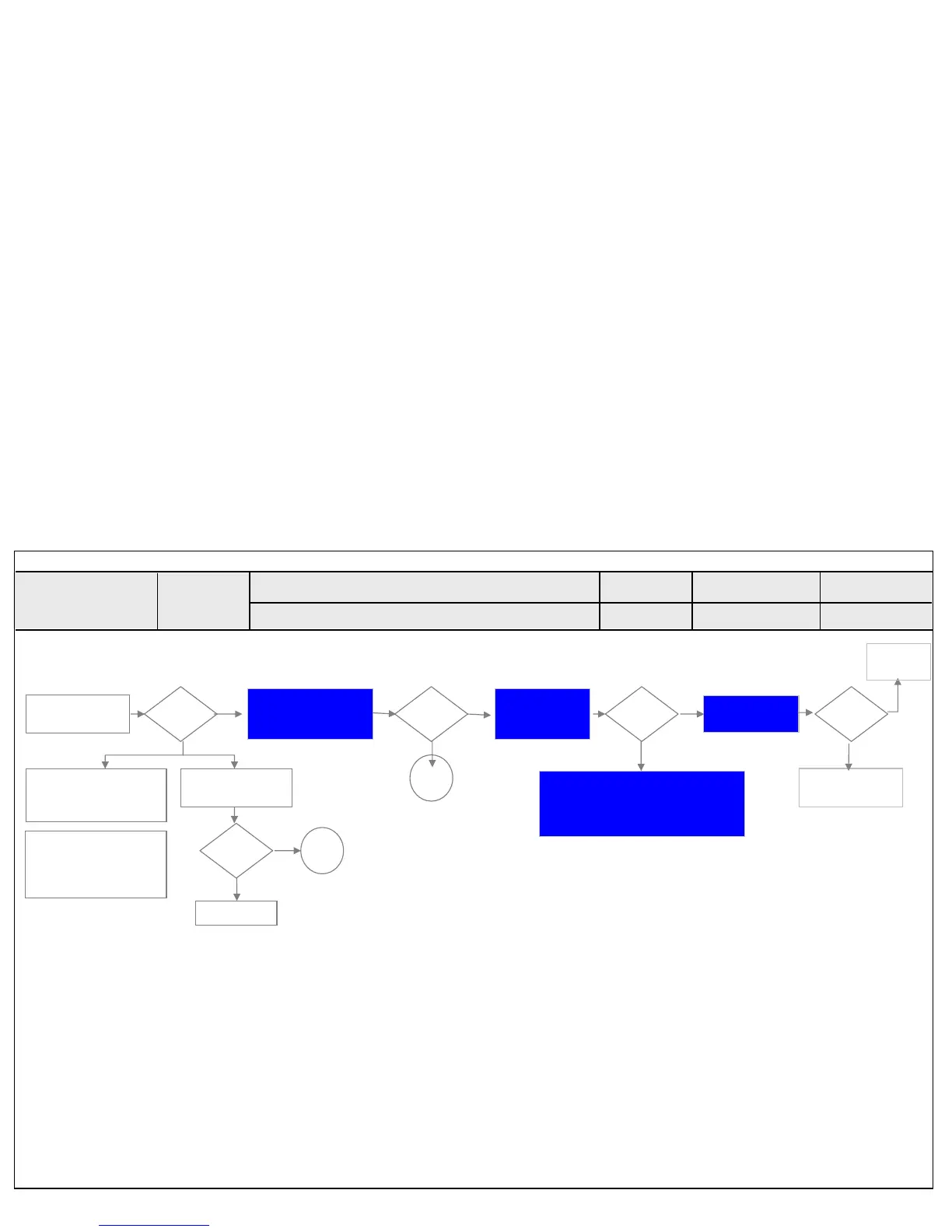

1. Remote control(R/C) operating error
Check R/C itself
Operation
Normal
operating?
Normal
operating?
Y
Close
Replace R/C
If R/C operate,
Explain the customer
cause is interference
from light in room.
Check R/C Operating
When turn off light
in room
Check & Replace
Baterry of R/C
Check & Repair
Cable connection
Connector solder
Normal
operating?
Check B+ 3.5V
On Main B/D
☞A27
Normal
Voltage?
Close
N
N
Check 3.5v on Power B/D
Replace Power B/D or
Replace Main B/D
(Power B/D don’t have problem)
☞A4
Check IR
Output signal
Normal
Signal?
N
Y
Repair/Replace
IR B/D
N
☞A27
Replace
Main B/D
Y
☞A27
Standard Repair Process
Established
date
Revised date
10/13
LCD TV
Error
symptom
2010. 12 .14
Copyright © 2012 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
